XW8003W BTCINO SMARTHER AC WNET. WHITE SUP
XW8003W
BTICINO
SMARTHER AC WNET. WHITE SUP

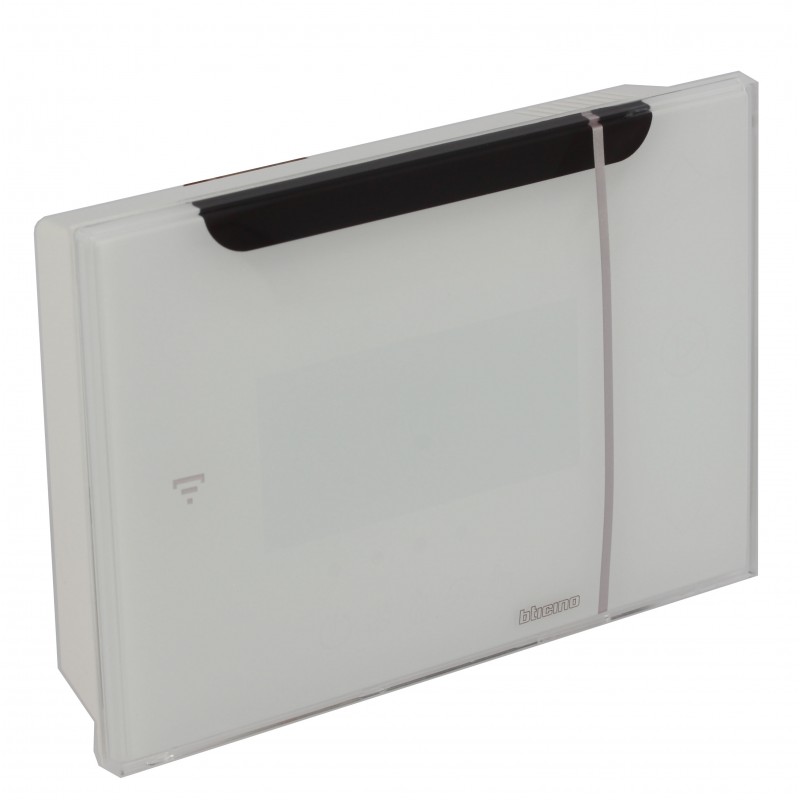

SmartherA C w/Netatmo connected thermostat - surface white color
Stats, switches and controllers > Smart thermostat
Home > BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲
For surface installation, white color. Power supply from 110 to 240 VAC, 50/60 Hz; 2W maximum absorption; Maximum cable cross-section: 1x1.5mm²; Operating temperature from 5 to 40°C, Temperature set point 5°C ÷ 40°C; 0.5°C rise; 1-contact output in 5 (2)A potential-free switching. To be completed with the IR repeater for splits (ref. 3460IR) or with the HVAC actuator for fan coil (ref. 048910)
| Type of regulation on/off | Yes |
|---|---|
| Communication Protocol | Linked to the brand |
| Supply Current Type | 230 V |
| Connection | Three/four threads |
| With receiver | No |
| Measuring range | 0-40 °C |
| External sensor | No |
| With thermal feedback | No |
| Dimming Feature | PID |
| Adaptive (self-learning) | Yes |
| Suitable for heating | Yes |
| Number of outlets for heating | 0 |
| Suitable for refrigeration | Yes |
| Number of outlets for cooling | 0 |
| Ventilation | Yes |
| Number of ventilation outlets | 0 |
| Differential value | 0.1-1 K |
| Adjustable difference | Yes |
| Sensor Sensor Type | Other |
| Readable temperature | Yes |
| With screen | Yes |
| Watch Type | Weekly clock |
| Watch model | Digital |
| Overtime switch | No |
| Optimisation | No |
| With sanitary water circuit | No |
| Operation | Button |
| Suitable for underfloor heating control | No |
| Suitable for district heating control | Yes |
| Remote operation possible | Yes |
| Compatible IFTTT | No |
| With presence detection | No |
| Weather-dependent regulation | No |
| Number of switching programs | 10 |
|---|---|
| Contact Style | Exchange Contact (NA/NC) |
| Max. contact voltage | 240 V |
| Max. contact capacity | 5 A |
| Protection Class (IP) | IP20 |
| Colour | White |
| RAL number | 9003 |
| Width | 126 mm |
| Depth | 28.1 mm |
| Height | 87 mm |
| Temperature Control Class | IV |
| Standby power consumption | 2 W |
| Impact resistance | Not applicable |
| Operating Temperature | 5-40 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Standby consumption | 9 mA |
| Halogen-free | Yes |
| Type of mounting | Surface mounted (plaster) |
| Contains battery and/or accumulator | No |
| Connected Object | Yes |
| Method of operation | Wifi network, Zigbee |
| App download platform | App Store, Google Play Store |
| With voice command | Yes |
| Programmable | Yes |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | Yes |
| Supported voice assistants | Amazon Alexa, Google Assistant, Apple Siri |
| Product usage function | Thermal comfort management |
| App Name | Home + Control |
| Programming medium | Smartphone apps |
| Software update duration (years) | 3 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 87 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Operation (EF002147) | Button |
| Overtime switch (EF020909) | No |
| Suitable for floor heating control (EF011039) | No |
| Connection (EF000443) | Three-four-wire |
| Number of ventilation outputs (EF011510) | 0 |
| Number of switching programmes (EF021363) | 10 |
| Optimisation (EF021362) | No |
| Differential value (EF022691) | 0.1 K |
| Temperature readable (EF021360) | Yes |
| Type of clock (EF005371) | Week clock |
| Control characteristic (EF020644) | PID |
| External sensor (EF023999) | No |
| Weather-dependent control system (EF020646) | No |
| Clock model (EF020684) | Digital |
| With receiver (EF020643) | No |
| Standby power consumption (solstandby) (EF010794) | 2 W |
| Class of the temperature control (EF010595) | IV |
| With display (EF000458) | Yes |
| RAL-number (EF000116) | 9003 |
| Type of power supply (EF001469) | 230 V |
| Communications protocol (EF005669) | Brand-dependent |
| With presence perception (EF011042) | No |
| Suitable for district heating control (EF011040) | Yes |
| With thermal feedback (EF000531) | No |
| Contact type (EF001587) | Change-over contact (NO/NC) |
| Max. contact load (EF022541) | 5 A |
| Number of heater outputs (EF020681) | 0 |
| With tap water circuit (EF020680) | No |
| Max. contact voltage (EF020286) | 240 V |
| Number of cooler outputs (EF020682) | 0 |
| Sensor/feeler type (EF006254) | Other |
| Adjustable differential (EF024001) | Yes |
| Remote operation possible (EF003361) | Yes |
| Ventilation (EF011509) | Yes |
| Regulation type on/off (EF011927) | Yes |
| IFTTT support available (EF011072) | No |
| Suitable for cooling (EF024798) | Yes |
| Depth (EF000049) | 28.1 mm |
| Colour (EF000007) | White |
| Adaptive (self-learning) (EF004900) | Yes |
| Width (EF000008) | 126 mm |
| Measuring range (EF001836) | 0 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| XW8003W EN_XG8003.pdf | 307 Kbytes |
|
