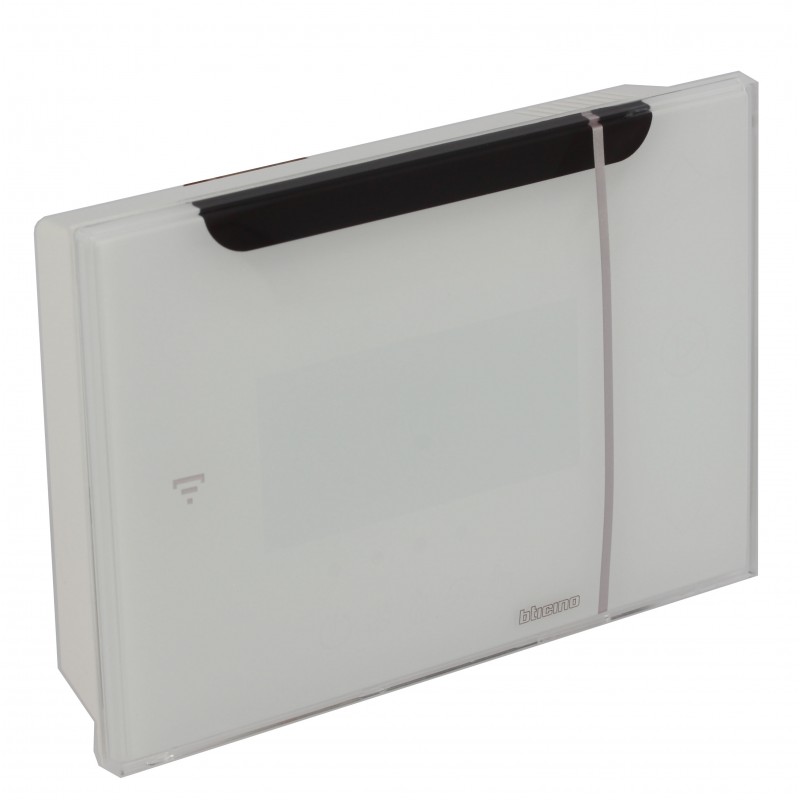

BTICINO XW8003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

XW8003 BTCINO SMARTHER AC WNET. EMP WHITE

Code: XW8003

Manufacturer: BTICINO

Description:

SMARTHER AC WNET. EMP WHITE
SmartherA C w/Netatmo connected thermostat - surface white color
Smarther AC w/Netatmo connected thermostat for embedding white color

Categories:

  • Stats, switches and controllers > Smart thermostat
  • BTICINO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 221,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

For surface installation, white color. Power supply from 110 to 240 VAC, 50/60 Hz; 2W maximum absorption; Maximum cable cross-section: 1x1.5mm²; Operating temperature from 5 to 40°C, Temperature set point 5°C ÷ 40°C; 0.5°C rise; 1-contact output in 5 (2)A potential-free switching. To be completed with the IR repeater for splits (ref. 3460IR) or with the HVAC actuator for fan coil (ref. 048910)
Type of regulation on/offYes
Communication ProtocolLinked to the brand
Supply Current Type230 V
ConnectionThree/four threads
With receiverNo
Measuring range0-40 °C
External sensorNo
With thermal feedbackNo
Dimming FeaturePID
Adaptive (self-learning)Yes
Suitable for heatingYes
Number of outlets for heating0
Suitable for refrigerationYes
Number of outlets for cooling0
VentilationYes
Number of ventilation outlets0
Differential value0.1-1 K
Adjustable differenceYes
Sensor Sensor TypeOther
Readable temperatureYes
With screenYes
Watch TypeWeekly clock
Watch modelDigital
Overtime switchNo
OptimisationNo
With sanitary water circuitNo
OperationButton
Suitable for underfloor heating controlNo
Suitable for district heating controlYes
Remote operation possibleYes
Compatible IFTTTNo
With presence detectionNo
Weather-dependent regulationNo
Number of switching programs10
Contact StyleExchange Contact (NA/NC)
Max. contact voltage240 V
Max. contact capacity5 A
Protection Class (IP)IP20
ColourWhite
RAL number9003
Width126 mm
Depth28.1 mm
Height87 mm
Temperature Control ClassIV
Standby power consumption2 W
Impact resistanceNot applicable
Operating Temperature5-40 °C
Storage temperature-10-70 °C
Type of voltageAC
Standby consumption9 mA
Halogen-freeYes
Type of mountingSurface mounted (plaster)
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationWifi network, Zigbee
App download platformApp Store, Google Play Store
With voice commandYes
ProgrammableYes
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxYes
Supported voice assistantsAmazon Alexa, Google Assistant, Apple Siri
Product usage functionThermal comfort management
App NameHome + Control
Programming mediumSmartphone apps
Software update duration (years)3

ETIM for XW8003 Stats, switches and controllers (EC003263)

Feature nameHeight (EF000040)
Feature value87 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameOperation (EF002147)
Feature valueButton
Feature nameOvertime switch (EF020909)
Feature valueNo
Feature nameSuitable for floor heating control (EF011039)
Feature valueNo
Feature nameConnection (EF000443)
Feature valueThree-four-wire
Feature nameNumber of ventilation outputs (EF011510)
Feature value0
Feature nameNumber of switching programmes (EF021363)
Feature value10
Feature nameOptimisation (EF021362)
Feature valueNo
Feature nameDifferential value (EF022691)
Feature value0.1 K
Feature nameTemperature readable (EF021360)
Feature valueYes
Feature nameType of clock (EF005371)
Feature valueWeek clock
Feature nameControl characteristic (EF020644)
Feature valuePID
Feature nameExternal sensor (EF023999)
Feature valueNo
Feature nameWeather-dependent control system (EF020646)
Feature valueNo
Feature nameClock model (EF020684)
Feature valueDigital
Feature nameWith receiver (EF020643)
Feature valueNo
Feature nameStandby power consumption (solstandby) (EF010794)
Feature value2 W
Feature nameClass of the temperature control (EF010595)
Feature valueIV
Feature nameWith display (EF000458)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameType of power supply (EF001469)
Feature value230 V
Feature nameCommunications protocol (EF005669)
Feature valueBrand-dependent
Feature nameWith presence perception (EF011042)
Feature valueNo
Feature nameSuitable for district heating control (EF011040)
Feature valueYes
Feature nameWith thermal feedback (EF000531)
Feature valueNo
Feature nameContact type (EF001587)
Feature valueChange-over contact (NO/NC)
Feature nameMax. contact load (EF022541)
Feature value5 A
Feature nameNumber of heater outputs (EF020681)
Feature value0
Feature nameWith tap water circuit (EF020680)
Feature valueNo
Feature nameMax. contact voltage (EF020286)
Feature value240 V
Feature nameNumber of cooler outputs (EF020682)
Feature value0
Feature nameSensor/feeler type (EF006254)
Feature valueOther
Feature nameAdjustable differential (EF024001)
Feature valueYes
Feature nameRemote operation possible (EF003361)
Feature valueYes
Feature nameVentilation (EF011509)
Feature valueYes
Feature nameRegulation type on/off (EF011927)
Feature valueYes
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameSuitable for cooling (EF024798)
Feature valueYes
Feature nameDepth (EF000049)
Feature value12.6 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameAdaptive (self-learning) (EF004900)
Feature valueYes
Feature nameWidth (EF000008)
Feature value126 mm
Feature nameMeasuring range (EF001836)
Feature value0 °C
