XW8002 BTCINO SMARTHER W NETATMO EMP WHITE
XW8002
BTICINO
SMARTHER W NETATMO EMP WHITE

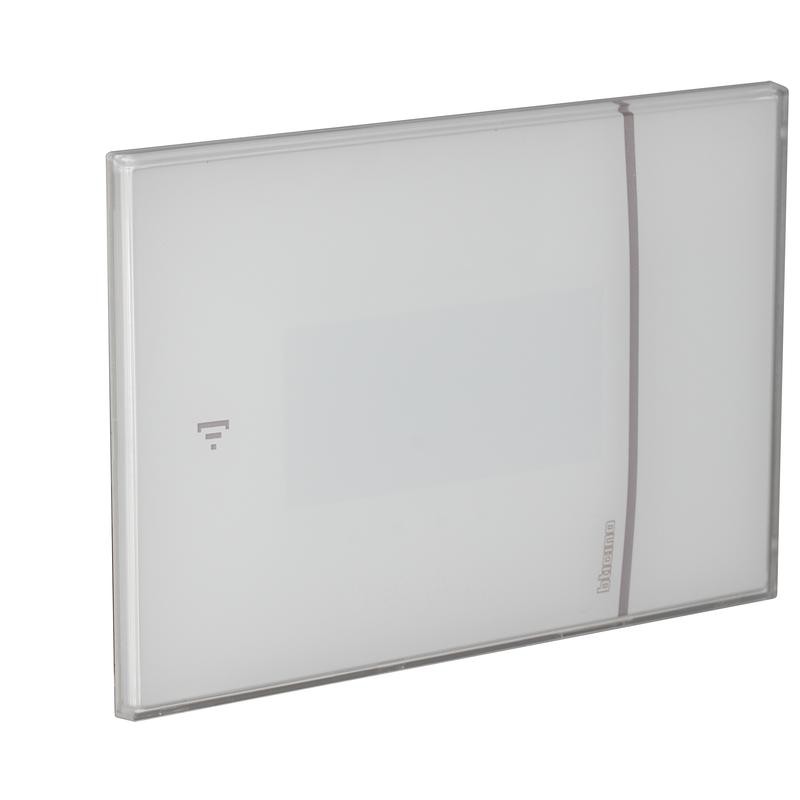

Smarther with Netatmo connected thermostat - for recessing white color
Smarther w/Netatmo connected thermostat for embedding white color
Stats, switches and controllers > Smart thermostat
Home > BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲Product features
For recessed installation, white color. Power supply from 110 to 240 Hcv, 50/60 Hz; Maximum absorption of 2 W; Maximum cable section 1 x 1.5 mm2; Operating temperature from 5 to 40 °C, Setpoint temperature 5 °C ÷ 40 °C; Increase of 0.5 °C; 1-contact output in 5(2)A potential-free switching.General features
The Smarther with Netatmo connected thermostat, together with the Home + Control Legrand app, is a device that allows you to adjust and control the temperature in the rooms accurately and accurately; All programming and most functions are carried out in a simple and intuitive way through this App.Thanks to its Wi-Fi connection, Smarther can be programmed and controlled remotely; it can also show the temperature and humidity measured in the room. The temperature level can be set locally for manual operation and Boost mode can be activated. The Boost function forces the system to power on for a limited time (30, 60 or 90 minutes) regardless of the measured and programmed temperature. A different temperature can also be set in each room of the house to offer maximum comfort, thanks to its compatibility with Netatmo's smart radiator valves. Smarther with Netatmo can also be controlled with Google Voice Assistants, Amazon Alexa, and Apple Home Kit.| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 87 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Operation (EF002147) | Button |
| Overtime switch (EF020909) | No |
| Suitable for floor heating control (EF011039) | Yes |
| Connection (EF000443) | Three-four-wire |
| Number of ventilation outputs (EF011510) | 0 |
| Number of switching programmes (EF021363) | 10 |
| Optimisation (EF021362) | No |
| Differential value (EF022691) | 0.1 K |
| Temperature readable (EF021360) | Yes |
| Type of clock (EF005371) | Week clock |
| Control characteristic (EF020644) | PID |
| External sensor (EF023999) | No |
| Weather-dependent control system (EF020646) | No |
| Clock model (EF020684) | Digital |
| With receiver (EF020643) | No |
| Standby power consumption (solstandby) (EF010794) | 2 W |
| Class of the temperature control (EF010595) | IV |
| With display (EF000458) | Yes |
| RAL-number (EF000116) | 9003 |
| Type of power supply (EF001469) | 230 V |
| Communications protocol (EF005669) | Brand-dependent |
| With presence perception (EF011042) | No |
| Suitable for district heating control (EF011040) | Yes |
| With thermal feedback (EF000531) | No |
| Contact type (EF001587) | Change-over contact (NO/NC) |
| Max. contact load (EF022541) | 5 A |
| Number of heater outputs (EF020681) | 1 |
| With tap water circuit (EF020680) | No |
| Max. contact voltage (EF020286) | 240 V |
| Number of cooler outputs (EF020682) | 1 |
| Sensor/feeler type (EF006254) | Other |
| Adjustable differential (EF024001) | Yes |
| Remote operation possible (EF003361) | Yes |
| Ventilation (EF011509) | No |
| Regulation type on/off (EF011927) | Yes |
| IFTTT support available (EF011072) | No |
| Depth (EF000049) | 12.6 mm |
| Colour (EF000007) | White |
| Adaptive (self-learning) (EF004900) | Yes |
| Width (EF000008) | 126 mm |
| Measuring range (EF001836) | 0 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| XW8002 EN_XM8002.pdf | 419 Kbytes |
|
