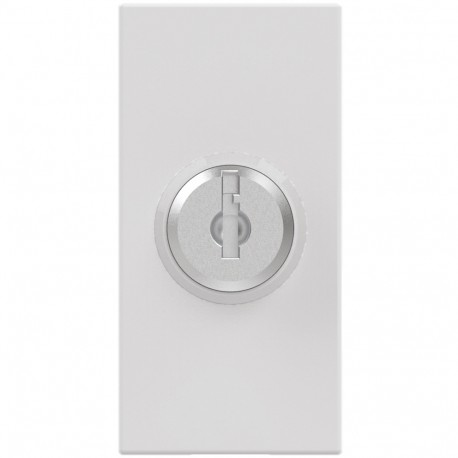

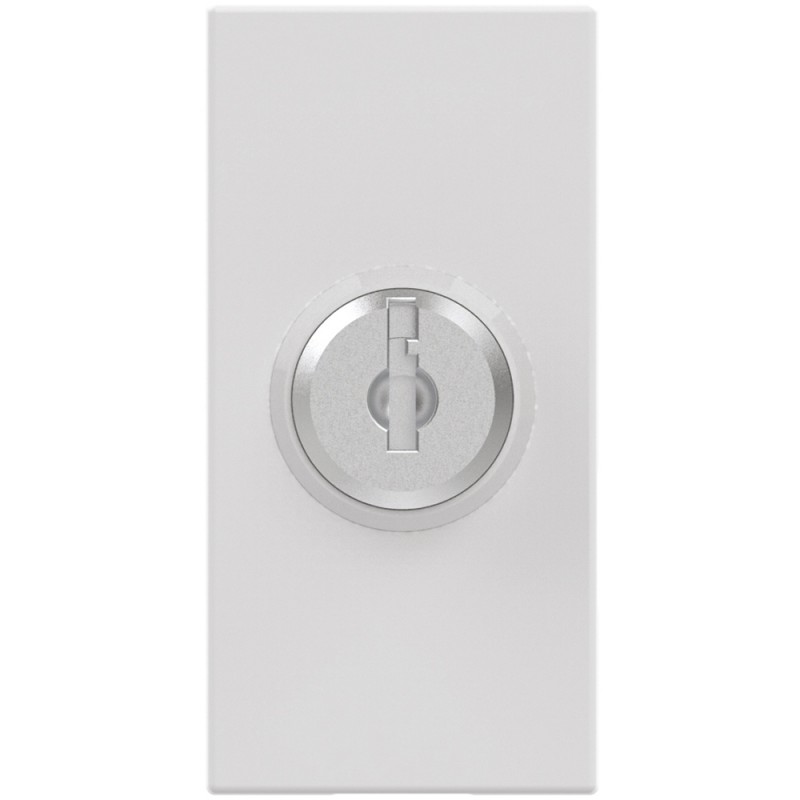

RW4022 BTCINO CL-CONM 2P 10A WITH BLAN WRENCH
RW4022
BTICINO
CL-CONM 2P 10A WITH BLAN WRENCH
Classia key switch - different keys - 1 module - White
Domestic switching devices > Installation switch
Home > BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Overview
2-way switch of 10A from the Classia series that works with a key. The key is removable in the ON and OFF positions.
description
Classia - other mechanisms.specifications
| Cabling System | Bidirectional switch |
|---|---|
| Type of operation | Key |
| Type of mounting | Module for system interruption program, Recessed mounted (plaster) |
| Number of modules (in case of modular design) | 1 |
| Push Button Switch | No |
| Number of rocker arms | 1 |
| Attachment Type | Other |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | White |
| RAL number (similar) | 9003 |
| Switching element color | aluminium |
| Label space/print surface | No |
| Lighting | No |
| Lighting function | Other |
| Lighting Type | Other |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | IK04 |
| Nominal Voltage | 250 V |
| Nominal current | 10 A |
|---|---|
| Switching current for fluorescent lamps | 10 AX |
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 22 mm |
| Device height | 45 mm |
| Device Depth | 44 mm |
| Installation Depth | 32 mm |
| Min. depth of the recessed box | 42 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Complies with UK Building Regulations, Part M | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF009419) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Type of fastening (EF002442) | Other |
| Wiring system (EF002960) | Two-way switch |
| Nominal voltage (EF000002) | 250 V |
| Push button switch (EF003895) | No |
| Number of modules (module system) (EF009573) | 1 |
| Compatible with Apple HomeKit (EF014925) | No |
| Colour of switch operator (EF015518) | Aluminium |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Heating switch (EF016279) | No |
| Min. depth of built-in installation box (EF012278) | 42 mm |
| Type of lighting (EF001401) | Other |
| Surface protection (EF000139) | Untreated |
| Switching current for fluorescent lamps (EF003888) | 10 AX |
| Built-in depth (EF000218) | 32 mm |
| With mounting plate (EF000118) | No |
| Compliant with UK Building Regulations Part M (EFUK0017) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Washing machine switch (EF006316) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 44 mm |
| Lighting (EF000134) | No |
| Function lighting (EF009420) | Other |
| Feedback-signal contact (EF001181) | No |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 22 mm |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | White |
| Method of operation (EF000006) | Key |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| RW4022 EN_RA4022.pdf | 771 Kbytes |
|
