BTICINORG4037N BTCINO CL-PULS DOUBLE LOCK 10A 1M DARK

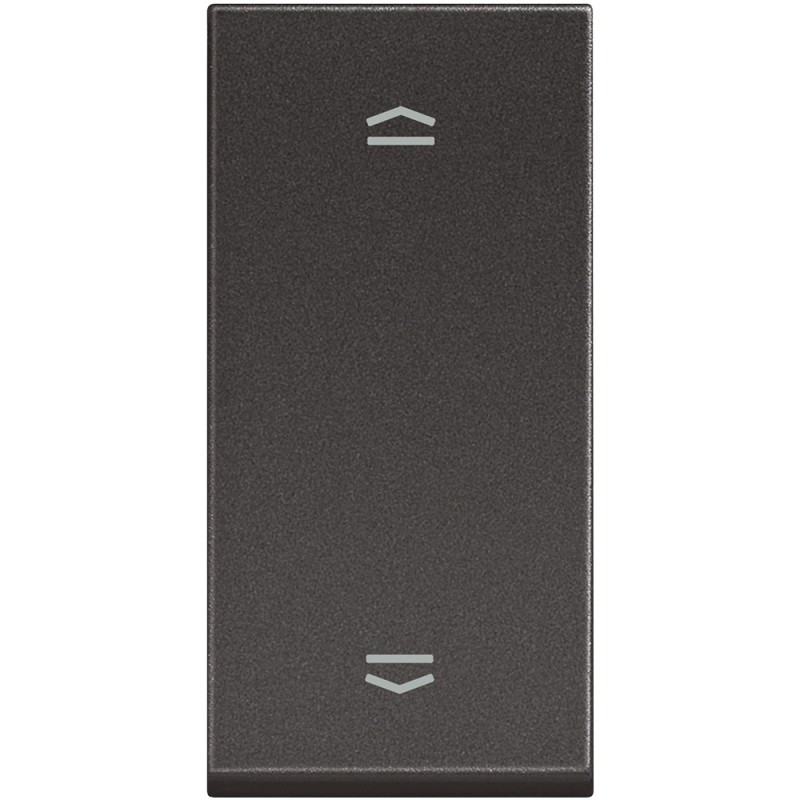

BTICINO RG4037N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RG4037N BTCINO CL-PULS DOUBLE LOCK 10A 1M DARK

Code: RG4037N

Manufacturer: BTICINO

Description:

CL-PULS DOUBLE LOCK 10A 1M DARK
Double push button for Classia blinds - Black - 1 module
Double push button for Classia blinds - Black - 1mod

Categories:

  • Domestic switching devices > Venetian blind switch/-push button
  • BTICINO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 47,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Shutter mechanisms - Double push button with mechanical lock - 10 A-250 Vac - While holding down, the maneuver is activated - 1 module - To be combined with support and decorative plate - Black.

Product features
  • 10 A, 250 Va.c. 1P(NA) 1 module
  • Easy installation and removal thanks to the new generation plastic attachments on the bracket
  • Bracket with screws and plate
Recommendations / Restrictions
  • For indoor use only

Highlights

Advantages in installation
  • Improved installation thanks to new generation plastic hooks
Advantages in use
  • With child protection for added safety
Specific features
  • With Classia aesthetics

specifications

For Venetian blindsYes
For blindsYes
For awningsNo
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Model1-pole push button
Number of poles1
Type of operationSeesaw
With electric lockNo
With mechanical lockNo
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Attachment TypeLock in position
Connection MethodScrew-on terminal
ColourBlack
RAL number (similar)9011
TransparentNo
Label Space/Print AreaNo
Suitable for protection grade (IP)IP20
Nominal current10 A
Nominal Voltage250 V
Number of buttons1
Number of modules (in case of modular design)1
Device width22 mm
Device height45 mm
Device Depth36.5 mm
Installation Depth26.5 mm
Min. depth of the recessed box36.5 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Lighting TypeNot included
Display of markings on the connection terminalsNo
Antibacterial treatmentNo
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Contains battery and/or accumulatorNo

ETIM for RG4037N Domestic wiring accessories and controls (EC000044)

Feature nameMechanical controllable (EF005993)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value1
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameWith mechanical locking (EF016711)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value36.5 mm
Feature nameWith electrical locking (EF016710)
Feature valueNo
Feature nameFor roller blinds (EF002712)
Feature valueYes
Feature nameFor awnings (EF002713)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameBuilt-in depth (EF000218)
Feature value26.5 mm
Feature nameNumber of buttons (EF003144)
Feature value1
Feature nameRAL-number (similar) (EF003882)
Feature value9011
Feature nameModel (EF000010)
Feature value1-pole push button
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value36.5 mm
Feature nameElectronic controllable (EF006570)
Feature valueNo
Feature nameFor venetian blinds (EF016443)
Feature valueYes
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice width (EF008808)
Feature value22 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueBlack
Feature nameMethod of operation (EF000006)
Feature valueRocker

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE BTICINO EN
19 Mbytes
