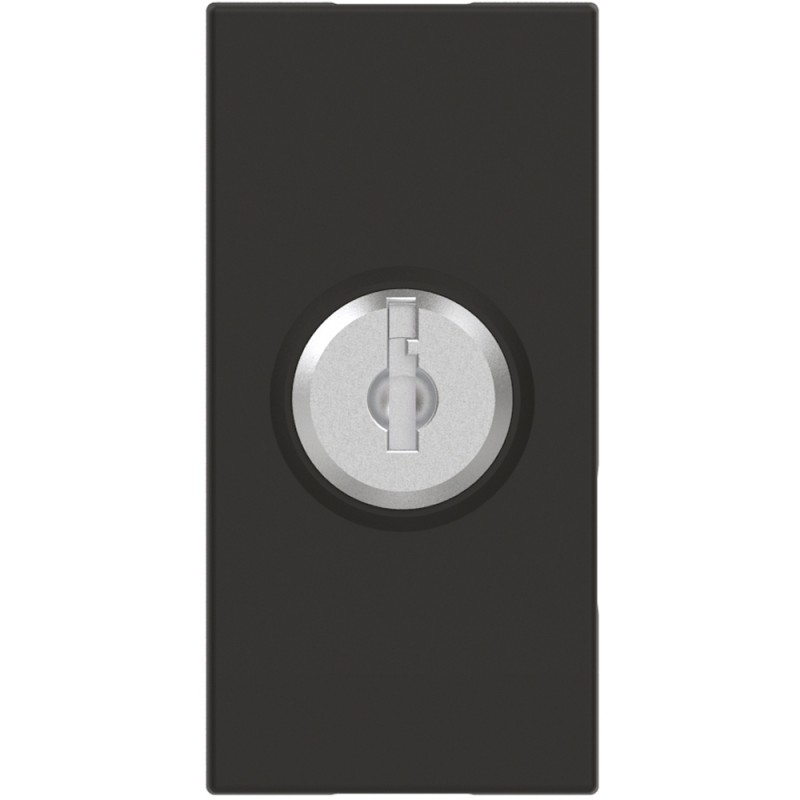

BTICINO RG4022 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RG4022 BTCINO CL-CONM 2P 10A WITH DARK WRENCH

Code: RG4022

Manufacturer: BTICINO

Description:

CL-CONM 2P 10A WITH DARK WRENCH
Classia key switch - different keys - 1 module - Dark
Classia key switch - different keys - 1mod - Dark

Categories:

  • Domestic switching devices > Installation switch
  • BTICINO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 132,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

2-way switch of 10A from the Classia series that works with a key. The key is removable in the ON and OFF positions.

description
Classia - other mechanisms.

specifications

Cabling SystemBidirectional switch
Type of operationKey
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Number of modules (in case of modular design)1
Push Button SwitchNo
Number of rocker arms1
Attachment TypeOther
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourBlack
RAL number (similar)9011
Switching element coloraluminium
Label space/print surfaceNo
LightingNo
Lighting functionOther
Lighting TypeOther
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodScrew-on terminal
Heating switchNo
Washing machine switchNo
Device width22 mm
Device height45 mm
Device Depth44 mm
Installation Depth32 mm
Min. depth of the recessed box42 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Complies with UK Building Regulations, Part MNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for RG4022 Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameWiring system (EF002960)
Feature valueTwo-way switch
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value1
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueAluminium
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value42 mm
Feature nameType of lighting (EF001401)
Feature valueOther
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value32 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameCompliant with UK Building Regulations Part M (EFUK0017)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9011
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value44 mm
Feature nameLighting (EF000134)
Feature valueNo
Feature nameFunction lighting (EF009420)
Feature valueOther
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value22 mm
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueBlack
Feature nameMethod of operation (EF000006)
Feature valueKey
Feature nameNumber of rockers (EF003816)
Feature value1
