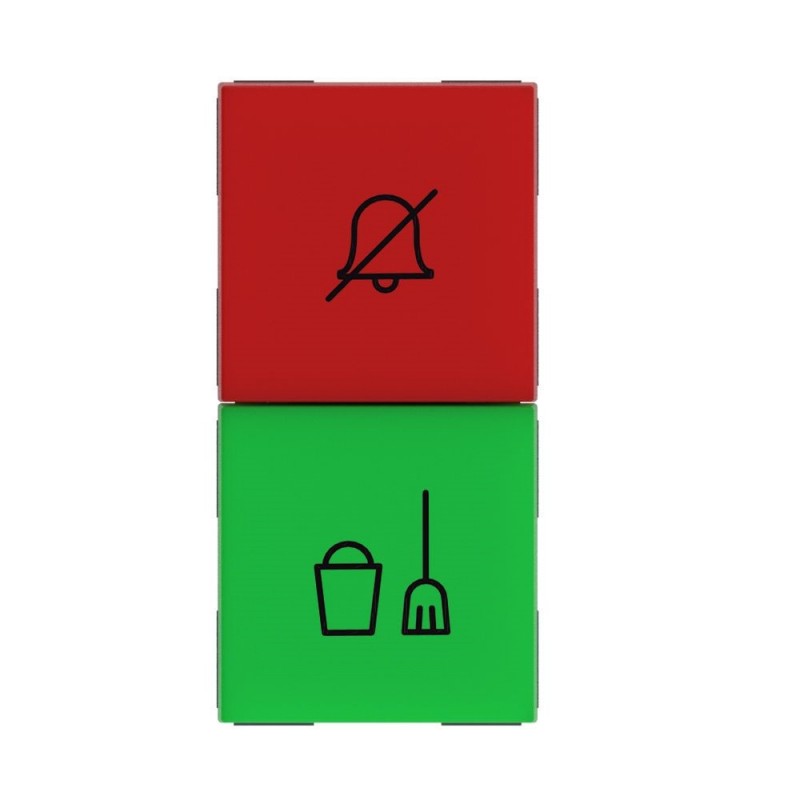

BTICINOR4373 BTCINO CL-DIFFUS HOTEL 1M RED/GREEN
BTICINO R4373 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

R4373 BTCINO CL-DIFFUS HOTEL 1M RED/GREEN

Code: R4373

Manufacturer: BTICINO

Description:

CL-DIFFUS HOTEL 1M RED/GREEN
Classia Exterior Door Marker - Red/Green - 1 module
Classia Exterior Door Marker - Red/Green - 1mod

Categories:

  • Domestic switching devices > Information light signal for domestic switching devices
  • BTICINO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 63,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Hotel room mechanisms - Exterior door signaler with double optical signal: "Do not disturb" or "Clean the room" - Supplied with integrated LEDs - 1 module -To be combined with support and decorative plate - Red/Green.
Type of mountingOthers , Recessed mounted (plaster)
Number of modules (in case of modular design)1
Lamp holdernone
With light sourceYes
LampNon-interchangeable LED
With fixed symbol/printingYes
With interchangeable symbolNo
Can be used as a pushbuttonNo
Attachment TypeLock in position
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
ColourBlack
RAL number (similar)7015
TransparentNo
Lamp colorWhite
Suitable for protection grade (IP)IP20
Nominal Voltage230 V
Device width22.5 mm
Device height45 mm
Device Depth35 mm
Min. depth of the recessed box35 mm
Installation Depth25 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal current10-16 A
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Compliant with commissioning tests (1000 V)No
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Label Space/Print AreaNo

ETIM for R4373 Domestic wiring accessories and controls (EC000064)

Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameNumber of modules (module system) (EF009573)
Feature value1
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value35 mm
Feature nameColour light source (EF001402)
Feature valueWhite
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameWith fixed symbol/imprint (EF007949)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value7015
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value35 mm
Feature nameDevice width (EF008808)
Feature value22.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueOther
Feature nameApplication as button (EF003912)
Feature valueNo
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameColour (EF000007)
Feature valueBlack
Feature nameWith exchangeable symbol (EF006748)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
R4373 EN_R4373.pdf
431 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
