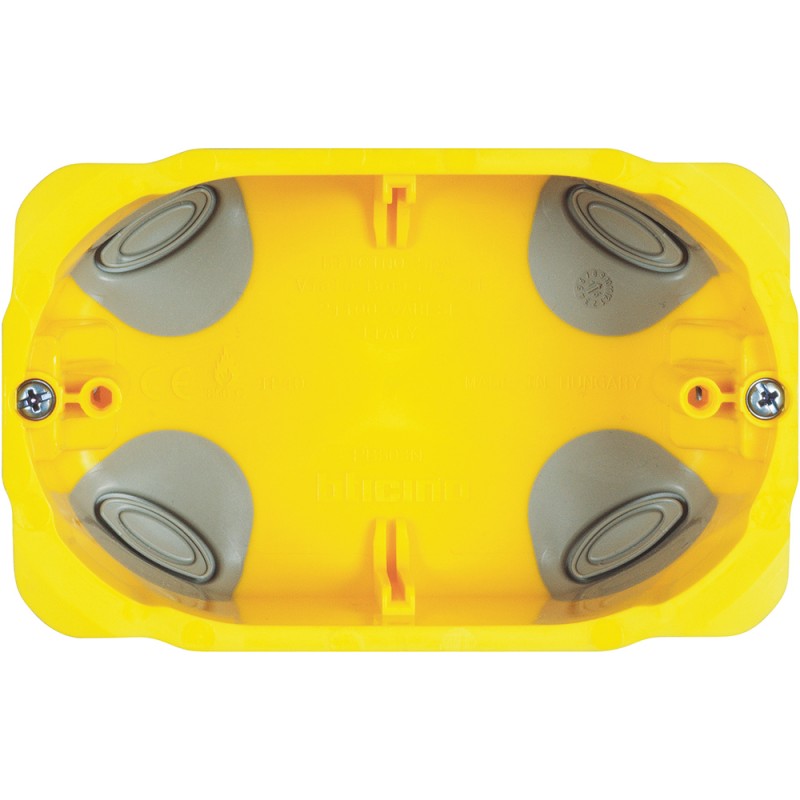

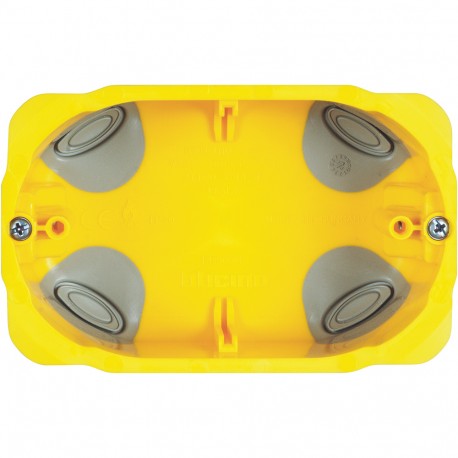

PB503N BTCINO BT BOX EMP HOLLOW 3MOD
PB503N
BTICINO
5
BT BOX EMP HOLLOW 3MOD
Boxes for walls with boards single and double for the installation of wiring devices
Recessed box for hollow partition. 3mod
Connection devices > Box/housing for built-in mounting in the wall/ceiling
INSTALLATION ACCESSORIES
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Often bought together
▲Best sellers
▲More info
▲Product features
septum hole - 3 modules - 109 x 68 dia. x 51 mmGeneral characteristics
Installation accessories - boxes| Feature Name | Feature Value |
|---|---|
| Number of inlets (EF003593) | 4 |
| For tube diameter (EF005496) | 20/25 mm |
| Inner depth (EF001131) | 50 mm |
| Pipe locking (EF005657) | No |
| Mounting method (EF000003) | Hollow wall |
| Depth (EF005457) | 52 mm |
| Sealable (EF001454) | No |
| Number of included spouts (EF009210) | 2 |
| Cover model (EF009212) | None |
| Number of non-adjustable device fixing lugs (EF017002) | 0 |
| Number of adjustable device fixing lugs (EF017003) | 2 |
| Inlet from the rear (EF005604) | Yes |
| Equipped with (EF000557) | None |
| Suitable for cable diameter (EF005466) | 1 mm |
| Shape (EF000051) | Rectangular |
| Clamp position fixed (EF007889) | No |
| Model (EF000010) | Single |
| Number of poles of the clamp (EF008016) | 0 |
| Transparent cover (EF011401) | No |
| With screws (EF005066) | Yes |
| Circuit integrity (EF001613) | None |
| Colour (EF000007) | Yellow |
| Construction type (EF000767) | Device connection box (round/square) |
| Width (EF000008) | 71 mm |
| Max. conductor cross section (EF004969) | 2.5 mm² |
| Cover attachment (EF004586) | Other |
| Air tight (EF005430) | Yes |
| Degree of protection (IP) (EF005474) | IP40 |
| Material (EF002169) | Plastic |
| Special application (EF006205) | None |
| With partition panel (EF007973) | No |
| Halogen free (EF000025) | No |
| With screening (EF005032) | No |
| Surface protection (EF000139) | Untreated |
| Couplable (EF001229) | No |
| Housing feed-through by step membrane (EF009208) | No |
| Housing feed-through by nozzle (EF009207) | Yes |
| Compliant with BS 4662 (EFUK0019) | No |
| Pipe locking optional (EF009209) | No |
| Provided with revolving ring (EF009204) | No |
| Diameter (EF000551) | 71 mm |
| Housing feed-through by seal membrane (EF009206) | Yes |
| Housing feed-through by break-out opening (EF009763) | No |
| Nozzle (EF008076) | None |
| Luminaire hook mounting (EF004902) | No |
| For number of electric fittings (EF004702) | 3 |
| Length (EF001438) | 110 mm |
| Mounting switching equipment (EF004508) | Screwing |
