BTICINOAUTONOMOUS LIGHTING MANAGEMENTNT4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M TECH

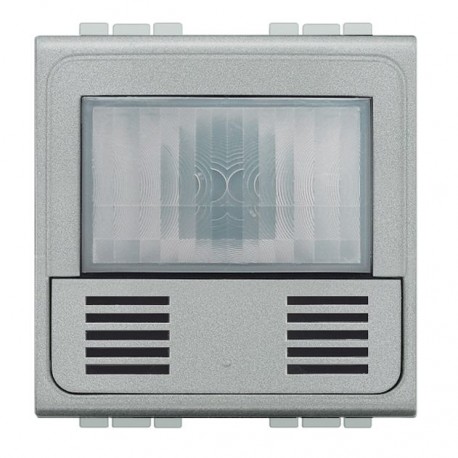

BTICINO NT4433N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NT4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M TECH

Code: NT4433N

Manufacturer: BTICINO

Description:

LL-SENSOR IR+US 2.5 TO 2M TECH
LL-IR+US 2.5A 2M TECH SENSOR
Detector 3-wire with neutral Livinglight - 2 module - Tech
3-wire detector with neutral Livinglight - 2mod - Tech

Categories:

  • Domestic switching devices > Movement sensor complete
  • BTICINO > AUTONOMOUS LIGHTING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 145,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - Tech

General characteristics

Livinglight - detectors

ETIM for NT4433N Domestic wiring accessories and controls (EC000133)

Feature nameBridging switch (EF001099)
Feature valueNo
Feature nameStaircase light controller (EF001098)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMin. switch-on time (EF006589)
Feature value5 s
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value180 °
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNetworkable (EF003904)
Feature valueNo
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameModel (EF000010)
Feature valuePresence detector
Feature nameWith alarm function (EF005624)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value1.2 m
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameWith acoustic sensor (EF017675)
Feature valueNo
Feature nameBackground monitoring (EF017674)
Feature valueNo
Feature nameConnection cable length (EF003636)
Feature value0 mm
Feature nameTemperature (EF001731)
Feature value-5 °C
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameColour (EF000007)
Feature valueSilver
Feature nameWith connection cable (EF005036)
Feature valueNo
Feature nameWith signal unit (EF003890)
Feature valueNo
Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameMax. switching power (EF001503)
Feature value2000 W
Feature nameForced switch off (EF003920)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueOther
Feature nameDiameter reach on floor (EF003843)
Feature value3 m
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRemote operation (EF003848)
Feature valueYes
Feature nameConstant light control (EF003863)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameMax. reach sideways (EF001323)
Feature value8 m
Feature nameMax. reach frontally (EF001322)
Feature value8 m
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameResponse value luminosity (EF003814)
Feature value5 lx
Feature nameHVAC-control (EF003858)
Feature valueNo
