BTICINOLIVINGLIGHT WITH NETATMONT4413CM2 BTCINO LLwN-ILUM SWITCH. TECH

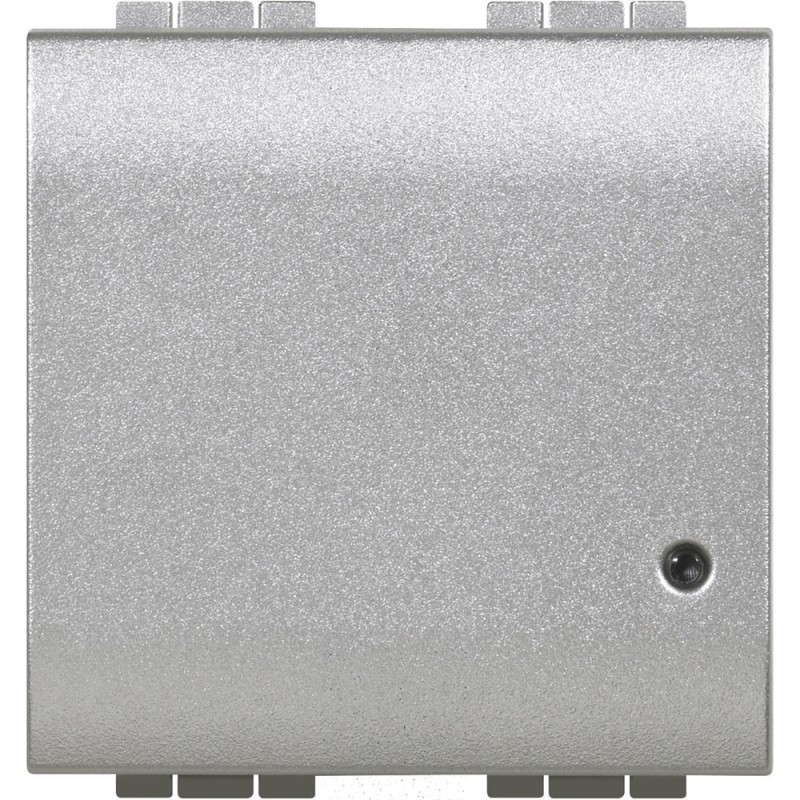

BTICINO NT4413CM2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NT4413CM2 BTCINO LLwN-ILUM SWITCH. TECH

Code: NT4413CM2

Manufacturer: BTICINO

Description:

LLwN-ILUM SWITCH. TECH
Switch connected without neutral (with dimming option) Livinglight w/Netatmo - Tech
Connected switch without neutral Livinglight w/Netatmo - Tech

Categories:

  • Domestic switching devices > Electronic switch
  • BTICINO > LIVINGLIGHT WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,58 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The connected switch (with dimming option) allows you to control your lights remotely via the Home + Control app or using your voice.
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
ModelTronic
Load TypeUniversal and LED retrofit
Input ExtensionsYes
Luminous value memoryYes
Can be used with a buttonYes
Usable with motion detectorYes
Usable with presence detectorNo
Usable with timerYes
Usable with radio buttonYes
Usable with IR buttonNo
MaterialPlastic
Material qualityThermoplastic
Surface treatmentVarnishing
Surface FinishMate
Colouraluminium
RAL number (similar)7035
TransparentNo
Nominal Voltage230 V
frequency50-60 Hz
Nominal current0.55 A
Switching power5-125 W
Number of channels1
Attachment TypeOther
Min. depth of the recessed box40 mm
Compatible with Apple HomeKitYes
Compatible with Google AssistantYes
Compatible with Amazon AlexaYes
Compatible IFTTTNo
Width44 mm
Height47 mm
Depth43.5 mm
Installation Depth33.5 mm
Impact resistanceIK04
Protection Class (IP)IP40
Operating Temperature5-45°C
Storage temperature0-45 °C
Standby consumption2.2 mA
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals3
Terminal capacity0.75-2.5 mm²
Core cross-section0.75-2.5 mm²
Label Space/Print AreaNo
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
With voice commandYes
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
Product usage functionLighting management
App NameHome + Control
Programming mediumSmartphone apps

ETIM for NT4413CM2 Domestic wiring accessories and controls (EC001588)

Feature nameSwitch capacity (EF005233)
Feature value5 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueYes
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueYes
Feature nameCompatible with Google Assistant (EF014926)
Feature valueYes
Feature nameApplicable with infrared button (EF003908)
Feature valueNo
Feature nameApplicable with presence indicator (EF003909)
Feature valueNo
Feature nameType of load (EF001508)
Feature valueUniversal and LED Retrofit
Feature nameApplicable with movement sensor (EF003906)
Feature valueYes
Feature nameApplicable with transmission button (EF003907)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameLight value memory (EF003867)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameNumber of channels (EF000259)
Feature value1
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature nameModel (EF000010)
Feature valueTronic
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameApplicable with time switch/timer (EF003911)
Feature valueYes
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameRated current (EF000227)
Feature value0.55 A
Feature nameColour (EF000007)
Feature valueAluminium
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameApplicable with button (EF003910)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
NT4413CM2 EN_L4413CM2.pdf
155 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
