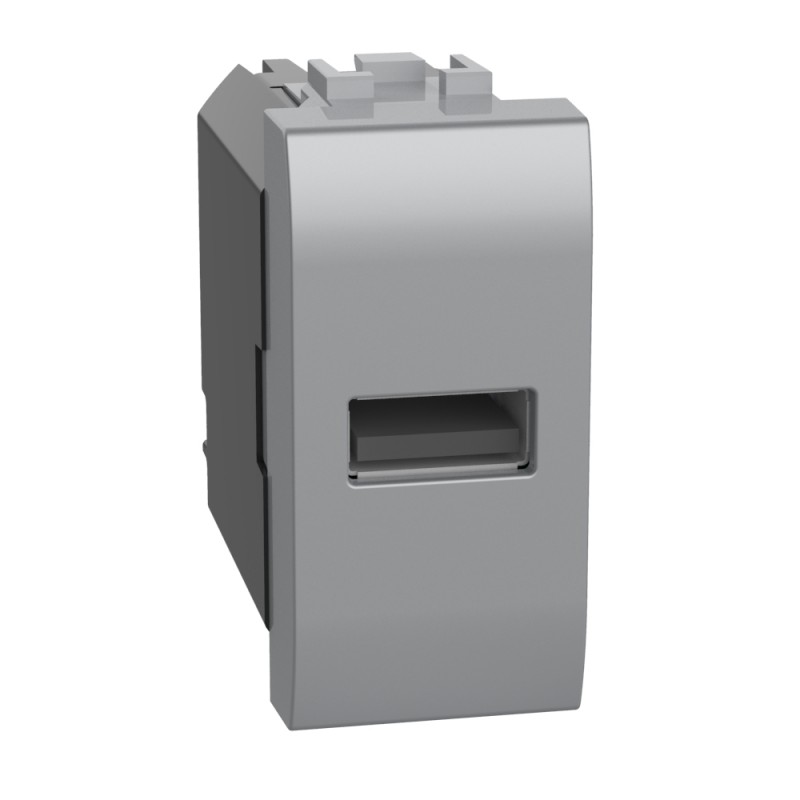

BTICINO NT4191A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NT4191A BTCINO LL-BASE USB TO 3A/5V 1M TECH

Code: NT4191A

Manufacturer: BTICINO

Description:

LL-BASE USB TO 3A/5V 1M TECH
Livinglight USB Single Charger Base - Type A - Tech - 1 module
Livinglight USB Single Charger Base - TypeA - Tech - 1mod

Categories:

  • Domestic switching devices > USB power supply
  • BTICINO > LIVINGLIGHT MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 29,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

USBA Chargers - 3A/5V - 15W - Allow fast charging of mobiles, tablets, smartphones, MP3, MP4 - Free up space for power bases - Standby <lt/> consumption 0.1 W - Class II TBTS - Supplied without cable - 1 module - Tech.

specifications

ModelOther
Number of USB-A ports1
Number of USB-C ports0
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-5 V
Power consumption0.069 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
Colouraluminium
RAL number7035
Device width22 mm
Device height44 mm
Device Depth41 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth30 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage100-240 V
Power DeliveryNo
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for NT4191A Domestic wiring accessories and controls (EC002949)

Feature nameModel (EF000010)
Feature valueOther
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP40
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameOperating voltage (EF003983)
Feature value100 V
Feature nameDevice depth (EF008810)
Feature value41 mm
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameNumber of ports USB-C (EF017049)
Feature value0
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameOutput voltage (EF003933)
Feature value5 V
Feature namePower consumption (EF000346)
Feature value0.069 W
Feature nameDevice width (EF008808)
Feature value22 mm
Feature nameDevice height (EF008809)
Feature value44 mm
Feature nameColour (EF000007)
Feature valueAluminium
Feature nameNumber of ports USB-A (EF000997)
Feature value1
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameMax. output current (EF001315)
Feature value3000 mA
Feature nameFrequency (EF000416)
Feature value50 Hz
