BTICINOLIVINGLIGHT MECHANISMSNT4003TL BTCINO LL-CONM W/CONTACT LIGHT 2M TECH

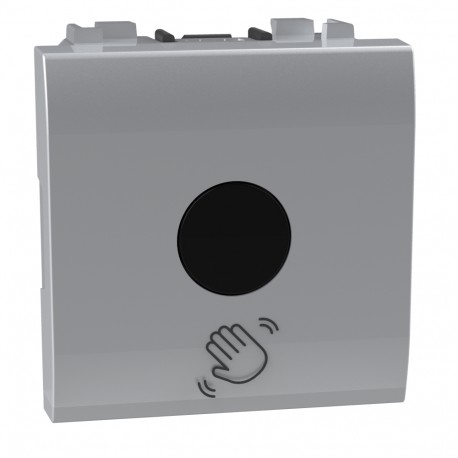

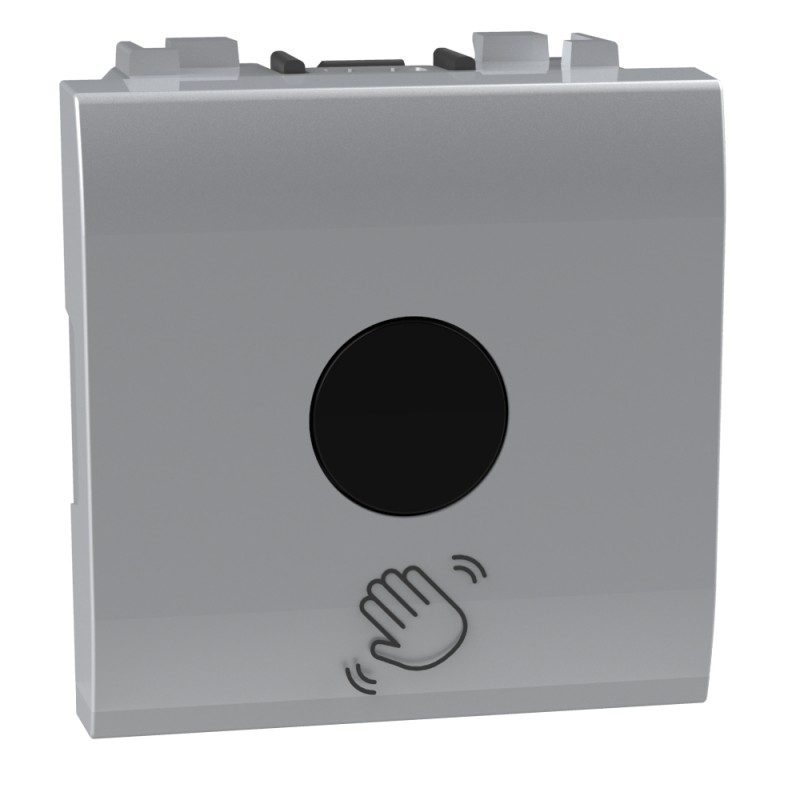

BTICINO NT4003TL - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NT4003TL BTCINO LL-CONM W/CONTACT LIGHT 2M TECH

Code: NT4003TL

Manufacturer: BTICINO

Description:

LL-CONM W/CONTACT LIGHT 2M TECH
Livinglight Lighting Touchless SwitchAluminum

Categories:

  • Domestic switching devices > Movement sensor complete
  • BTICINO > LIVINGLIGHT MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 99,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Livinglight mechanisms for non-physical contact lighting - Detection distance: 6cm - supplied with finished front, to equip with decorative plates
ModelOther
Motion sensor technologyOther
Constant light dimmingYes
Control de HVACNo
Forced connectionNo
Forced disconnectionNo
Animal ZoneNo
Creep Protection/Field MonitoringNo
Background monitoringNo
NetworkableYes
Optimal mounting height1.2 m
Stair Lighting ControllerNo
Bypass switchYes
Suitable for wireless streamingNo
Remote controlNo
With remote controlNo
Adjustable response sensitivityYes
Adjustable response brightnessNo
With signalling unitNo
Learn function for responsive brightnessNo
Control function with control insertNo
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingNo
Suitable for wall mountingNo
Connection MethodScrew-on terminal
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
Colouraluminium
RAL number (similar)7035
TransparentNo
Protection Class (IP)IP20
Impact resistanceIK04
Type of voltageAC
frequency50-60 Hz
Nominal Voltage230-230 V
Suitable for C-loadNo
Number of switching zones0
Maximum starting current2 A
Starting current min.0.5 A
Input ExtensionsNo
Alarm functionNo
With acoustic sensorNo
Ambient Temperature5-40 °C
Width40 mm
Height40 mm
Depth43 mm
Mounting width40 mm
Installation Depth33 mm
Installation Length40 mm
Min. depth of the recessed box43 mm
With connection cableNo
Connection cable length0 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Neutral MandatoryYes
Display of markings on the connection terminalsNo
Terminal capacity1-1.5 mm²
Connection Cable TypeFlexible or rigid
Label Space/Print AreaNo
Type of cable entry feedthroughsFlexible to cut
Distance between horizontal clamping centers3.5-3.7 mm
Circuit breakerNo

ETIM for NT4003TL Domestic wiring accessories and controls (EC000133)

Feature nameHeight (EF000040)
Feature value40 mm
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameBridging switch (EF001099)
Feature valueYes
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameStaircase light controller (EF001098)
Feature valueNo
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value43 mm
Feature nameNetworkable (EF003904)
Feature valueYes
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameModel (EF000010)
Feature valueOther
Feature nameWith alarm function (EF005624)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value1.2 m
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameWith acoustic sensor (EF017675)
Feature valueNo
Feature nameBackground monitoring (EF017674)
Feature valueNo
Feature nameMax. starting current (EF001732)
Feature value2 A
Feature nameConnection cable length (EF003636)
Feature value0 mm
Feature nameDepth (EF000049)
Feature value43 mm
Feature nameTemperature (EF001731)
Feature value5 °C
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameSuitable for C-load (EF003832)
Feature valueNo
Feature nameColour (EF000007)
Feature valueAluminium
Feature nameWidth (EF000008)
Feature value40 mm
Feature nameBuilt-in width (EF000846)
Feature value40 mm
Feature nameWith connection cable (EF005036)
Feature valueNo
Feature nameBuilt-in length (EF004265)
Feature value40 mm
Feature nameWith signal unit (EF003890)
Feature valueNo
Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueNo
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameForced switch off (EF003920)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameBuilt-in depth (EF000218)
Feature value33 mm
Feature nameRemote operation (EF003848)
Feature valueNo
Feature nameConstant light control (EF003863)
Feature valueYes
Feature nameWith DALI interface (EF009569)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameNumber of switching zones (EF009568)
Feature value0
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameMin. starting current (EF011992)
Feature value0.5 A
Feature nameSuitable for wall mounting (EF000664)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameForced switch on (EF011991)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameHVAC-control (EF003858)
Feature valueNo
