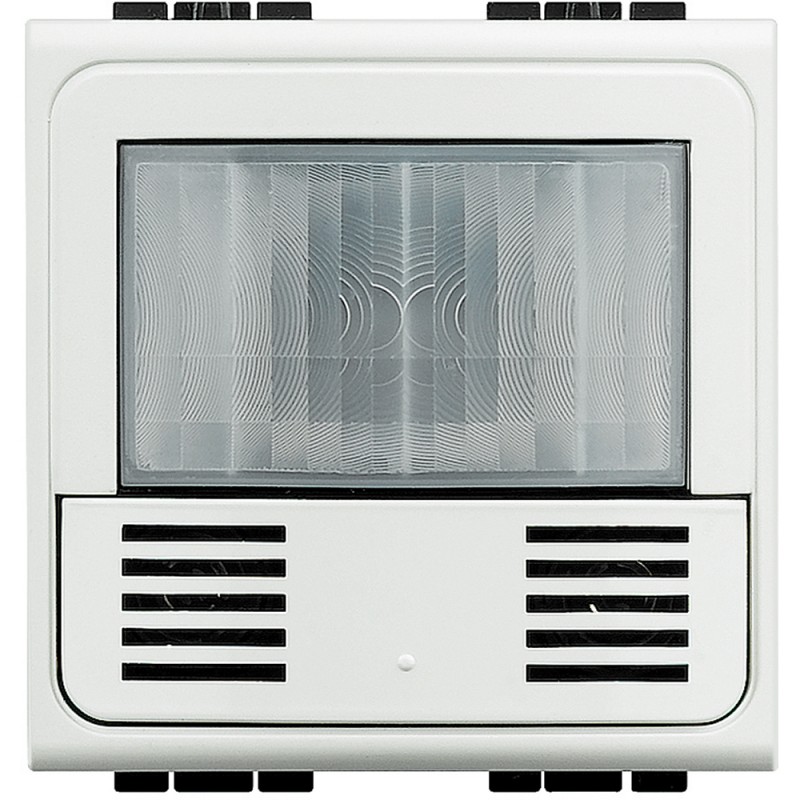

BTICINO N4658N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

N4658N BTCINO LL-SENSOR SCS IR+US WHITE

Code: N4658N

Manufacturer: BTICINO

Description:

LL-SENSOR SCS IR+US WHITE
Motion Detector/brightness + button Livinglight MyHOME - white
PIR & US SCS Motion Detector - 2mod - White

Categories:

  • Domestic switching devices > Sensor element for movement sensor
  • BTICINO > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 1.359,73 €

Unit Price: 135,973 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Motion detector/brightness push-button integrated control - automatic with integrated control - presence Sensor dual technology IR passive and ultrasound - brightness Sensor - Surface coverage 5 m wide by 180° and depth of field of 9 m for an installation height of 1.2 m - Power of the light to automatic or manual by button on front face, and auto power off depending on the brightness level scene and of the presence detection - Timing shutdown deferred, and level of lux adjustable - Option to maintain a level of lux constant associating an actuator/drive - 2 modules Version Livinglight - complete with a bracket and a plate Livinglight - White

General characteristics

MyHOME home automation - BUS - automation - motion detectors

ETIM for N4658N Domestic wiring accessories and controls (EC000138)

Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameStaircase light controller (EF001098)
Feature valueNo
Feature nameWith orientation lighting (EF008862)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameMounting height (EF003874)
Feature value1.2 m
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameMin. switch-on time (EF006589)
Feature value30 s
Feature nameCombination movement sensor/push button switch (EF016109)
Feature valueYes
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value0 °
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameDiameter reach on floor (EF003843)
Feature value6 m
Feature nameNetworkable (EF003904)
Feature valueNo
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueYes
Feature nameRAL-number (similar) (EF003882)
Feature value9006
Feature nameOperation mode switch (EF004530)
Feature valueYes
Feature nameModel (EF000010)
Feature valuePresence detector
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameConstant light control (EF003863)
Feature valueYes
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameMax. reach sideways (EF001323)
Feature value6 m
Feature nameMax. reach frontally (EF001322)
Feature value8 m
Feature nameMax. duty cycle (EF006590)
Feature value15359 min
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameHVAC-control (EF003858)
Feature valueNo
