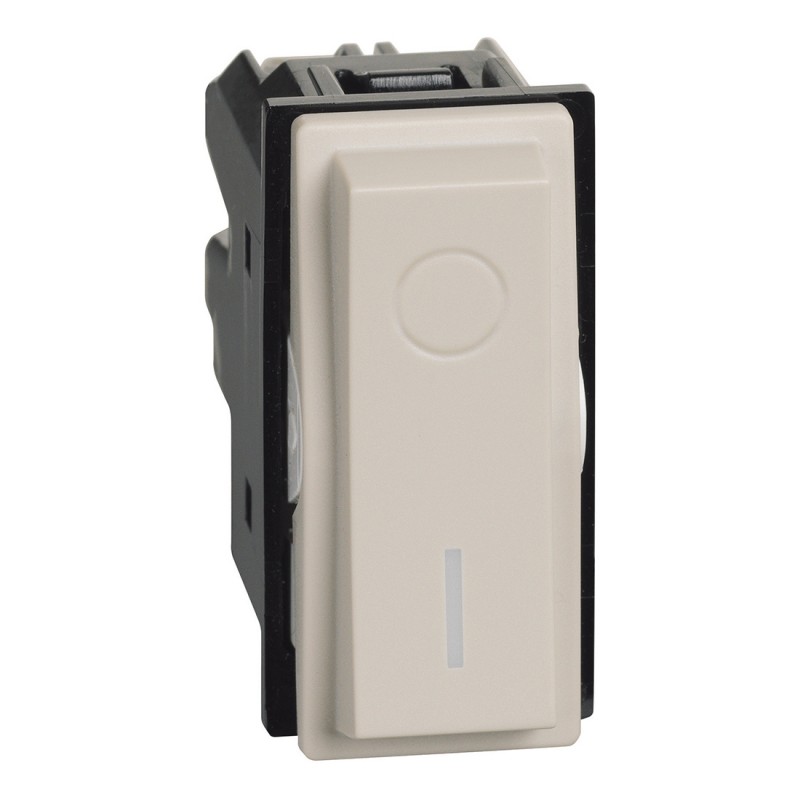

KM40 BTCINO LNWN 1M I/O SAND KEY
KM40
BTICINO
10
LNWN 1M I/O SAND KEY
Living Now bipolar switch - illuminable - 16AX - 250Vac - Sand - 1 module
Living Now w/Netatmo key for wireless stage command - Sand - 1mod
Domestic switching devices > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲| Cabling System | 1-pole disconnect switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Module for system interruption program, Recessed mounted (plaster) |
| Number of modules (in case of modular design) | 1 |
| Push Button Switch | Yes |
| Attachment Type | Lock in position |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Beige |
| RAL number (similar) | 1015 |
| Switching element color | Beige |
| Label space/print surface | No |
| Lighting | Optional |
| Lighting function | Orientation |
| Lighting Type | Other |
| Suitable for protection grade (IP) | IP21 |
| Impact resistance | IK04 |
| Nominal Voltage | 250 V |
| Nominal current | 16 A |
|---|---|
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 22 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Installation Depth | 28 mm |
| Min. depth of the recessed box | 38 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -5-35 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 86 mm |
| RAL-number (similar) (EF003882) | 1015 |
| Model (EF000010) | One-part rocker |
| Suitable for touch sensor connector for bus system (EF007802) | No |
| Material (EF002169) | Plastic |
| Utilization (EF000133) | Switch/push button |
| Monitoring window/light outlet (EF003864) | Yes |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| With exchangeable lens/symbol (EF006039) | No |
| With label area (EF005040) | No |
| Scannable symbol/barrier free (EF012306) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprint/indication (EF003823) | Various symbols |
| Depth (EF000049) | 7 mm |
| Colour (EF000007) | Beige |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 22 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| KM40 EN_KG13C.pdf | 449 Kbytes |
|
