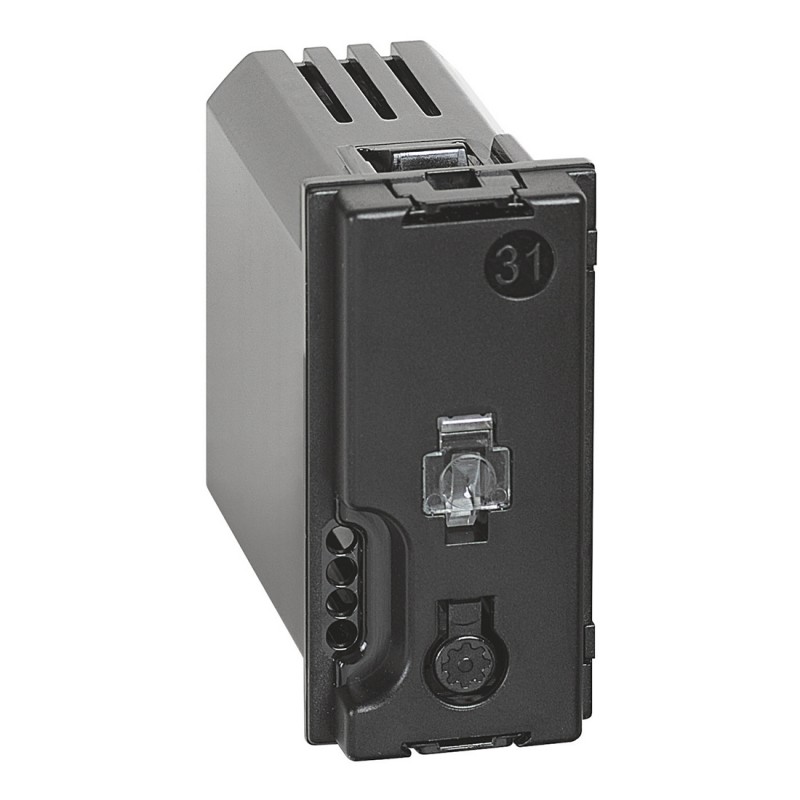

K4531C BTCINO LNwN-1M MODULE FOR BASE
K4531C
BTICINO
LNwN-1M MODULE FOR BASE
Living Now Power Base Connected Module
Domestic switching devices > Radio receiver
LIVING NOW WITH NETATMO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲
Connected to a power base, it allows you to remotely control electrical devices and control their consumption (instantaneous, daily, monthly). It also allows you to receive notifications in case of anomaly. Compatible with any electrical device up to 3680W. Equipped with a blue LED, configurable from the Home + Control app for location and charging status functions.
| Suitable for regulation | No |
|---|---|
| Push-button safe | No |
| Suitable for shutter switches | No |
| Suitable for shutter switch | No |
| Suitable for blind/roller switches | No |
| Switch Suitable | No |
| In housing | Yes |
| In the connection tube housing | No |
| With module/board | No |
| Power supply | 230 V AC |
| Button Mode | No |
| Switching Operation | Yes |
| With handheld radio transmitter | Yes |
| With radio coding device | No |
| With wireless push button | No |
| Number of relays | 1 |
| Type of mounting | Recessed mounted (plaster) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Attachment Type | Screw mounting |
| Colour | Black |
| Transparent | No |
| Suitable for protection grade (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Radio frequency | 2400 MHz |
| Modulation | FM |
| Sequential Code System | Yes |
|---|---|
| Number of commands | 0 |
| Compatible with Apple HomeKit | Yes |
| Compatible with Google Assistant | Yes |
| Compatible with Amazon Alexa | Yes |
| Compatible IFTTT | No |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 44 mm |
| Installation Depth | 37 mm |
| Impact resistance | IK04 |
| Operating Temperature | 5-45°C |
| Storage temperature | 0-45 °C |
| Standby consumption | 1 mA |
| Neutral Mandatory | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Antibacterial treatment | No |
| Contains battery and/or accumulator | No |
| Connected Object | Yes |
| Method of operation | Zigbee |
| App download platform | App Store, Google Play Store |
| With voice command | Yes |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | Yes |
| Supported voice assistants | Google Assistant, Amazon Alexa, Apple Siri |
| Product usage function | Power Distribution |
| App Name | Home + Control |
| Programming medium | Smartphone apps |
| Feature Name | Feature Value |
|---|---|
| Suitable for switch (EF001176) | No |
| Material (EF002169) | Plastic |
| Suitable for venetian-/roller shutter switch (EF003852) | No |
| Suitable for dimmer (EF001178) | No |
| Surface finishing (EF006569) | Matt |
| Suitable for pulse button (EF001177) | No |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Current supply (EF000145) | 230 V AC |
| Suitable for roller shutter switch (EF001179) | No |
| Compatible with Apple HomeKit (EF014925) | Yes |
| Transparent (EF006243) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| Compatible with Amazon Alexa (EF014927) | Yes |
| Compatible with Google Assistant (EF014926) | Yes |
| Surface protection (EF000139) | Untreated |
| Radio frequency (EF002775) | 2400 MHz |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| IFTTT support available (EF011072) | No |
| Number of relays (EF000786) | 1 |
| Printed circuit board/module (EF002943) | No |
| Rolling code system (EF002767) | Yes |
| Push button mode (EF002944) | No |
| Colour (EF000007) | Black |
| In housing (EF002941) | Yes |
| Suitable for venetian shutter switch (EF003854) | No |
| In tube base housing (EF002942) | No |
| Modulation (EF002766) | FM |
| With radio coding device (EF002947) | No |
| With radio controlled push button (EF002948) | No |
| Switching mode (EF002945) | Yes |
| Number of commands (EF002769) | 0 |
| With manual radio transmitter (EF002946) | Yes |
