BTICINOLIVING NOW WITH NETATMOK4413CM2 BTCINO LNwN-ILUM SWITCH

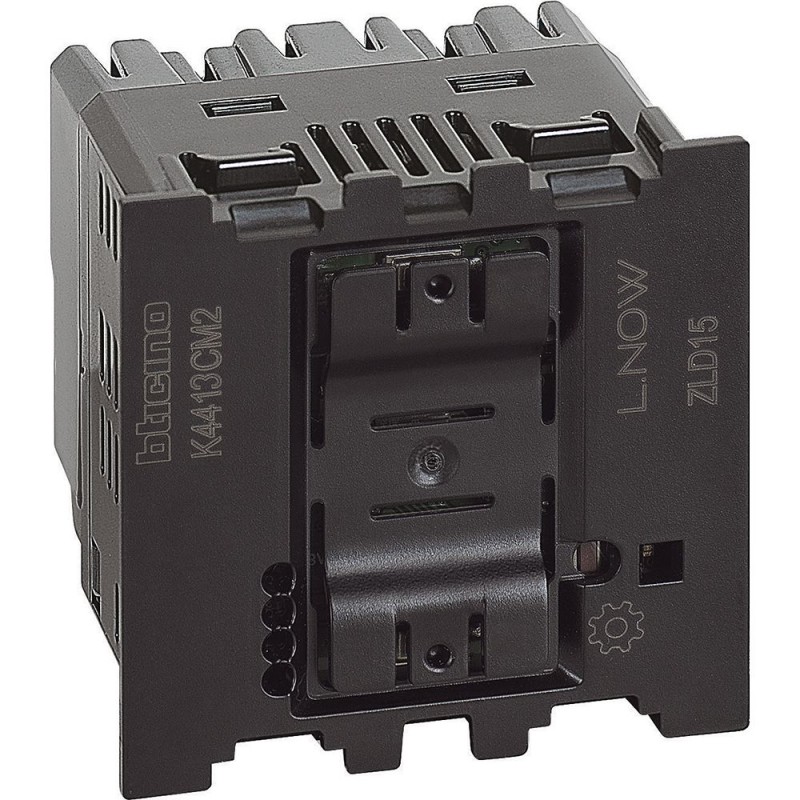

BTICINO K4413CM2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

K4413CM2 BTCINO LNwN-ILUM SWITCH

Code: K4413CM2

Manufacturer: BTICINO

Description:

LNwN-ILUM SWITCH
Switch connected without neutral (with dimming option) Living Now with Netatmo
Living Now w/Netatmo neutral connected switch - 2mod

Categories:

  • Domestic switching devices > Electronic switch
  • BTICINO > LIVING NOW WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 645,84 €

Unit Price: 64,584 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Switch connected without neutral (with dimming option) Living Now with Netatmo for lamps up to 125W

Product features
  • Non-neutral, 5 VA - 125VA, includes a load compensator
  • Compatible with traditional or dimmable bulbs, including LEDs - Dimming can be activated from the app
  • LED indicator with location function that can be activated in the app
  • Auxiliary input for mechanical pushbutton
Recommendations / Restrictions
  • To connect your switch (with dimming option), you must first purchase and install a Living Now with Netatmo starter pack. To control your switch, you need to attach one or more Living Now with Netatmo switches or a mechanical pushbutton to it.
description
The connected switch (with dimming option) allows you to control your lights remotely via the Home + Control app or using your voice.

Highlights

Advantages in installation
  • The connected lighting switch is easily installed and requires a standard recessed box (40mm). Compatible with claw installation
Advantages in use
  • Control and dim your lights with the switch, your smartphone or your voice using a voice assistant
Specific features
  • When associated with the Netatmo connected starter pack, you can control the "with Netatmo" products manually or remotely from your smartphone or by voice.
  • It does not need neutral. It is supplied with an active compensator for greater compatibility with LED lighting on the market.

specifications

Type of mountingBasic element, Recessed mounted (plaster)
ModelTronic
Load TypeUniversal and LED retrofit
Input ExtensionsYes
Luminous value memoryYes
Can be used with a buttonYes
Usable with motion detectorYes
Usable with presence detectorNo
Usable with timerYes
Usable with radio buttonYes
Usable with IR buttonNo
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Surface FinishMate
ColourOther
RAL number (similar)7015
TransparentNo
Nominal Voltage230 V
frequency50-60 Hz
Nominal current0.55 A
Switching power5-125 W
Number of channels1
Attachment TypeOther
Min. depth of the recessed box50 mm
Compatible with Apple HomeKitYes
Compatible with Google AssistantYes
Compatible with Amazon AlexaYes
Compatible IFTTTNo
Width45 mm
Height45 mm
Depth46 mm
Installation Depth33 mm
Impact resistanceIK04
Protection Class (IP)IP40
Operating Temperature5-45°C
Storage temperature0-45 °C
Standby consumption2.2 mA
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals3
Terminal capacity0.75-1.5 mm²
Core cross-section0.75-1.5 mm²
Label Space/Print AreaNo
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityYes
With voice commandYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
App NameHome + Control
Product usage functionLighting management
Possibility of connection via Internet boxYes

ETIM for K4413CM2 Domestic wiring accessories and controls (EC001588)

Feature nameSwitch capacity (EF005233)
Feature value5 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueYes
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueYes
Feature nameCompatible with Google Assistant (EF014926)
Feature valueYes
Feature nameApplicable with infrared button (EF003908)
Feature valueNo
Feature nameApplicable with presence indicator (EF003909)
Feature valueNo
Feature nameType of load (EF001508)
Feature valueUniversal and LED Retrofit
Feature nameApplicable with movement sensor (EF003906)
Feature valueYes
Feature nameApplicable with transmission button (EF003907)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value50 mm
Feature nameLight value memory (EF003867)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of channels (EF000259)
Feature value1
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRAL-number (similar) (EF003882)
Feature value7015
Feature nameModel (EF000010)
Feature valueTronic
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameApplicable with time switch/timer (EF003911)
Feature valueYes
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameRated current (EF000227)
Feature value0.55 A
Feature nameColour (EF000007)
Feature valueOther
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameApplicable with button (EF003910)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
K4413CM2 EN_K4413CM2.pdf
151 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
