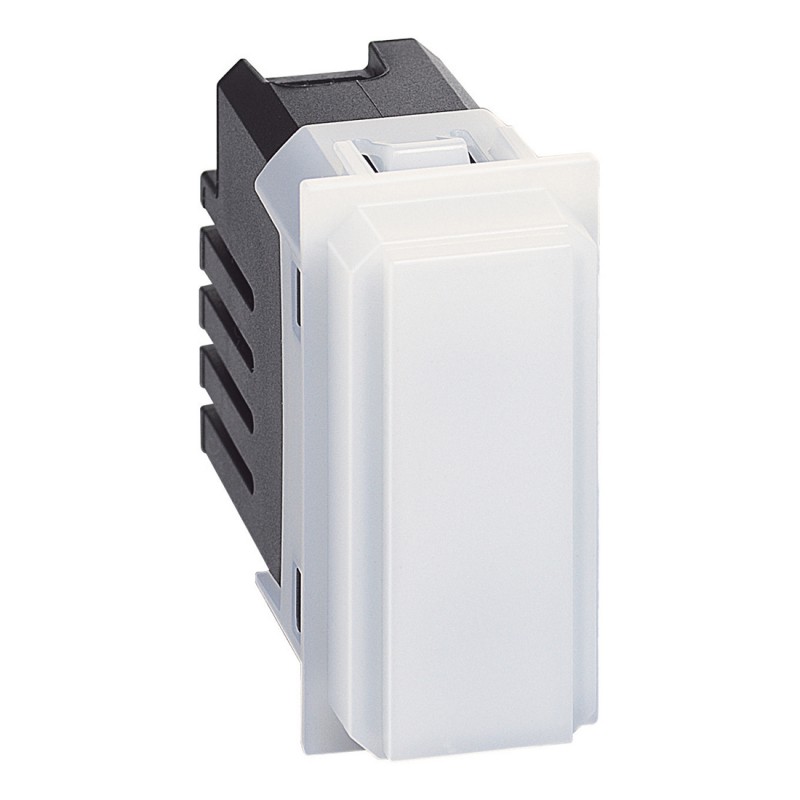

K4381 BTCINO LN-LED SAFETY LAMP 1M

Code: K4381

Manufacturer: BTICINO

Description:

LN-LED SAFETY LAMP 1M
LED Safety Lamp Living Now - 1 module
Living Now LED Safety Lamp - 1mod

Categories:

  • Luminaires > Ceiling-/wall luminaire
  • BTICINO > LIVING NOW

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 67,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Light signals - LED emergency lamp with automatic ignition in case of lack of mains voltage. 230 Vac 50/60 Hz - consumption 2.5 VA (0.1 W) - rechargeable non-replaceable battery NiMH 3.6 V 140 mAh - full recharge in 48 h - autonomy 2 h - Maximum cable section 1 x 1.5 mm2 - luminous intensity 2,400 mcd - emission angle 120° - non-removable - To be combined with front ref. KG/KM/KW02, support and trim plate - 1 module

General features

Living Now - acoustic and light signalling

ETIM for K4381 Luminaires (EC002892)

Feature nameConductor cross section (EF000085)
Feature value1.5 mm²
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameEmergency power supply integrated (EF005138)
Feature valueYes
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameWith control gear (EF007556)
Feature valueNo
Feature nameSuitable for surface mounting (EF007793)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameLight distribution (EF004283)
Feature valueSymmetric
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameLight outlet (EF004282)
Feature valueDirect
Feature nameBuilt-in height/depth (EF023518)
Feature value41.5 mm
Feature nameWith light sensor (EF001203)
Feature valueYes
Feature nameMax. system power (EF009347)
Feature value0.2 W
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameNominal current (EF009345)
Feature value15 mA
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameDimming DSI (EF012188)
Feature valueNo
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value51.5 mm
Feature nameBeam angle adjustable (EF016263)
Feature valueNo
Feature nameWidth (EF000008)
Feature value22 mm
Feature nameColour of light adjustable (EF016261)
Feature valueNo
Feature nameLuminous flux adjustable (EF016262)
Feature valueNo
Feature nameSurface protection housing (EF024150)
Feature valueUntreated
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameType of wiring (EF011868)
Feature valueEnding
Feature nameWith movement sensor (EF000197)
Feature valueNo
Feature nameSuitable for emergency lighting (EF004275)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameDimming manufacturer's proprietary system (EF012159)
Feature valueNo
Feature nameDimming DALI-2 (EF015824)
Feature valueNo
Feature nameSuitable for light line configuration (EF004274)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDimming phase cut-on (leading edge) (EF012162)
Feature valueNo
Feature nameDimming programmable (EF012163)
Feature valueNo
Feature nameDimming RF (EF012164)
Feature valueNo
Feature nameDimming Sine Wave Reduction (EF012165)
Feature valueNo
Feature nameDimming Touch and Dim (EF012166)
Feature valueNo
Feature nameDimming Zigbee (EF012167)
Feature valueNo
Feature nameDimming with push-button (EF012168)
Feature valueNo
Feature nameLength (EF001438)
Feature value45 mm
Feature nameDimming mains voltage modulation (EF012160)
Feature valueNo
Feature nameDimming phase cut-off (trailing edge) (EF012161)
Feature valueNo
Feature nameCovering of the luminaire with thermally insulating material possible (EF006423)
Feature valueNo
Feature nameType of grid (EF000282)
Feature valueMatt
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameColour rendering index CRI (EF000442)
Feature value80-89
Feature nameWith air slots (EF009372)
Feature valueYes
Feature nameOperation by Bluetooth (EF013759)
Feature valueNo
Feature nameSuitable for lamp power (EF000280)
Feature value0.1 W
Feature nameDimming 0-10 V (EF012152)
Feature valueNo
Feature nameDimming 1-10 V (EF012153)
Feature valueNo
Feature nameDimming DALI (EF012154)
Feature valueNo
Feature nameDimming DMX (EF012155)
Feature valueNo
Feature nameDimming potentiometer (integrated) (EF012156)
Feature valueNo
Feature nameDimming LineSwitch (EF012158)
Feature valueNo
Feature nameSuitable for suspended mounting (EF001265)
Feature valueNo
Feature nameSuitable for number of light sources (EF006436)
Feature value1
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameBuilt-in width (EF000846)
Feature value22 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant voltage
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSuitable for workplace according to EN 12464-1 (EF007694)
Feature valueNo
Feature nameSuitable for built-in mounting (EF006760)
Feature valueYes
Feature nameColour of light (EF009350)
Feature valueWhite
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameRated ambient temperature according to IEC 62722-2-1 (EF012090)
Feature value-5 °C
Feature nameColour consistency (McAdam ellipse) (EF011946)
Feature valueSDCM1
Feature nameBeam angle (EF008157)
Feature valueExtreme wide beam >80°
Feature nameConstant light output (CLO) (EF009482)
Feature valueNo
Feature namePhotobiological safety according to EN 62471 (EF011948)
Feature valueOther
Feature nameSuitable for wall mounting (EF000664)
Feature valueYes
Feature nameExchangeable control gear (EF016286)
Feature valueNo
