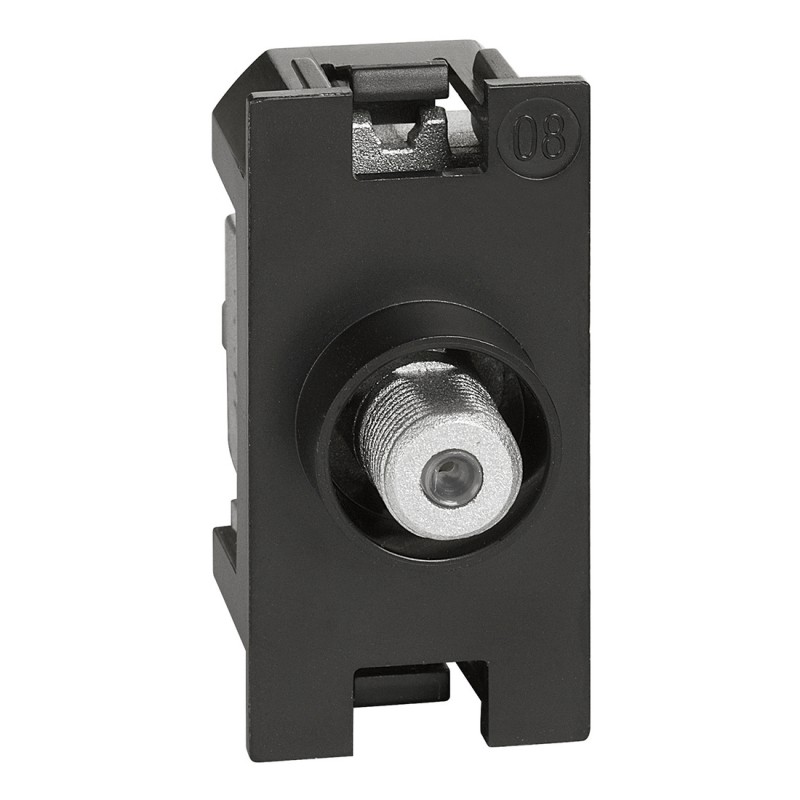

K4202F BTCINO LN-BASE TV UNIQUE TYPE F 1M
K4202F
BTICINO
5
LN-BASE TV UNIQUE TYPE F 1M
Living Now TV Base - TV - Single - Type F - 1 Module
Living Now TV Base - TV - unique - type F - 1mod
Antenna and satellite technique > Antenna socket
LIVING NOW
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲Product features
TV/SAT bases - TV: 5-68/120-862 MHz - SAT: 950-2400 MHz - Single base - 1 dB - For tv and satellite installations of a single user - With current and signal passage for channel selection - Shielded connection terminals - TV/SAT: type F connector - Recommended coaxial cable: 17/19 VATC - To be combined with fronts of 1 module ref. KG/KM/KW08 or front of 2 modules ref. KG/KM/KW08M2 - 1 moduleGeneral features
Living Now - tv bases| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | SAT |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 1.5 dB |
| Material (EF002169) | Plastic |
| DAB+ (EF011633) | No |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Module frame/grid |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material quality (EF001257) | Urea formaldehyde |
| Tap loss at 2150 MHz (EF003499) | 2 dB |
| Number of modules (module system) (EF009573) | 1 |
| Min. depth of built-in installation box (EF012278) | 32 mm |
| Suitable for cable modem (EF001547) | No |
| Surface protection (EF000139) | Lacquered |
| Suitable for remote power supply (EF001548) | No |
| Through loss at 860 MHz (EF000539) | 1.5 dB |
| Number of outlets (EF000538) | 1 |
| RAL-number (similar) (EF003882) | 7015 |
| Model (EF000010) | Loop-through socket |
| Through loss at 2150 MHz (EF003500) | 2 dB |
| Cover (EF000055) | Central cover plate |
| Device depth (EF008810) | 31 mm |
| Impact strength (EF004293) | IK02 |
| Anti-bacterial treatment (EF023790) | No |
| Radio frequency band (EF017378) | 87.5 MHz |
| SAT frequency band (EF017379) | 950 MHz |
| TV frequency band (EF017377) | 5 MHz |
| Device width (EF008808) | 22 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| K4202F EN_K4202P10.pdf | 362 Kbytes |
|
