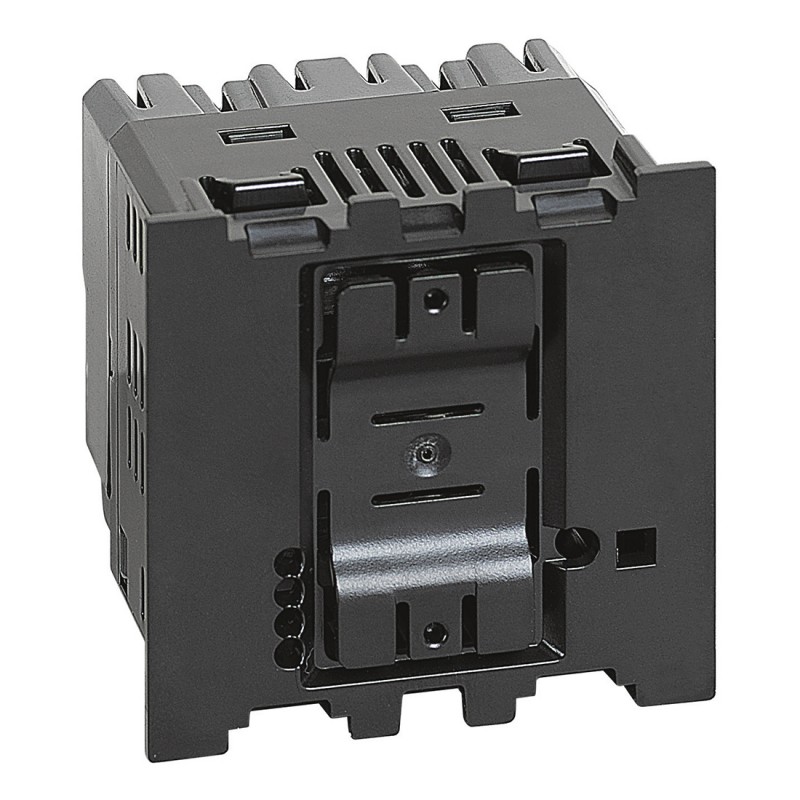

K4027CM2N BTCINO LNWN-BLIND SWITCH

The connected shutter switch allows control of any shutter motor with electronic or mechanical limit switch (lower/raise/stop/opening level) - It can be controlled from one or several wireless commands - Requires the installation of the Starter Pack - It must be completed with a support, key and a decorative plate of an element from the Living Now series of mechanisms.

KNX bus system	No
KNX-RF bus system (radio frequency)	No
Radio frequency bus system	Yes
LON Bus System	No
Powernet Bus System	No
Other bus systems	Zigbee
Bidirectional Radio Frequency	Yes
Type of mounting	Recessed mounted (plaster)
Width in number of modular spaces	2
With bus connection	No
Detachable bus module	No
Local Operation/Manual Operation	Yes
With LED indicator	Yes
Number of Entries	4
Switching Current (Resistive)	2 A
Max. switching power	500 W
Max. number of Venetian blind outlets	1
With switch function	Yes
Type of current	AC
Protection Class (IP)	IP20
Min. depth of the recessed box	50 mm
Width	45 mm
Height	45 mm
Depth	44 mm
Installation Depth	33 mm
Impact resistance	IK04
Operating Temperature	5-45°C

Storage temperature	0-45 °C
Nominal Voltage	100-240 V
frequency	50-60 Hz
Standby consumption	2.1 mA
Neutral Mandatory	Yes
Display of markings on the connection terminals	Yes
Compliant with commissioning tests (1000 V)	No
Colour	Black
RAL number	9011
Halogen-free	Yes
Antibacterial treatment	No
Connection Method	Screw-on terminal
Number of terminals	4
Terminal capacity	1.5-2.5 mm²
Contains battery and/or accumulator	No
Connected Object	Yes
Method of operation	Zigbee
App download platform	App Store, Google Play Store
With voice command	Yes
Programmable	Yes
Connection Protocol Interoperability	Yes
Possibility of connection via Internet box	Yes
Supported voice assistants	Google Assistant, Amazon Alexa, Apple Siri
Product usage function	Shutter management
App Name	Home + Control
Programming medium	Smartphone apps
