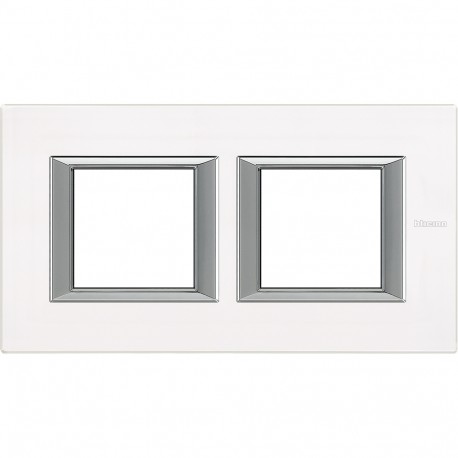

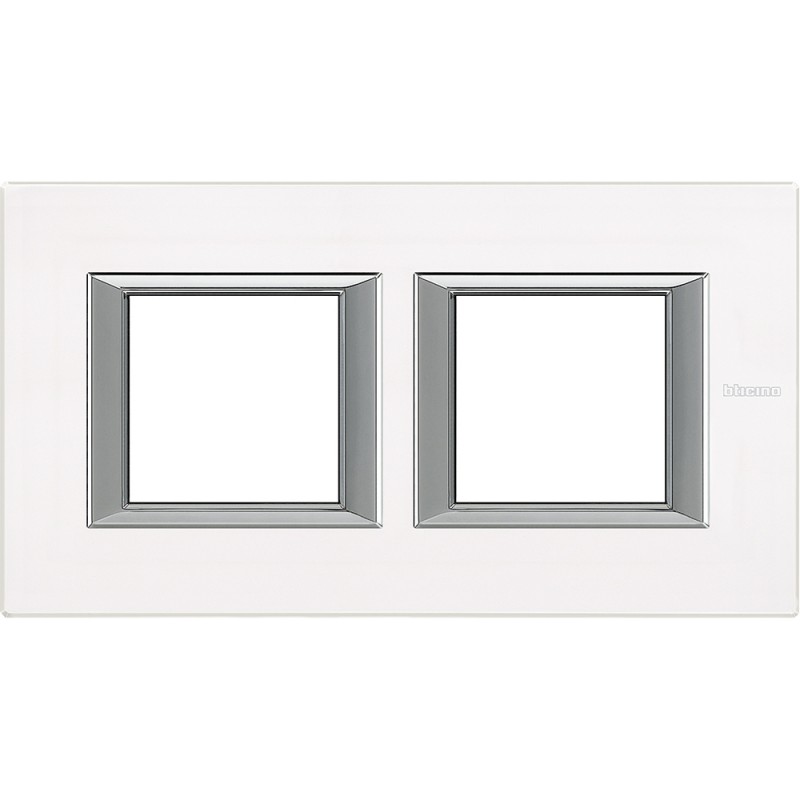

HA4802M2HVBB BTCINO AX-PLATE 2X2M HOR CRYSTAL WHITE
HA4802M2HVBB
BTICINO
AX-PLATE 2X2M HOR CRYSTAL WHITE
Plate straight Axolute white Glass - 2 x 2 modules - wheelbase 71 - horizontal
Axolute straight decorative plate in White Crystal color - 2x2mod
Domestic switching devices > Cover frame for domestic switching devices
AXOLUTE
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Product features
2 + 2 modules, horizontal (wheelbase 71) Glass - white Glass - To associate with: - media Bticino screws ref. H4702 (x2) or claws H4702G (x2) - boxes of recessed Batibox for septum hole ref.0 800 42 (P=40) or ref. 0 800 52 (P=50) - box of recessed Batibox for masonry ref. 0 801 41 (x2) or ref. 0 801 42General characteristics
Axolute - plates straight| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 95.6 mm |
| Degree of protection (IP) (EF005474) | Other |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Glass |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | EV000219 |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Number of modules vertical (module system) (EF009572) | 1 |
| Number of modules horizontal (module system) (EF009571) | 8 |
| Mounting direction (EF003824) | Horizontal |
| With hinged lid (EF000117) | No |
| Surface protection (EF000139) | Untreated |
| Number of units vertical (EF008859) | 1 |
| Number of units (EF000074) | 4 |
| RAL-number (similar) (EF003882) | 9003 |
| Number of units horizontal (EF008858) | 4 |
| Suitable for subfloor installation duct box (EF005864) | No |
| Built-in height (EF000332) | 0 mm |
| With mounting grid (EF012039) | No |
| Suitable for wall duct (EF006572) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK00 |
| Depth (EF000049) | 10.35 mm |
| Colour (EF000007) | White |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 174.6 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
