H4217M2D BTCINO AX-BASED TV/R-SAT ONLY 1,5DB2M
H4217M2D
BTICINO
5
AX-BASED TV/R-SAT ONLY 1,5DB2M
AX-BASE TV/R-SAT UNICA 1.5DB2M

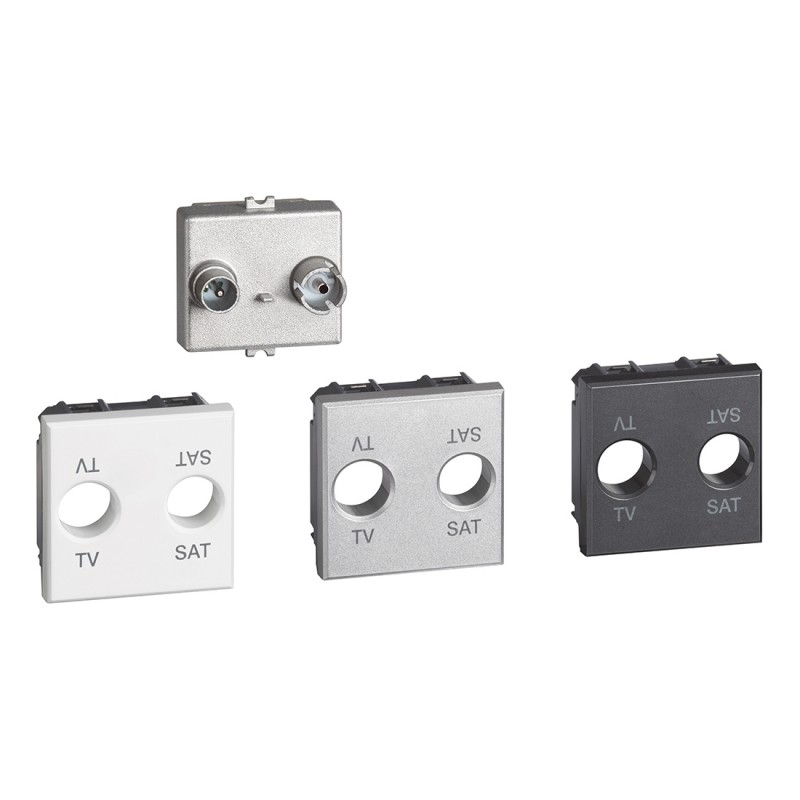

Base TV/R-SAT - Axolute - unique - 1.5 dB - 2400 MHz - white/tech/anthracite
TV/R- SAT single base Axolute- 1.5 dB- 2400 MHz- White/tech/anthracite- 2mod
Antenna and satellite technique > Antenna socket
AXOLUTE
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Product features
Foundation TV/R-SAT - TV: 5-68/120-862 MHz R: 87.5-108 MHz - SAT: 950-2400 MHz - adapted to the reception of DTT, satellite and cable television - compatible with Ultra High Definition - a single, shielded, Class A, compatible with 4G LTE - 1.5 dB - provided with the three front finish (white, tech and anthracite)General characteristics
Axolute - bases of tv - The mechanisms are supplied with front finish (white, tech and anthracite), to equip with a support plate and dummy - Mounting with screws or claws - For installations of TV or radio and satellite tv (with demodulator individual) Bases of armoured - TV/R: male connector (IEC 9,5 mm) - - SAT: female connector (IEC 9,5 mm) - coaxial Cable recommended: 17/19 VATC| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | TV/SAT |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 10 dB |
| DAB+ (EF011633) | No |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Module frame/grid |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Number of modules (module system) (EF009573) | 2 |
| Min. depth of built-in installation box (EF012278) | 31 mm |
| Suitable for cable modem (EF001547) | No |
| Suitable for remote power supply (EF001548) | No |
| Through loss at 860 MHz (EF000539) | 10 dB |
| Number of outlets (EF000538) | 2 |
| Model (EF000010) | Loop-through socket |
| Cover (EF000055) | Central cover plate |
| Device depth (EF008810) | 31 mm |
| Anti-bacterial treatment (EF023790) | No |
| Device width (EF008808) | 45.1 mm |
| Device height (EF008809) | 45 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
