BTICINODOMOTICS MY HOMEF461 BTCINO MH SERVER SCS 3RD PARTS

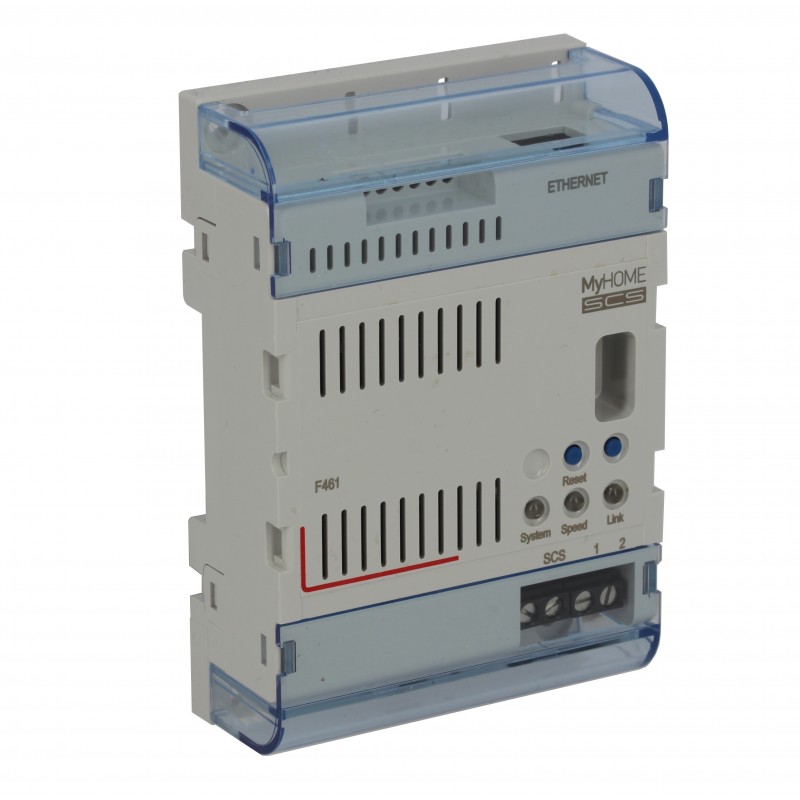

BTICINO F461 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

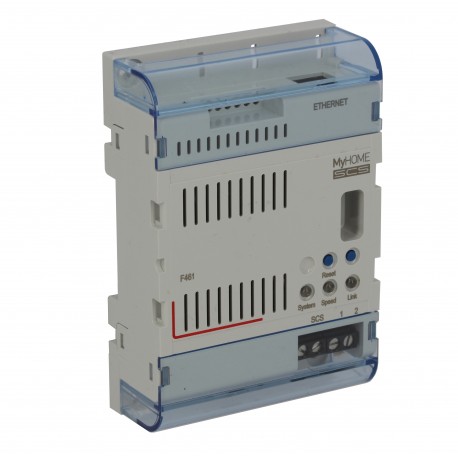

F461 BTCINO MH SERVER SCS 3RD PARTS

Code: F461

Manufacturer: BTICINO

Description:

MH SERVER SCS 3RD PARTS
Server for third-party integration

Categories:

  • Installation bus systems > System interface/media gateway for bus system
  • BTICINO > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 1.929,69 €

Unit Price: 385,938 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

4-module DIN server that allows the integration of third-party systems. For installations with systems such as RTI, Crestron, Control4, Savant. The Home + Project application is used to configure the server, and the end user will be able to use the third-party applications. It cannot be used in a single installation that includes the F460 server.
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsOther
Bidirectional Radio FrequencyNo
ModelEthernet Interface
Type of mountingDRA (DIN rail adapter)
Width in number of modular spaces4
Disassembly ProtectionNo
With LED indicatorYes
UpdatableYes
Operating voltage18-27 V
Type of voltageCC
ProtocolTCP/IP
Supplier dependentNo
VisualizationNo
Web serverYes
Radio InterfaceNo
Infrared interfaceNo
Protection Class (IP)IP30
Width72 mm
Height105 mm
Depth36 mm
Impact resistanceNot applicable
Operating Temperature5-35 °C
Storage temperature-10-70 °C
Nominal current0.003-0.160 A
Display of markings on the connection terminalsYes
Load TypeNot applicable
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeCable
Label Space/Print AreaNo
USB portYes
AddressableYes
Connected ObjectYes
App download platformGoogle Play Store, Mac Apple Store
With voice commandYes
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Supported voice assistantsAmazon Alexa, Google Assistant
Product usage functionControl and command systems
App NameHome + Control
Programming mediumSmartphone apps

ETIM for F461 Installation bus systems (EC001099)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameRadio interface (EF003849)
Feature valueNo
Feature nameUpdateable (EF003903)
Feature valueYes
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameProvider dependent (EF003881)
Feature valueNo
Feature nameModel (EF000010)
Feature valueEthernet interface
Feature nameProtocol (EF003880)
Feature valueTCP/IP
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameIR interface (EF003861)
Feature valueNo
Feature nameOperating voltage (EF003983)
Feature value18 V
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWeb-Server (EF003915)
Feature valueYes
Feature nameDemounting protection (EF003836)
Feature valueNo
Feature nameVisualization (EF003913)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
F461 EN_F461.pdf
211 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
