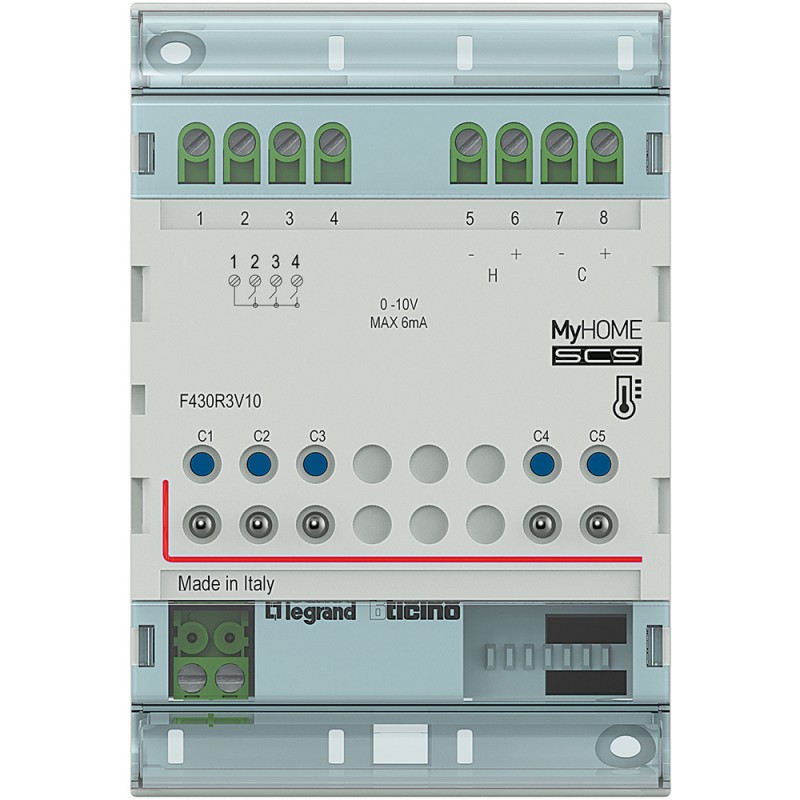

F430R3V10 BTCINO Actuator Termoreg 3S+2x0-10V
F430R3V10
BTICINO
Actuator Termoreg 3S+2x0-10V
Termoreg Actuator 3S+2x0-10V
MyHOME Temperature Control DIN Rail Actuator with 3 Relays and 2 x 0-10V Outputs for Fan Coil Control
Actuator 3 independent relays + 2 outputs 0 - 10V MyHOME - 4mod
Installation bus systems > Switch actuator for bus system
DOMOTICS MY HOME
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | Other |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 4 |
| Local operation/hand operation | Yes |
| With LED indication | Yes |
| Number of digital inputs | 0 |
| Suitable for C-load | No |
|---|---|
| Max. number of switching contacts | 3 |
| Rated current | 4 A |
| Rated operating voltage | 240-240 V |
| Different phases connectable | No |
| With bus connection | Yes |
| Modular expandability | No |
| Degree of protection (IP) | IP20 |
| Connected object | No |
| Product use function | Thermal comfort management |
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of digital inputs (EF001992) | 0 |
| Bus system LON (EF003831) | No |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Bus system KNX (EF001499) | No |
| Bus system Powernet (EF001501) | No |
| Modular expandability (EF006738) | No |
| Bus system radio frequency (EF001500) | No |
| With bus connection (EF001504) | Yes |
| Different phases connectable (EF003905) | No |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Width in number of modular spacings (EF002950) | 4 |
| Max. number of switching contacts (EF001739) | 3 |
| Rated operating voltage (EF001435) | 240 V |
| Rated current (EF000227) | 4 A |
| Suitable for C-load (EF003832) | No |
| Other bus systems (EF003811) | Other |
| Local operation/hand operation (EF003914) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| F430R3V10 EN_F430R3V10.pdf | 516 Kbytes |
|
