BTICINODOMOTICS MY HOMEF411/4 BTCINO ACTUATOR SCS 4 RELAYS 2DIN

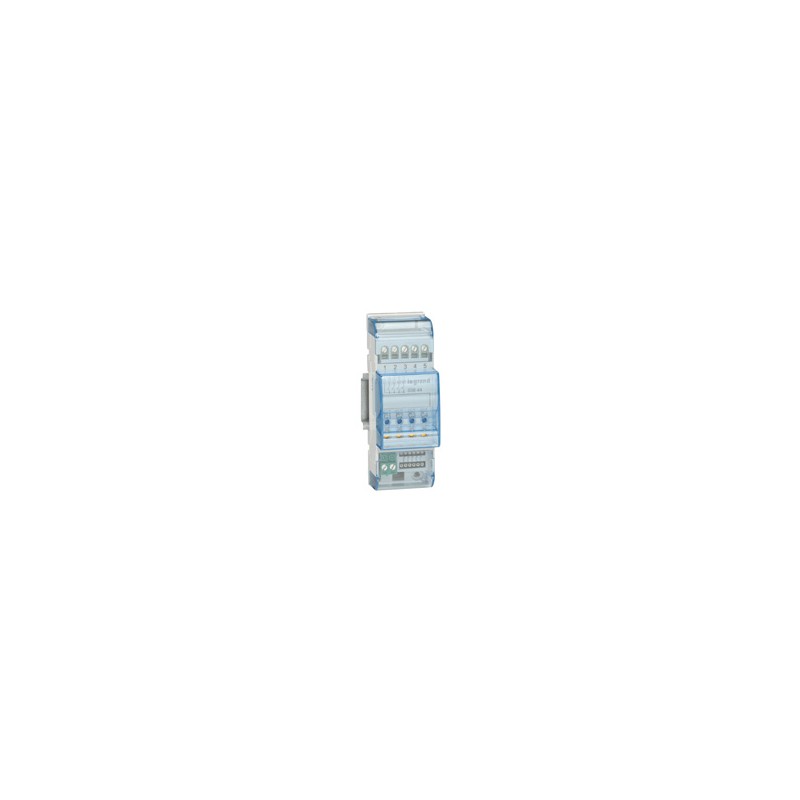

BTICINO F411/4 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

F411/4 BTCINO ACTUATOR SCS 4 RELAYS 2DIN

Code: F411/4

Manufacturer: BTICINO

Description:

ACTUATOR SCS 4 RELAYS 2DIN
SCS 4 RELAY 2DIN ACTUATOR
Actuator 4 relays for lighting/motor MyHOME - 2 modules
4-relay actuator for MyHOME lighting/motor - 2mod

Categories:

  • Installation bus systems > Switch actuator for bus system
  • BTICINO > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 194,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Controllers modular multi-application - no Contact - For rolling shutters and motors 2 modules DIN 17.5 mm - Actuator 4 relays NA independent - To 4 circuits of lighting or 2 engines: - - 2 To filament lamps/halogen - 460 W for engine - 2 At cos phi 0.5 for transformers ferromagnetic - 70 W for fluorescent lamps or electronic transformers - Fluocompacto and LED: a maximum of 2 lamps - Deadlock logic of the relays by configuration - 2 modules DIN

General characteristics

Management of the lighting - modular controllers BUS/SCS - Drivers and interfaces modular connected to the BUS/SCS cable BUS/SCS - Each output is independent and can be associated to a control - 3 methods of addressing with the detectors and controls: - automatic configuration to connect to the electric current, by means of clicking on the module ref. 0 035 70 - custom settings, by pressing the keys "Learn" from the product - configuration software (free download at www.homesystems-legrandgroup.com)

ETIM for F411/4 Installation bus systems (EC001097)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of digital inputs (EF001992)
Feature value0
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameModular expandability (EF006738)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value460 W
Feature nameWith bus connection (EF001504)
Feature valueYes
Feature nameDifferent phases connectable (EF003905)
Feature valueNo
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameMax. number of switching contacts (EF001739)
Feature value4
Feature nameRated operating voltage (EF001435)
Feature value18 V
Feature nameRated current (EF000227)
Feature value2 A
Feature nameSuitable for C-load (EF003832)
Feature valueYes
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
F411/4 EN_F4114.pdf
208 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
