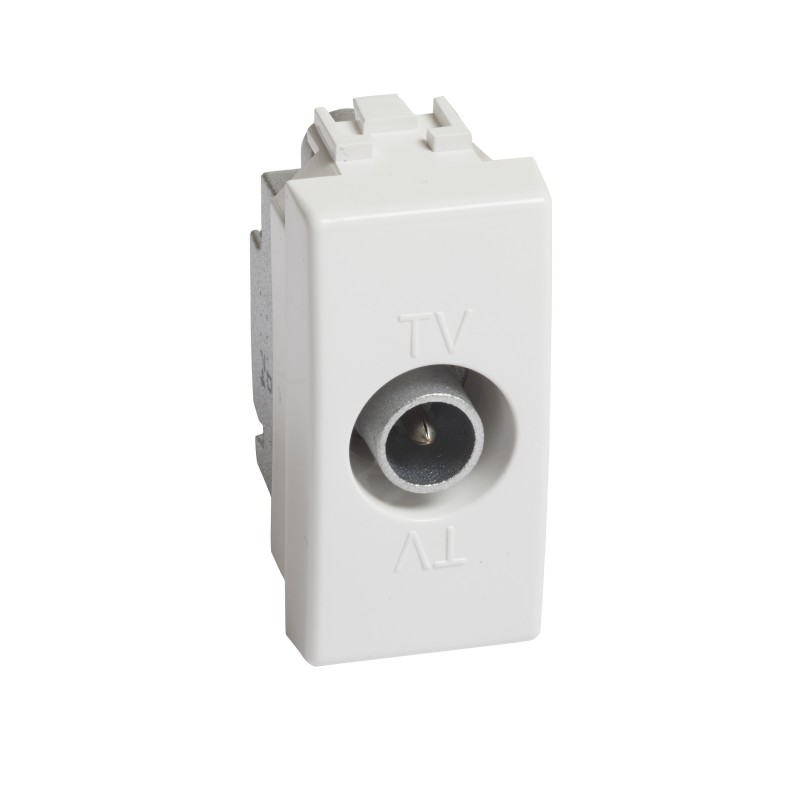

C4202P14 BTCINO LU-BASED TV INTERM 14DB 1M
C4202P14
BTICINO
LU-BASED TV INTERM 14DB 1M
Base TV/SAT - Moon - intermediate - 14 dB - white - 1 module
Intermediate TV/SAT Base - Moon - 14 dB - 1mod - White
Antenna and satellite technique > Antenna socket
LUNA MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Product features
Foundation TV/SAT - TV: 5-68/120-862 MHz R: 87.5-108 MHz - SAT: 950-2400 MHz - intermediate - 14 dB - whiteGeneral characteristics
Moon - bases - tv- white - to equip you with support-and-plate dummy - Mounting with screws or claws - Base coaxial direct (only) to antenna installations individual telealimentadas and centralized facilities and satellite individual and centralized with a passage of power and signals for selection of channels - Bases armoured - TV/SAT: male connector (IEC 9,5 mm) - coaxial Cable recommended: 17/19 VATC| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | TV |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 14 dB |
| Material (EF002169) | Plastic |
| DAB+ (EF011633) | No |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Module frame/grid |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material quality (EF001257) | Urea formaldehyde |
| Number of modules (module system) (EF009573) | 1 |
| Min. depth of built-in installation box (EF012278) | 31 mm |
| Suitable for cable modem (EF001547) | No |
| Surface protection (EF000139) | Lacquered |
| Suitable for remote power supply (EF001548) | No |
| Through loss at 860 MHz (EF000539) | 2 dB |
| Number of outlets (EF000538) | 1 |
| Model (EF000010) | Loop-through socket |
| Cover (EF000055) | Central cover plate |
| Device depth (EF008810) | 31 mm |
| Anti-bacterial treatment (EF023790) | No |
| Device width (EF008808) | 21.8 mm |
| Device height (EF008809) | 47 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
