BT-375013 BTCINO BT/IP-CONTROL RELAY ELEVATOR
Code: BT-375013
Manufacturer: BTICINO
Description:
BT/IP-CONTROL RELAY ELEVATOR
BT/IP-CONTROL ELEVATOR RELAY
Categories:
- BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
- More Info
- Reviews
MORE INFO

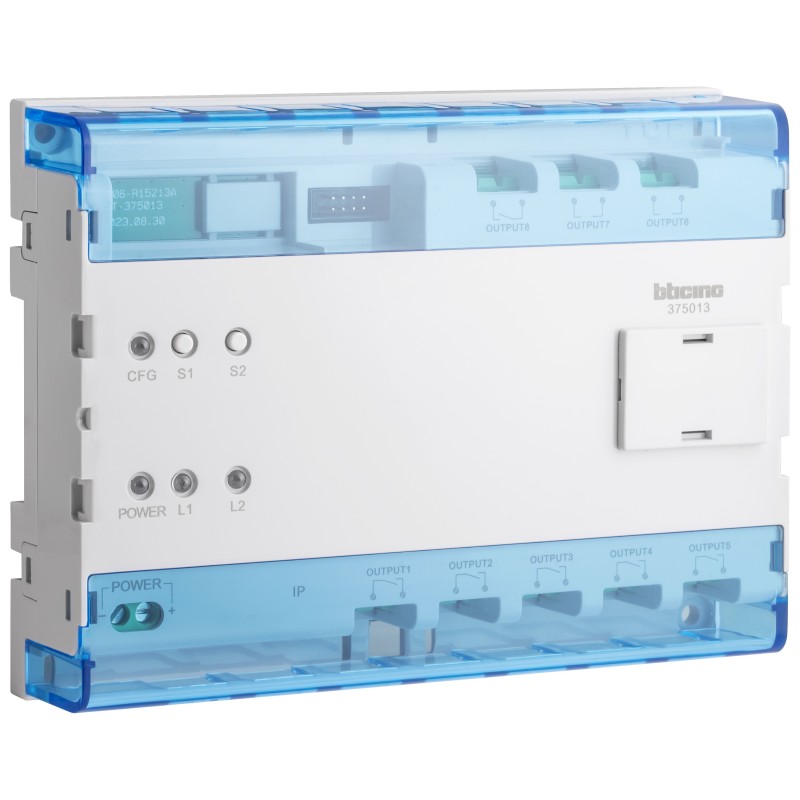

Elevator control interface with 8 relays to integrate the IP DES with the building's elevator system in order to enable the elevator call after the resident answers the call and opens the door.
| KNX bus system | No |
|---|---|
| KNX-RF bus system (radio frequency) | No |
| Radio frequency bus system | No |
| LON Bus System | No |
| Powernet Bus System | No |
| Other bus systems | Other |
| Bidirectional Radio Frequency | No |
| Model | Other |
| Type of mounting | DRA (DIN rail adapter) |
| Width in number of modular spaces | 8 |
| Number of channels | 8 |
| Max. number of devices per channel | 1 |
| Disassembly Protection | No |
| With LED indicator | Yes |
| Updatable | Yes |
| Operating voltage (Min-Max) | 24-24 V |
| Type of voltage | CC |
| Protocol | Other |
| Supplier dependent | No |
| Visualization | No |
| Web server | No |
| Radio Interface | No |
| Infrared interface | No |
| Protection Class (IP) | IP20 |
| Width | 141 mm |
| Height | 105 mm |
|---|---|
| Depth | 33 mm |
| Impact resistance | Not applicable |
| Operating Temperature (Min-Max) | -10-55 °C |
| Storage Temperature (Min-Max) | -25-70 °C |
| Rated Current (Min-Max) | 0.027-0.06 A |
| Display of markings on the connection terminals | Yes |
| Load Type | Not applicable |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.5-0.5 mm² |
| Connection type | Other |
| Label Space/Print Area | No |
| USB port | No |
| Contains battery and/or accumulator | No |
| Addressable | No |
| Connected Object | Yes |
| Method of operation | Net |
| App download platform | Legrand website |
| Programming medium | Computer |
| With voice command | No |
| Programmable | No |
| Possibility of connection via Internet box | No |
| App Name | Home + Security |
| Product usage function | Automatic intercoms |
