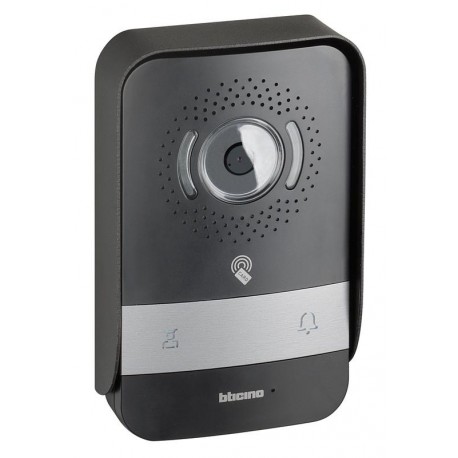

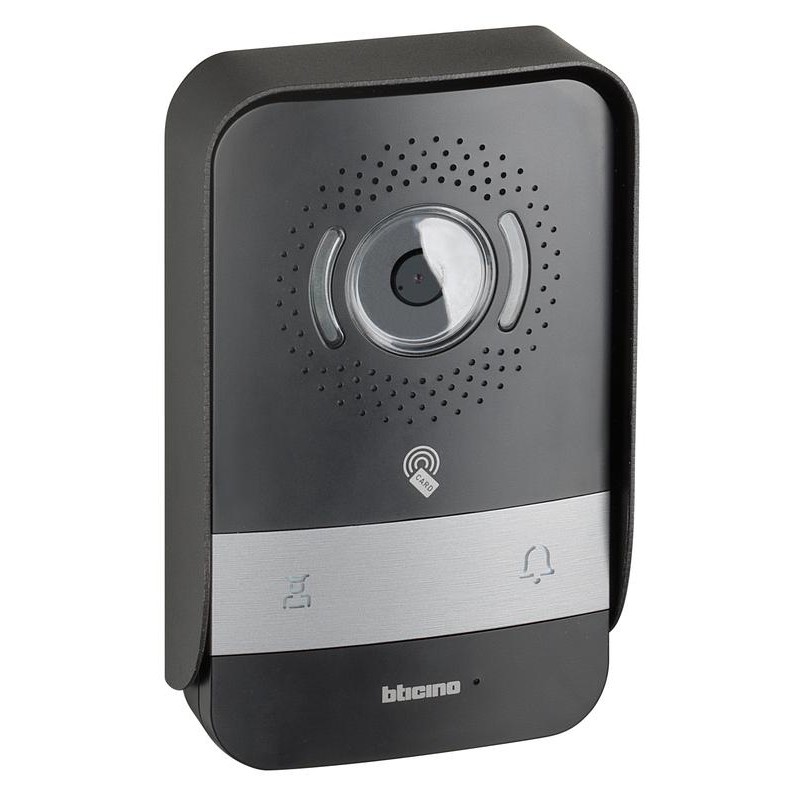

BT-374006 BTCINO BT/IP- COMPACT BOARD
BT-374006
BTICINO
BT/IP- COMPACT BOARD
BT/IP- COMPACT OUTER BOARD
Home > BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Number of Ring/Ring Buttons | 2 |
|---|---|
| Bell buttons material | Plastic |
| Front material | aluminium |
| Front Panel Height | 160.5 mm |
| Faceplate width | 100 mm |
| Installation Depth | 36.6 mm |
| Type of mounting | Surface mounted (plaster) |
| Installation technology | Bus System |
| Colour | Black |
| Protection Class (IP) | IP54 |
| Impact resistance | IK07 |
| Operating Temperature (Min-Max) | -10-50 °C |
| Storage Temperature (Min-Max) | -25-70 °C |
| Type of voltage | AC/DC |
| Sound Level | 80 dB |
| Standby consumption | 40 mA |
| Halogen-free | Yes |
| Connection Cable Type | Flexible |
| Core Cross Section (Min-Max) | 1-2.5 mm² |
| Label Space/Print Area | Yes |
| Equipped with waterproof plate protection | Yes |
| With signal lamp | No |
|---|---|
| Control Mode | Wired |
| Hands-free | Yes |
| Volume control | Yes |
| Addressable | No |
| Remote opening of the electric gate/door opener | No |
| Camera Type | Adjustable |
| Camera viewing angle | 95 ° |
| Maximum distance between hob and indoor unit | 150 m |
| Communication Classification Type | 2 |
| Connected Object | Yes |
| Method of operation | Net |
| App download platform | App Store, Google Play Store |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | Yes |
| Programming medium | Web software |
| App Name | Home + Security |
| Product usage function | Automatic intercoms |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
