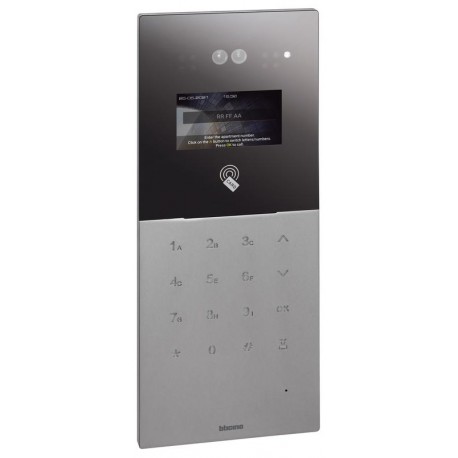

BT-374003 BTCINO BT/IP-KEYBOARD BOARD
Code: BT-374003
Manufacturer: BTICINO
Description:
BT/IP-KEYBOARD BOARD
BT/IP-OUTER BOARD WITH KEYPAD
Categories:
- BTICINO
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
- More Info
- Reviews
LAST VIEWED
MORE INFO

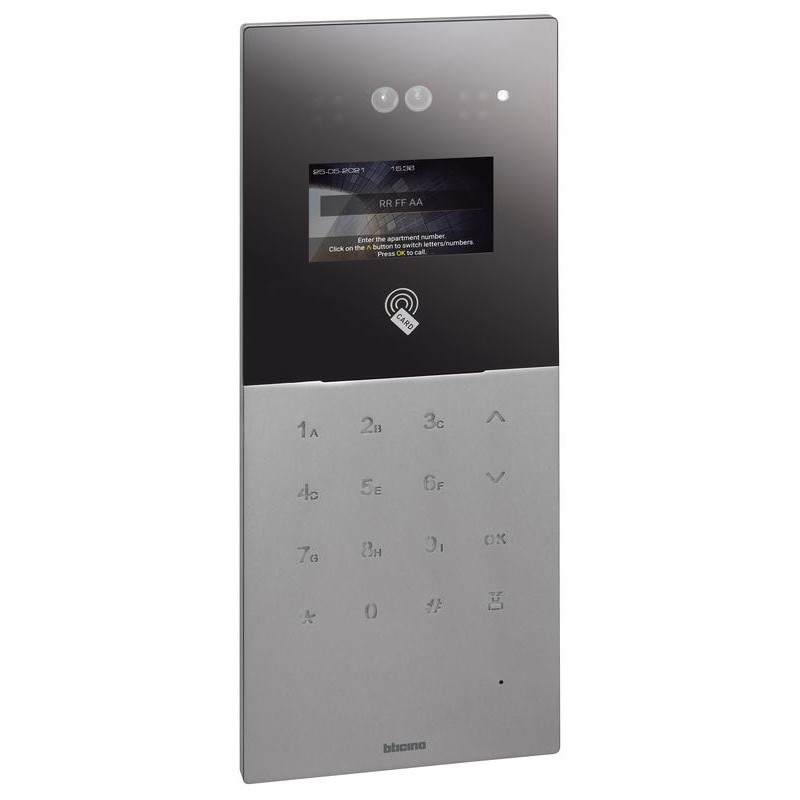

Exterior plate with 4.3" screen, keypad and ID card reader. From the keypad it is possible to make calls to the apartments and the concierge center and enter the access code to unlock the lock.
| Number of Ring/Ring Buttons | 0 |
|---|---|
| Front material | Other |
| Front Panel Height | 400 mm |
| Faceplate width | 160 mm |
| Installation height | 384 mm |
| Mounting width | 149 mm |
| Installation Depth | 60 mm |
| Type of mounting | Recessed mounted (plaster) |
| Installation technology | Network Technology |
| Modular design | No |
| Colour | Silver |
| Protection Class (IP) | IP54 |
| Impact resistance | IK07 |
| Operating Temperature (Min-Max) | -40-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Type of voltage | CC |
| Nominal Voltage (Min-Max) | 24-24 V |
| Rated Current (Min-Max) | 0.65-0.65 A |
| Halogen-free | Yes |
| Connection Cable Type | Flexible or rigid |
| Core Cross Section (Min-Max) | 0.8-0.8 mm² |
| Label Space/Print Area | No |
|---|---|
| Equipped with waterproof plate protection | No |
| With signal lamp | No |
| Contains battery and/or accumulator | No |
| Hands-free | Yes |
| Volume control | Yes |
| Addressable | Yes |
| Doorman with mobile app | No |
| Remote opening of the electric gate/door opener | Yes |
| Camera Type | Night vision |
| Camera viewing angle | 80 ° |
| Communication Classification Type | Other |
| Connected Object | Yes |
| Method of operation | Net |
| App download platform | App Store, Google Play Store |
| With voice command | No |
| Programmable | Yes |
| Programming medium | Web software |
| Possibility of connection via Internet box | No |
| App Name | Home + Security |
| Product usage function | Automatic intercoms |
