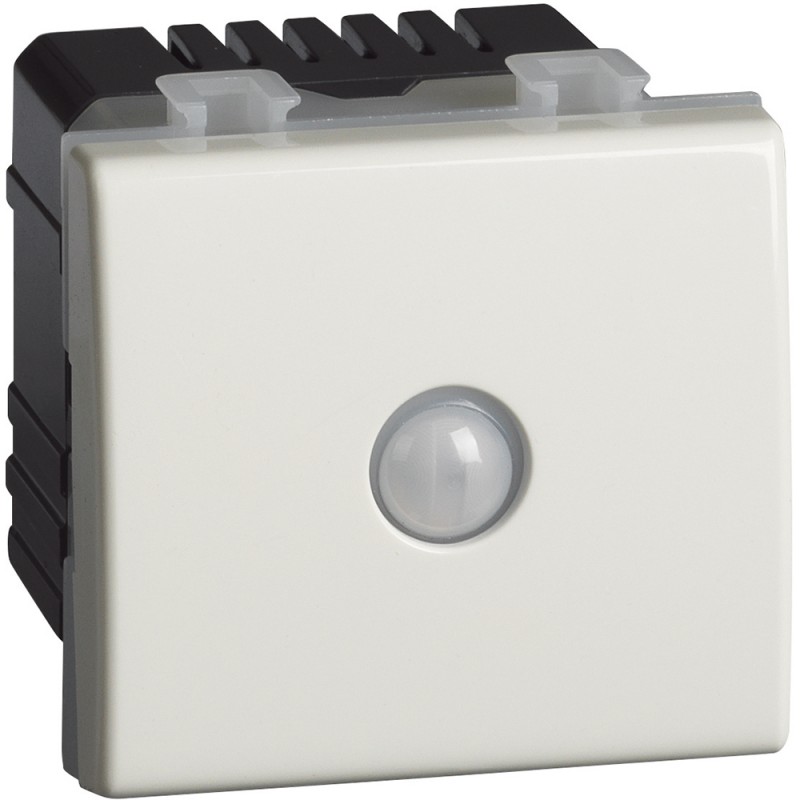

AM5003ES BTCINO MX-INT SAVINGS JAN 230V 2M WHITE
AM5003ES
BTICINO
5
MX-INT SAVINGS JAN 230V 2M WHITE
Switch to energy saving Màtix - 2 modules - white
Màtix Energy Saving Switch - 2mod - White
Domestic switching devices > Movement sensor complete
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Product features
Switch to energy saving - 230 Vac - 2 modules - White Is installed and works as a switch/switch traditional, but allowing the auto-shut off the light after 10 minutes, if no one passes by in front of the sensor an integrated IR - The IR sensor has a range of 8 meters and a coverage of 160° - Compatible with all lamps: - 12-150 W halogen or incandescent - 2-150 VA: lamps with electronic transformer, or ferromagnetic - 8-30 W (or 650mA): LED and CFL Possibility of mixing all types of lamps on the same circuit - it Is ideal for places where the light stays on unnecessarily, such as: kids room, hallway, garage.General characteristics
Màtix - detectors Is ideal for places where the light stays on unnecessarily, such as: kids room, hallway, garage.| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | Yes |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 600 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 160 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 10 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK02 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 0.05 A |
| Connection cable length (EF003636) | 0 mm |
| Substation input (EF003876) | Yes |
| Colour (EF000007) | White |
| Width (EF000008) | 47 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Control current (EF003894) | 0.05 mA |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Forced switch off (EF003920) | Yes |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 47 Hz |
| Built-in depth (EF000218) | 43.5 mm |
| Remote operation (EF003848) | No |
| Switch-off delay (EF000194) | 600 s |
| Constant light control (EF003863) | No |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Number of switching zones (EF009568) | 0 |
| Max. reach frontally (EF001322) | 8 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | No |
| Response value luminosity (EF003814) | 0 lx |
| HVAC-control (EF003858) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
