BTICINOMATIX MECHANISMSA5781 BTCINO MX-LED LAMP 1M

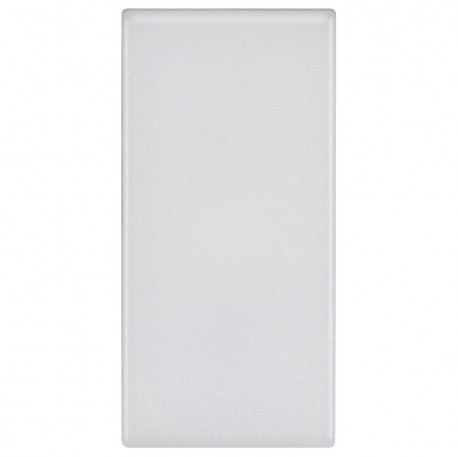

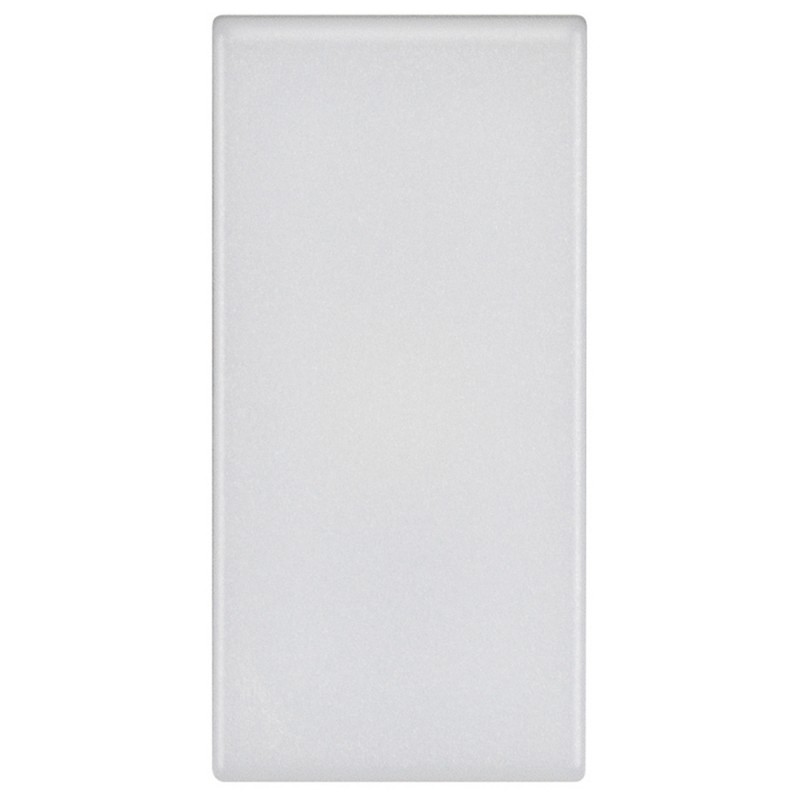

BTICINO A5781 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

A5781 BTCINO MX-LED LAMP 1M

Code: A5781

Manufacturer: BTICINO

Description:

MX-LED LAMP 1M
Emergency lamp LED Màtix - 1 module
Màtix LED emergency lamp - 1mod

Categories:

  • Luminaires > Ceiling-/wall luminaire
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 662,63 €

Unit Price: 66,263 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Emergency lamp LED with auto on in case of lack of tension of network. 230 Vac 50/60 Hz - consumption 2.5 VA (0.1 W) - battery rechargeable, non-replaceable NiMH 3.6 V 140 mAh battery - full recharge in 48 h - autonomy: 2 h - maximum Section of the cables 1 x 1,5 mm2 - luminous intensity to 2,400 mcd - angle of emission 120° - non-removable - 1 module

General characteristics

Màtix - lighting, buoys, signaling and security

ETIM for A5781 Luminaires (EC002892)

Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameWith control gear (EF007556)
Feature valueNo
Feature nameSuitable for surface mounting (EF007793)
Feature valueNo
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameLight distribution (EF004283)
Feature valueSymmetric
Feature nameLight outlet (EF004282)
Feature valueDirect
Feature nameBuilt-in height/depth (EF023518)
Feature value49.2 mm
Feature nameWith light sensor (EF001203)
Feature valueYes
Feature nameMax. system power (EF009347)
Feature value0.0 W
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameNominal current (EF009345)
Feature value15 mA
Feature nameDimming DSI (EF012188)
Feature valueNo
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value49.2 mm
Feature nameWidth (EF000008)
Feature value23.4 mm
Feature nameBuilt-in length (EF004265)
Feature value47 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP41
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameWith movement sensor (EF000197)
Feature valueNo
Feature nameSuitable for emergency lighting (EF004275)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameDimming manufacturer's proprietary system (EF012159)
Feature valueNo
Feature nameSuitable for light line configuration (EF004274)
Feature valueNo
Feature nameDimming phase cut-on (leading edge) (EF012162)
Feature valueNo
Feature nameDimming programmable (EF012163)
Feature valueNo
Feature nameDimming RF (EF012164)
Feature valueNo
Feature nameDimming Sine Wave Reduction (EF012165)
Feature valueNo
Feature nameDimming Touch and Dim (EF012166)
Feature valueNo
Feature nameDimming Zigbee (EF012167)
Feature valueNo
Feature nameDimming with push-button (EF012168)
Feature valueNo
Feature nameLength (EF001438)
Feature value51 mm
Feature nameDimming mains voltage modulation (EF012160)
Feature valueNo
Feature nameDimming phase cut-off (trailing edge) (EF012161)
Feature valueNo
Feature nameCovering of the luminaire with thermally insulating material possible (EF006423)
Feature valueNo
Feature nameType of grid (EF000282)
Feature valueWhite
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameColour rendering index CRI (EF000442)
Feature value80-89
Feature nameWith air slots (EF009372)
Feature valueYes
Feature nameSuitable for lamp power (EF000280)
Feature value0.1 W
Feature nameDimming 0-10 V (EF012152)
Feature valueNo
Feature nameDimming 1-10 V (EF012153)
Feature valueNo
Feature nameDimming DALI (EF012154)
Feature valueNo
Feature nameDimming DMX (EF012155)
Feature valueNo
Feature nameDimming potentiometer (integrated) (EF012156)
Feature valueNo
Feature nameDimming LineSwitch (EF012158)
Feature valueNo
Feature nameSuitable for suspended mounting (EF001265)
Feature valueNo
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameBuilt-in width (EF000846)
Feature value23.4 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant voltage
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSuitable for workplace according to EN 12464-1 (EF007694)
Feature valueNo
Feature nameSuitable for built-in mounting (EF006760)
Feature valueYes
Feature nameColour of light (EF009350)
Feature valueWhite
Feature nameHousing colour (EF000136)
Feature valueWhite
Feature nameRated ambient temperature according to IEC 62722-2-1 (EF012090)
Feature value-5 °C
Feature nameBeam angle (EF008157)
Feature valueExtreme wide beam >80°
Feature nameSuitable for wall mounting (EF000664)
Feature valueYes
