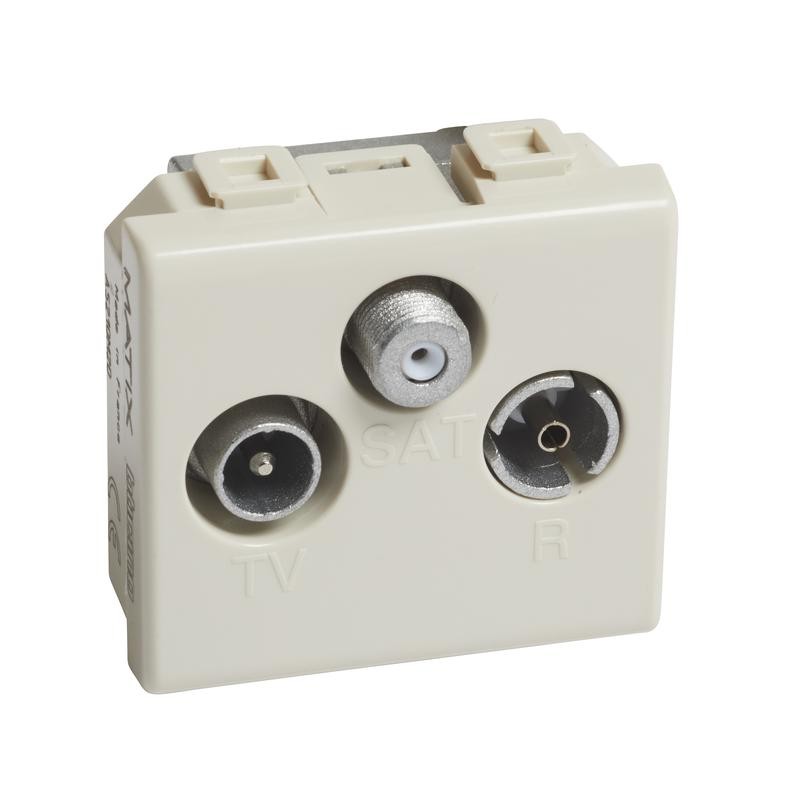

A5210M2D BTCINO MX-BASE TV-R-SAT ONLY 2M MARF
A5210M2D
BTICINO
5
MX-BASE TV-R-SAT ONLY 2M MARF
MX-BASE TV-R-SAT UNICA 2M MARF
Base TV-R-SAT - Màtix - unique - 1.5 dB - 2400 MHz - ivory - 2 modules
Unique TV-R-SAT Base - Portable - 1.5 dB - 2400 MHz - 2mod - Ivory
Antenna and satellite technique > Antenna socket
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Product features
Bases TV-R-SAT - TV: 5-68/120-862 MHz R: 87.5-108 MHz - SAT: 950-2400 MHz - adapted to the reception of DTT, satellite and cable television - compatible with Ultra High Definition - a single, shielded, Class A, compatible with 4G LTE - 1.5 dB - ivoryGeneral characteristics
Màtix - bases of tv - ivory - to equip you with support-and-plate dummy - Mounting with screws or claws - Base coaxial direct (only) to antenna installations individual telealimentadas and centralized facilities and satellite individual and centralized with a passage of power and signals for selection of channels - Bases armoured - TV/SAT: male connector (IEC 9,5 mm) - coaxial Cable recommended: 17/19 VATC| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | TV/RD/SAT |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 1.5 dB |
| Material (EF002169) | Plastic |
| DAB+ (EF011633) | No |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Module frame/grid |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material quality (EF001257) | Urea formaldehyde |
| Tap loss at 2150 MHz (EF003499) | 2 dB |
| Number of modules (module system) (EF009573) | 2 |
| Min. depth of built-in installation box (EF012278) | 31 mm |
| Suitable for cable modem (EF001547) | No |
| Surface protection (EF000139) | Lacquered |
| Suitable for remote power supply (EF001548) | No |
| Number of outlets (EF000538) | 3 |
| Model (EF000010) | Loop-through socket |
| Cover (EF000055) | Central cover plate |
| Device depth (EF008810) | 31 mm |
| Anti-bacterial treatment (EF023790) | No |
| Device width (EF008808) | 47 mm |
| Device height (EF008809) | 47 mm |
| Colour (EF000007) | Beige |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
