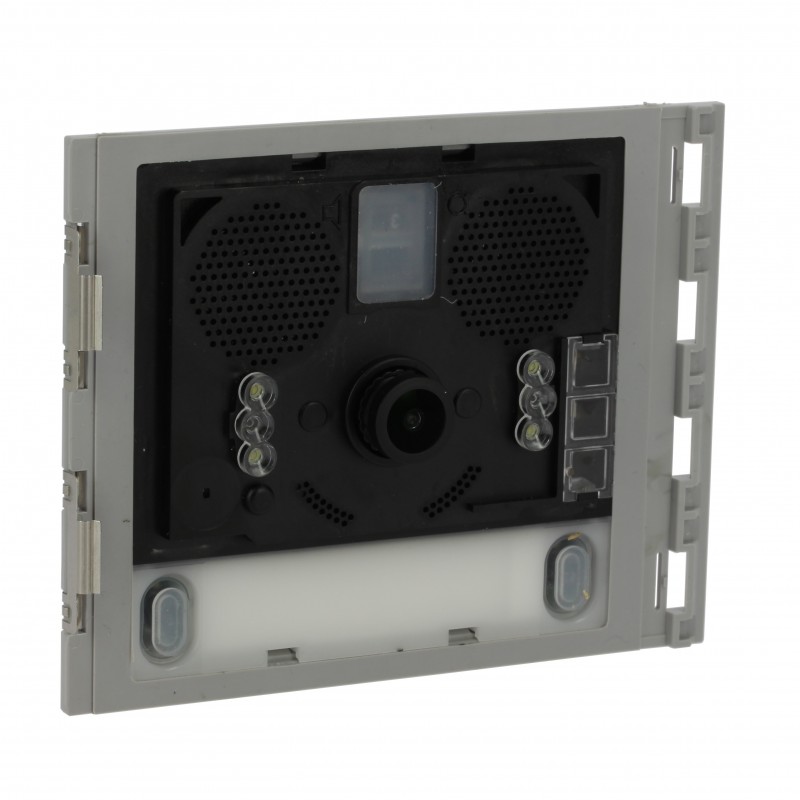

BTICINO 351500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

351500 BTCINO BT/2H NEW A/V MODULE SFERA

Code: 351500

Manufacturer: BTICINO

Description:

BT/2H NEW A/V MODULE SFERA
Audio/video module with HQ color camera for 2-wire systems for SFERA NEW & ROBUR boards
2-wire audio/video module for SFERA NEW & ROBUR boards

Categories:

  • Communication technique > Push button panel door communication
  • BTICINO > PLATES AND DOOR PHONES EQUIPMENT

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 234,12 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Sfera audio-video module with HQ camera for the creation of 2-WIRE video systems. Equipped with a 5 MPx wide-angle HQ color camera with digital filters and white LEDs for illumination of the shooting field. The HQ digital video signal is transmitted to the video doorbells using PAL encoding in 2-wire SCS BUS technology. Speaker and microphone volume settings. Handles up to a maximum of 98 pushbutton calls, using additional pushbutton modules in two columns. horizontal viewing angle (119°), vertical viewing angle (92°). Allows the activation of an electric lock connected directly to the S+ and S- terminals (18V 4 A impulsive - maintenance 250mA at 30 Ohm max) and the connection of a local door opener button to the PL terminals. Prepared for additional power. Equipped with front LEDs to indicate the operating status: door opener, active communication, call forwarded and system busy. Integrated optical sensor to turn on the backlight at night. To be completed with a finishing faceplate. The device must be configured physically or by PC and specific software.
Number of Ring/Ring Buttons2
Bell buttons materialPlastic
Front materialOther
Front Panel Height91 mm
Faceplate width115 mm
Installation Depth20 mm
Type of mountingRecessed mounted (plaster)
Installation technologyBus System
ColourOther
Protection Class (IP)IP54
Impact resistanceIK07
Operating Temperature-25-70 °C
Storage temperature-25-70 °C
Type of voltageAC/DC
Nominal Voltage20-27 V
Nominal current0.0125-0.165 A
Sound Level80 dB
Standby consumption20 mA
Halogen-freeYes
Connection Cable TypeFlexible
Core cross-section1-2.5 mm²
Label Space/Print AreaYes
Equipped with waterproof plate protectionYes
With signal lampNo
Control ModeWired
Contains battery and/or accumulatorNo
Hands-freeYes
Volume controlYes
AddressableNo
Doorman with mobile appYes
Remote opening of the electric gate/door openerNo
Camera TypeAdjustable
Camera viewing angle151 °
Maximum distance between hob and indoor unit200 m
Communication Classification TypeOther
IEC DesignationNot applicable
Battery or accumulator (Pack1)Not applicable
Item Composition (Pack1)Not applicable
Connected ObjectNo

ETIM for 351500 Communication systems (EC001351)

Feature nameMaterial call buttons (EF002760)
Feature valuePlastic
Feature nameNumber of call buttons (EF001472)
Feature value2
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameFront plate width (EF004689)
Feature value115 mm
Feature nameInstallation technique (EF001474)
Feature valueBus system
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameFront plate height (EF004690)
Feature value91 mm
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMaterial front (EF021008)
Feature valueOther
Feature nameColour (EF000007)
Feature valueOther
Feature nameBuilt-in depth (EF000218)
Feature value20 mm
