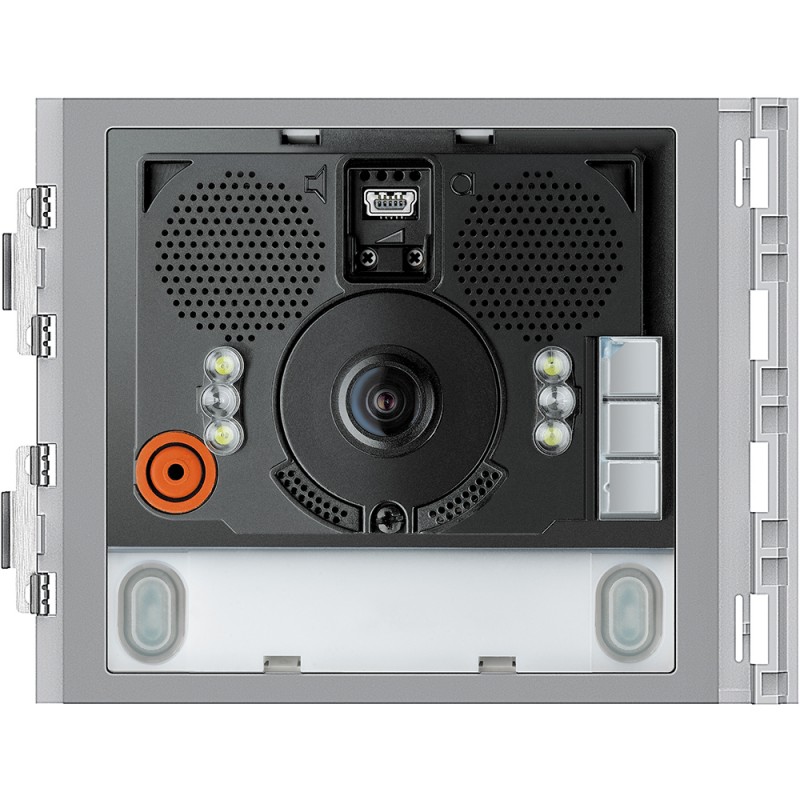

BTICINO 351300 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

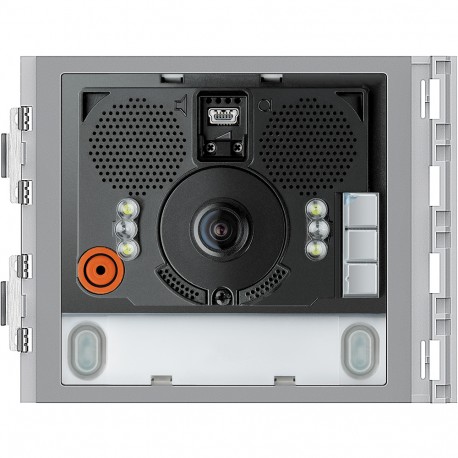

351300 BTCINO BT/2H-MÓD.A/V G. OPENING

Code: 351300

Manufacturer: BTICINO

Description:

BT/2H-MÓD.A/V G. OPENING
BT/2H-MODE. A/V G.APERTURE
Sfera Modular Entrance Panel Audio Video Wide Angle Camera Module
Large aperture audio/video module 2 wires for SFERA NEW & ROBUR boards

Categories:

  • Communication technique > Push button panel door communication
  • BTICINO > PLATES AND DOOR PHONES EQUIPMENT

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Number of call buttons2
Material call buttonsPlastic
Material frontOther
Front plate height91 mm
Front plate width115 mm
Built-in depth20 mm
Mounting methodFlush-mounted
Installation techniqueBus system
ColourOther
Degree of protection (IP)IP54
degree of impact strength (IK)IK07
Operating / setting temperature-15-50 °C
Storage temperature-20-70 °C
Voltage typeAC/DC
Nominal voltage18-27 V
Supply current0.04-1 A
Frequency50-60 Hz
Sound level80 dB
Standby consumption40 mA
Halogen freeYes
Cable nature for connectionFlexible
Cable section1-2.5 mm²
Label space/information surfaceYes
Fitted with rainproof plate protectionYes
With complemantary luminous signalNo
Control modeWired
Contains Batteries and/or AccumulatorNo
Hands freeYes
Loudness settingYes
AddressableNo
Door entry system with mobile applicationYes
Remote opening of gate / Electric door openerYes
Camera typeAdjustable
Video recorder angle100 °
Max distance between internal and external unit150 m
Communication rank typeOther
IEC code (Pack1)Not applicable
Battery ou Accumulator (Pack1)Not applicable
Element Composition (Pack1)Not applicable
Connected objectNo

ETIM for 351300 Communication systems (EC001351)

Feature nameMaterial call buttons (EF002760)
Feature valuePlastic
Feature nameNumber of call buttons (EF001472)
Feature value2
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameFront plate width (EF004689)
Feature value115 mm
Feature nameInstallation technique (EF001474)
Feature valueBus system
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameFront plate height (EF004690)
Feature value91 mm
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMaterial front (EF021008)
Feature valueOther
Feature nameColour (EF000007)
Feature valueOther
Feature nameBuilt-in depth (EF000218)
Feature value20 mm
