346050 BTCINO BT/2H-ALIM+ADAPT.VINE.1.2 TO 6DIN
346050
BTICINO
BT/2H-ALIM+ADAPT.VINE.1.2 TO 6DIN
BT/2H-ALIM+ADAPT. VID.1,2A 6DIN

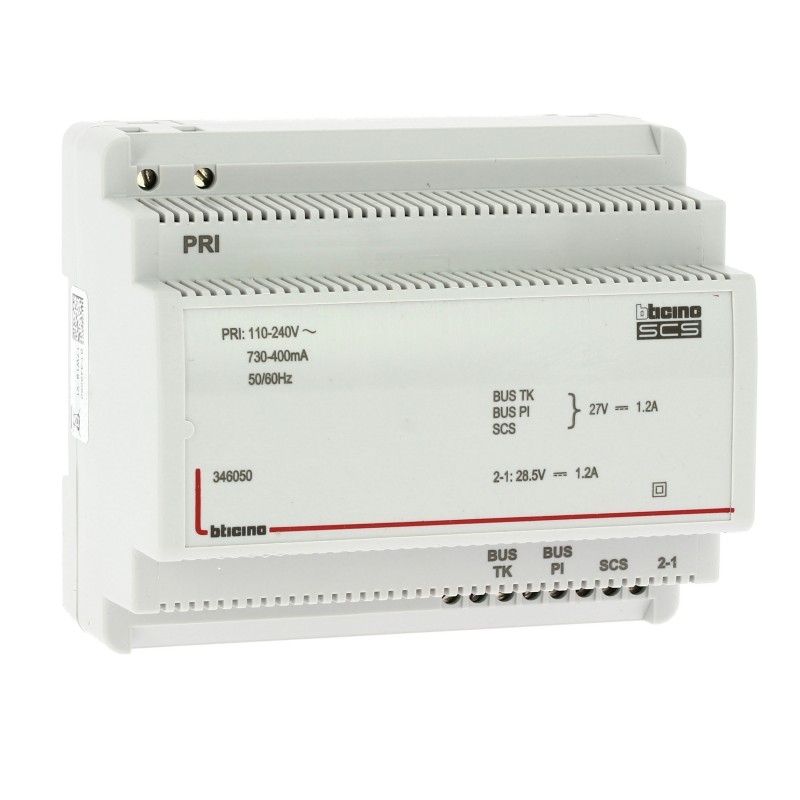

Bticino 6 DIN Audio Video System Power Supply Unit
Compact 6mod DIN feeder
Communication technique > Power supply door communication
DOOR PHONES
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Application | Video |
|---|---|
| Input voltage | 240 V |
| Frequency | 50-60 Hz |
| Type of current | AC |
| Output voltage | 27 V |
| Degree of protection (IP) | IP20 |
| Height | 90 mm |
| Width | 105 mm |
| Depth | 65 mm |
| Installation technique | Bus system |
|---|---|
| Integrated door opening circuit | Yes |
| Control function | No |
| Evaluation function | No |
| Number of connectable participators | 2 |
| Service indication | No |
| Mounting method | DIN rail |
| Programming lock | No |
| Feature Name | Feature Value |
|---|---|
| Application (EF000041) | Video |
| Height (EF000040) | 90 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Service indication (EF002686) | No |
| Installation technique (EF001474) | Bus system |
| Type of current (EF000143) | AC |
| Mounting method (EF000003) | DIN rail |
| Evaluation function (EF003322) | No |
| Integrated door opening circuit (EF002684) | Yes |
| Control function (EF002685) | No |
| Programming lock (EF008023) | No |
| Number of connectable participators (EF002729) | 2 |
| Depth (EF000049) | 65 mm |
| Input voltage (EF000106) | 240 V |
| Frequency (EF000416) | 50 Hz |
| Width (EF000008) | 105 mm |
| Output voltage (EF000107) | 27 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| 346050 EN_346050.pdf | 144 Kbytes |
|
