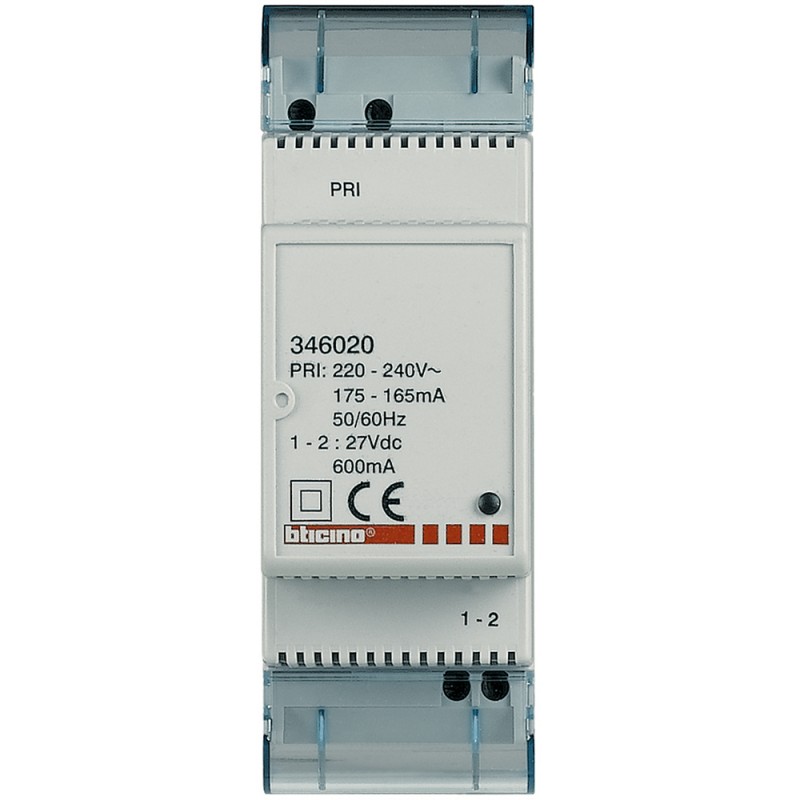

346020 BTCINO BT/2H-ALIM.SUPPL.0.6 TO 2DIN
346020
BTICINO
BT/2H-ALIM.SUPPL.0.6 TO 2DIN
BT/2H-ALIM. SULP.0.6A 2DIN
Bticino 2 DIN Additional Power Supply Unit
Supplementary 2-wire feeder 2mod DIN
Low-voltage industrial components > DC-power supply
VIDEO DOOR PHONES
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲| Voltage type (supply voltage) | DC |
|---|---|
| 1st secondary output voltage | 26.9-27.1 V |
| Max. output current 1 | 0.6 A |
| Secondary voltage adjustable | No |
| Short-circuit-proof | Yes |
| Rated supply voltage AC 50 Hz | 220-240 V |
| Rated supply voltage AC 60 Hz | 220-240 V |
| Output voltage stabilized | Yes |
| Power consumption | 41.8 VA |
| Power output | 16.2 W |
| Stabilized | Yes |
| Type of electric connection | Screw connection |
|---|---|
| Suitable for rail mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for distribution board | Yes |
| Width in number of modular spacings | 2 |
| Direct mounting possible | No |
| Width | 33.9 mm |
| Height | 89.7 mm |
| Depth | 66.2 mm |
| Suitable for safety functions | No |
| Degree of protection (IP) | IP30 |
| Feature Name | Feature Value |
|---|---|
| Power output (EF003034) | 16.2 W |
| Height (EF000040) | 89.7 mm |
| Degree of protection (IP) (EF005474) | IP30 |
| Wall mounting possible (EF003973) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 220 V |
| Rated supply voltage AC 60 Hz (EF007077) | 220 V |
| Short-circuit-proof (EF007332) | Yes |
| Max. output current 1 (EF008284) | 0.6 A |
| Modular version (EF001126) | Yes |
| Voltage type (supply voltage) (EF002991) | DC |
| Width in number of modular spacings (EF002950) | 2 |
| Direct mounting possible (EF005689) | No |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 26.9 V |
| Secondary voltage adjustable (EF007002) | No |
| Depth (EF000049) | 66.2 mm |
| Power consumption (EF000346) | 41.8 VA |
| Width (EF000008) | 33.9 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| 346020 EN_346020.pdf | 160 Kbytes |
|
