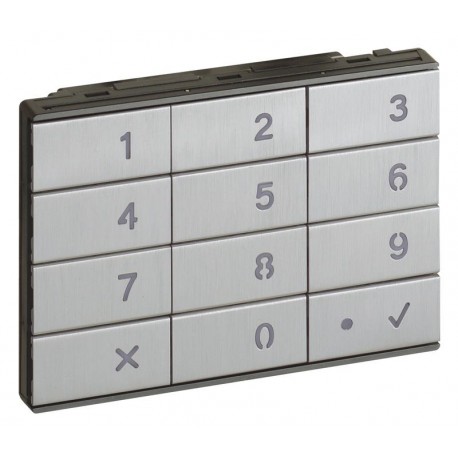

345500 BTCINO BT-L5000 AL KEYBOARD MODULE
345500
BTICINO
BT-L5000 AL KEYBOARD MODULE
Additional keyboard module for the L5000 plate in aluminum
L5000 Additional Keyboard Module in Aluminium
Communication technique > Functional module for door communication
VIDEO INTERCOM CONNECTED
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲| Model | Push button |
|---|---|
| Biometric Reading Process | No |
| Reading method code | Yes |
| Installation technology | Bus System |
| Flush mounting | Yes |
| Surface mounting | Yes |
| With housing | No |
| Suitable for outdoor applications | Yes |
| Suitable for indoor applications | Yes |
| Room Temperature (Min-Max) | -25-70 °C |
| Width | 124 mm |
| Height | 91 mm |
| Depth | 35 mm |
| Current Type (Input) | CC |
| Operating voltage (Min-Max) | 18-27 V |
| Housing material | Plastic |
| Number of Ring/Ring Buttons | 12 |
| Contains keyboard | Yes |
| With day/night function | No |
| Compatible with hearing aids | No |
|---|---|
| Colour | aluminium |
| Installation Depth | 23 mm |
| Impact resistance | IK08 |
| Protection Class (IP) | IP65 |
| Storage Temperature (Min-Max) | -25-70 °C |
| Halogen-free | Yes |
| Label Space/Print Area | No |
| Connected Object | No |
| Method of operation | SCS, Bluetooth |
| App download platform | Google Play Store, App Store |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| App Name | Home + Project , Home + Security |
| Product usage function | Automatic intercoms |
| Programming medium | Apps |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 91 mm |
| Hearing aid compatible (EF004782) | No |
| Type of voltage (input voltage) (EF003033) | DC |
| Number of call buttons (EF001472) | 12 |
| Housing material (EF001596) | Plastic |
| Contains keypad (EF007158) | Yes |
| Installation technique (EF001474) | Bus system |
| Reading strategy code (EF016238) | Yes |
| Reading strategy biometric (EF016237) | No |
| Surface mounting (EF003681) | Yes |
| Model (EF000010) | Push button |
| Suitable for outdoor installation (EF011885) | Yes |
| With housing (EF001102) | No |
| Operating voltage (EF003983) | 18 V |
| Suitable for indoor installation (EF011884) | Yes |
| With day/night function (EF021124) | No |
| Depth (EF000049) | 35 mm |
| Colour (EF000007) | Aluminium |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 124 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| 345500 EN_345500.pdf | 326 Kbytes |
|
