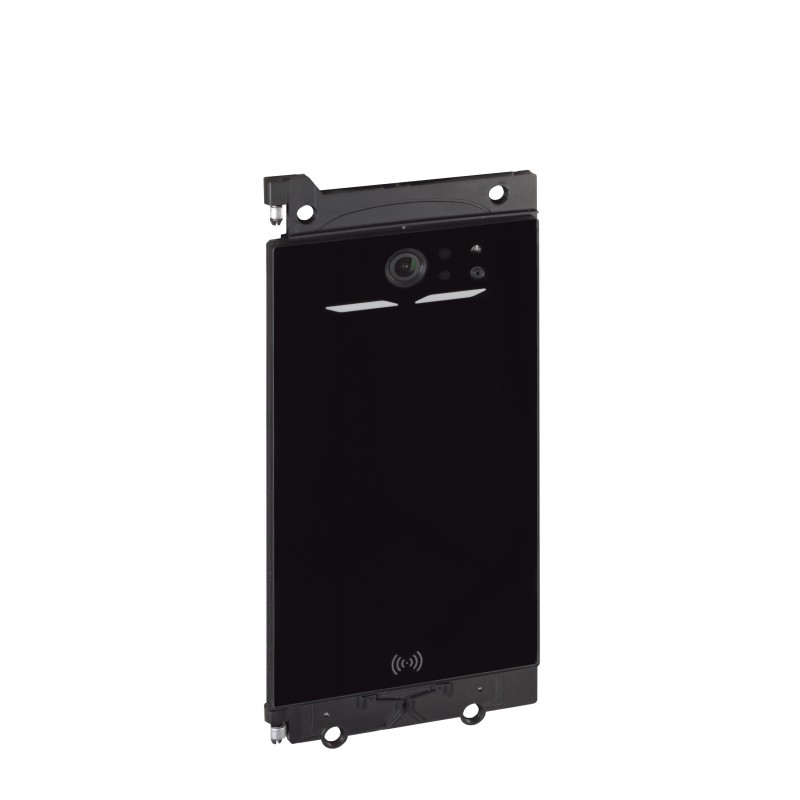

345000 BTCINO BT-L5000 DISPLAY MODULE
345000
BTICINO
BT-L5000 DISPLAY MODULE
7" vertical L5000 display module with wide-angle HQ camera (5 M pixels)
Display module 7" vertical L5000
Communication technique > Functional module for door communication
VIDEO INTERCOM CONNECTED
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Related products
▲Best sellers
▲More info
▲
Display and audio/video module that is combined with one of the 5 frames in different finishes for 2-wire installations. Equipped with an HQ camera with a wide-angle field of view (119° horizontal - 151° diagonal), white LEDs for illumination and a twilight sensor for night vision. High-resolution 7" touchscreen with anti-shatter glass (IK08), anti-fingerprint and proximity sensor for automatic ignition. Equipped with digital microphone and echo canceller for optimal sound. The flexible and easy-to-use graphical interface adapts to all types of homes and allows you to choose between 3 different call modes: call with address book (list of residents' names), call with numeric or alphanumeric code, and call with logic code building-staircase-floor-apartment. The direct call to the concierge center and logo customization on the homepage also make it suitable for concierge environments or commercial establishments. Thanks to its advanced features such as voice prompt, automatic background change (light/dark), message personalization or welcome instructions and temporary access codes, it is suitable for residents and visitors of all ages and abilities. It also supports different modes of access to the building: code opening, with RFID electronic keys or with Bluetooth via the Home + Security App, the resident app. Programming and setup require the use of the Home + Project app (App or PC), a digital tool for professionals. With this tool, you can carry out all the configuration from your office, share it with other professionals and upload it to the display module via Bluetooth. Changes to residents' names and access codes are made quickly and intelligently, on-site (via Bluetooth) or remotely (if the module is connected via Wi-Fi or Ethernet). Installation with recessed box for 3 375603 modules or surface box 345331 or 345332. The book-type opening of the module allows for simple and manageable wiring. It allows the activation of an electric lock connected directly to the S+ and S- terminals (18 V pulses 4 A - 250 mA maintained above 30 ohms maximum) and the connection of a local opening button on the PL terminals.
| Model | Call Display |
|---|---|
| Biometric Reading Process | No |
| Reading method code | Yes |
| Installation technology | Bus System |
| Flush mounting | Yes |
| Surface mounting | Yes |
| With housing | No |
| Suitable for outdoor applications | Yes |
| Suitable for indoor applications | Yes |
| Room Temperature (Min-Max) | -25-70 °C |
| Width | 127 mm |
| Height | 288 mm |
| Depth | 45 mm |
| Current Type (Input) | CC |
| Operating voltage (Min-Max) | 18-27 V |
| Housing material | aluminium |
| Number of Ring/Ring Buttons | 0 |
| Contains keyboard | Yes |
| With day/night function | Yes |
| Camera aperture angle | 119 ° |
| PTZ function (pan/tilt/zoom) | No |
| Manual adjustment camera | No |
| Imaging System | Other |
| Imaging System Ownership | Colour |
|---|---|
| Compatible with hearing aids | No |
| Colour | Black |
| Installation Depth | 32 mm |
| Impact resistance | IK08 |
| Protection Class (IP) | IP65 |
| Storage Temperature (Min-Max) | -25-70 °C |
| Halogen-free | Yes |
| Label Space/Print Area | No |
| Remote opening of the electric gate/door opener | Yes |
| Camera Type | Fixed |
| Camera viewing angle | 130 ° |
| Connected Object | Yes |
| Method of operation | Wifi network 2.4G, Bluetooth, SCS |
| App download platform | Google Play Store, App Store |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | Yes |
| Product usage function | Automatic intercoms |
| App Name | Home + Project , Home + Security |
| Programming medium | Apps |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 288 mm |
| Hearing aid compatible (EF004782) | No |
| Property picture system (EF007736) | Colour |
| Type of voltage (input voltage) (EF003033) | DC |
| Number of call buttons (EF001472) | 0 |
| Housing material (EF001596) | Aluminium |
| Contains keypad (EF007158) | Yes |
| Installation technique (EF001474) | Bus system |
| Reading strategy code (EF016238) | Yes |
| Reading strategy biometric (EF016237) | No |
| Picture system (EF003628) | Other |
| Surface mounting (EF003681) | Yes |
| Model (EF000010) | Call display |
| Suitable for outdoor installation (EF011885) | Yes |
| With housing (EF001102) | No |
| Operating voltage (EF003983) | 18 V |
| Suitable for indoor installation (EF011884) | Yes |
| Opening angle camera (EF012436) | 119 ° |
| Zoom, pan/tilt function (EF012437) | No |
| Manual adjustable camera (EF012438) | No |
| With day/night function (EF021124) | Yes |
| Depth (EF000049) | 45 mm |
| Colour (EF000007) | Black |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 127 mm |
Datasheet - PDF
