344786 BTCINO BT/2H-M. FREE C100X16E
344786
BTICINO
BT/2H-M. FREE C100X16E

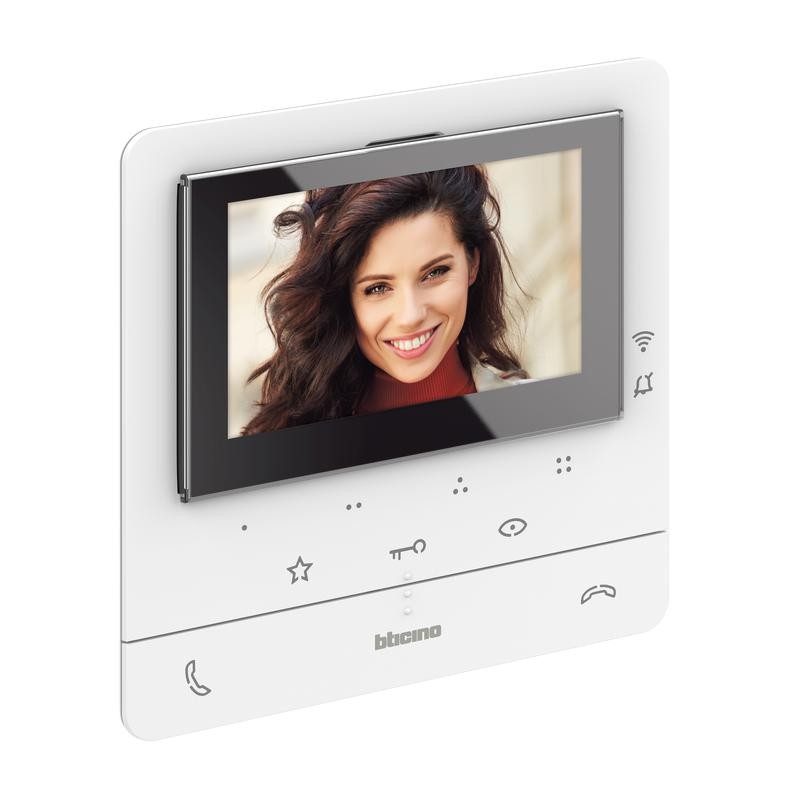

Classe 100 hands-free monitor connected 2 wires
Communication technique > Indoor station door communication
VIDEO INTERCOM CONNECTED
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲Overview
Connected 2-wire monitor / Wi-Fi hands-free with 5" color LCD screen.
Product features
- Thanks to the Wi-Fi connection, it is possible to associate the video monitor with the Home + Security App
- From the App you will be able to control the main functions of the videportero (receiving the call, opening the locks, activating the outer plate/cyclic display of the cameras, firmware update and additional activations)
- Installation can be done on the surface with the corresponding metal stand (supplied) or tabletop thanks to the tabletop stands (2 x 344692) – sold separately.
- Power supply via SCS BUS 18V to 27V
description
Connected 2-wire monitor / Wi-Fi hands-free with 5" color LCD screen. It has 2 physical buttons to control the main functions – communication response and completion – it is equipped with 3 touch buttons to control the main functions – lock opening, activation of the stair lights and activation of the outer plate/cyclic display of the cameras – plus 4 configurable touch buttons – e.g. intercom, Activation of the additional lock. The device has a side joystick to regulate: the color, brightness and contrast of the screen, the volume of the audio, the volume of the ringtone and the Wi-Fi settings. It has LEDs to indicate the status of the call and Wi-Fi. In addition, thanks to the Wi-Fi connection it is possible to pair the device to the Home + Security App (available for Android and iOS). From the App you can control the main functions of the videportero (receiving the call, opening the locks, activating the outer plate/cyclic display of the cameras, firmware update and additional activations). Installation can be done on the surface with the corresponding metal stand (supplied) or tabletop thanks to the tabletop stands (2 x 344692) – sold separately. The device, which also has a professional studio function, must be configured.Highlights
Advantages in installation
- The smartphone, connected to the Classe100X, becomes an additional virtual indoor unit
Advantages in use
- Easy installation, 2-wire system
Specific features
- Immediate replacement of an old 2-wire internal unit, with no additional work for the installer
specifications
| With video | Yes |
|---|---|
| Installation technology | Bus System |
| Type of mounting | Surface mounted (plaster) |
| Material | Plastic |
| Imaging System | PAL |
| Imaging System Ownership | Colour |
| With memory function | No |
| Hearing Safety | Yes |
| Door opening operation | Yes |
| Switching Functions | Yes |
| Hands-free | Yes |
| Function lamps | No |
| Allows connection with the smartphone | Yes |
| PTZ function (pan/tilt/zoom) | No |
| With automatic door opening | Yes |
| Colour | White |
| Interface Type | Wi-Fi |
| Outbound Call Blocking | Yes |
| Internal communication | Yes |
| Call differentiation | Yes |
| Additional Countable Device | Yes |
| Volume control | Yes |
| With touch screen | No |
| Width | 164 mm |
| Height | 165 mm |
| Depth | 20.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Installation Depth | 20.5 mm |
| Impact resistance | Not applicable |
| Protection Class (IP) | IP30 |
| Operating Temperature | 5-40 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | CC |
| Nominal Voltage | 18-27 V |
| Nominal current | 0.030-0.35 A |
|---|---|
| frequency | 0-0 Hz |
| Sound Level | 81 dB |
| Standby consumption | 30 mA |
| Antibacterial treatment | No |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 0.1-2.5 mm² |
| Label Space/Print Area | No |
| USB port | Yes |
| Equipped with waterproof plate protection | No |
| With signal lamp | No |
| Distance between vertical clamping centers | 1600-1650 mm |
| Control Mode | Wireless |
| Contains battery and/or accumulator | No |
| Adding additional unit | Yes |
| Maximum number of additional screens | 63 |
| Addressable | Yes |
| Doorman with mobile app | Yes |
| Number of Shades | 16 |
| Remote opening of the electric gate/door opener | Yes |
| Resolution | Other |
| Adjusting the screen brightness | Yes |
| Adjusting the Screen Contrast | Yes |
| Visitor Memorization Function | No |
| Camera Type | Not applicable |
| Maximum distance between hob and indoor unit | 600 m |
| Connected Object | Yes |
| Method of operation | Wifi network |
| App download platform | App Store, Google Play Store |
| Programming medium | Smartphone apps |
| Programmable | No |
| Connection Protocol Interoperability | No |
| With voice command | No |
| Possibility of connection via Internet box | Yes |
| App Name | Home + Security |
| Product usage function | Automatic intercoms |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 165 mm |
| Property picture system (EF007736) | Colour |
| Material (EF002169) | Plastic |
| Installation technique (EF001474) | Bus system |
| Mounting method (EF000003) | Surface mounted |
| Mutable call tone (EF001476) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| With video (EF001490) | Yes |
| Can be connected to smartphone (EF012450) | Yes |
| Picture system (EF003628) | PAL |
| Loudness control (EF001484) | Yes |
| Type of interface (EF006977) | Wi-Fi |
| Additional device connectable (EF001483) | Yes |
| Hands free (EF000971) | Yes |
| With memory function (EF000234) | No |
| With touch screen (EF003102) | No |
| Zoom, pan/tilt function (EF012437) | No |
| Specific call tone (EF008036) | Yes |
| IFTTT support available (EF011072) | No |
| Depth (EF000049) | 20.5 mm |
| Overhear protected (EF001215) | Yes |
| Internal communication (EF001479) | Yes |
| Operation door lock (EF001478) | Yes |
| Colour (EF000007) | White |
| Function lamps (EF001956) | No |
| Width (EF000008) | 164 mm |
| Control extra function(s) (EF001955) | Yes |
| With automatic door opener (EF001958) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
