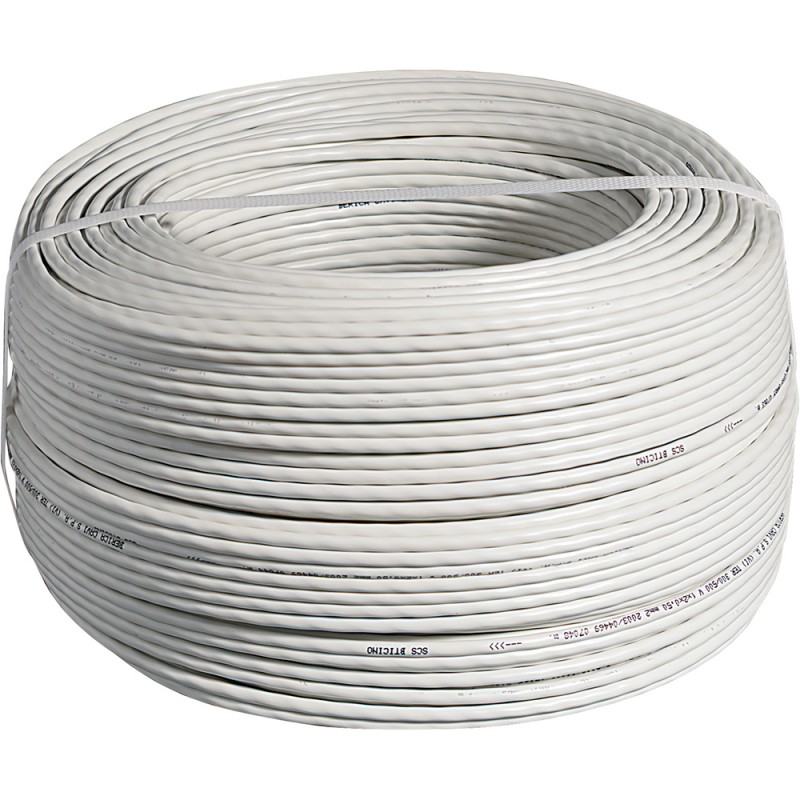

336904 BTCINO BT/2H-BUS CABLE 0,5MM2 200M

Name: 336904 BTCINO BT/2H-BUS CABLE 0,5MM2 200M
Brand: BTICINO
SKU: BTC336904
Price: 222.05 USD
Availability: OutOfStock

Code: 336904

Manufacturer: BTICINO

Description:

BT/2H-BUS CABLE 0,5MM2 200M

BT/2H-CABLE BUS 0.5MM2 200M

Bticino BUS 2 Conductor Cable (200m Coil)

2 wire cable scs white roll 200 meters

Categories:

Cables > Power cable less 1 kV, for permanent installation
BTICINO > VIDEO DOOR PHONES

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 189,67 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Conductor material	Copper
Conductor surface	Bare
Nominal cross section conductor	0.5 mm²
AWG size	20
Nominal cross section conductor (AWG)	20 kcmil
Diameter conductor	1.7 mm
Conductor category	Class 2 = stranded
Number of cores	2
Twisted cores	Yes
Material core insulation	Other
Specification core insulation	Other
Core identification	Colour
Core colour	White
With protective conductor	No
Max. permitted conductor temperature	70 °C
Screen	No
Drain wire	No

Protective barrier	None
Armouring/reinforcement	None
Material outer sheath	Polyvinyl chloride (PVC)
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	White
Low smoke according to EN IEC 61034-2	No
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Oil resistant according to EN IEC 60811-404	No
Low temperature resistant according to EN 60811-504+505+506	Yes
Outer diameter approximate	4.8 mm
Permitted cable outer temperature during assembling/handling	-15-70 °C
Permitted cable outer temperature after assembling without vibration	-15-70 °C
Nominal voltage U0	400 V
Nominal voltage U	400 V
Storage temperature	-15-70 °C

ETIM for 336904 Cable (EC003248)

Feature nameReaction-to-fire according to EN 13501-6: Smoke production (EF011578)

Feature valueNone

Feature nameReaction-to-fire according to EN 13501-6: Class (EF011577)

Feature valueEca

Feature nameLow temperature resistant according to EN 60811-504+505+506 (EF009771)

Feature valueYes

Feature nameOil resistant according to EN IEC 60811-404 (EF009770)

Feature valueNo

Feature nameConductor surface (EF010804)

Feature valueBare

Feature nameTwisted cores (EF012612)

Feature valueYes

Feature nameSpecification material outer sheath (EF011806)

Feature valuePolyethylene (PE)

Feature nameSpecification core insulation (EF011805)

Feature valueOther

Feature nameColour outer sheath (EF001618)

Feature valueWhite

Feature nameLow smoke according to EN IEC 61034-2 (EF003799)

Feature valueNo

Feature nameNominal voltage U (EF001615)

Feature value400 V

Feature nameNominal voltage U0 (EF001790)

Feature value400 V

Feature nameNumber of cores (EF001792)

Feature value2

Feature nameScreen (EF001791)

Feature valueNo

Feature nameCore identification (EF000067)

Feature valueColour

Feature nameMaterial core insulation (EF000061)

Feature valueOther

Feature nameNominal cross section conductor (EF000060)

Feature value0.5 mm²

Feature nameConductor material (EF001622)

Feature valueCopper

Feature nameDiameter conductor (EF001621)

Feature value1.7 mm

Feature nameOuter diameter approx. (EF003921)

Feature value4.8 mm

Feature nameDrain wire (EF001029)

Feature valueNo

Feature nameCore colour (EF001703)

Feature valueWhite

Feature nameMaterial outer sheath (EF001625)

Feature valuePolyvinyl chloride (PVC)

Feature nameMax. conductor temperature (EF003803)

Feature value70 °C

Feature nameProtective barrier (EF003804)

Feature valueNone

Feature nameAWG size (EF011789)

Feature value20

Feature nameArmouring/reinforcement (EF001683)

Feature valueNone

Feature namePermitted cable outer temperature after assembling without vibration (EF001686)

Feature value-15 °C

Feature nameWith protective conductor (EF007468)

Feature valueNo

Feature namePermitted cable outer temperature during assembling/handling (EF001685)

Feature value-15 °C

Feature nameConductor category (EF001632)

Feature valueClass 2 = stranded

Feature nameNominal cross section conductor (AWG) (EF011790)

Feature value20 kcmil

DATASHEET - PDF

Title

Size

Type

336904 EN_336904.pdf

74 Kbytes

PDF CATALOGUE BTICINO EN

19 Mbytes
