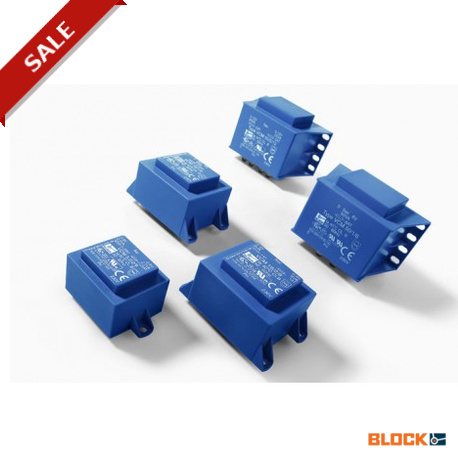

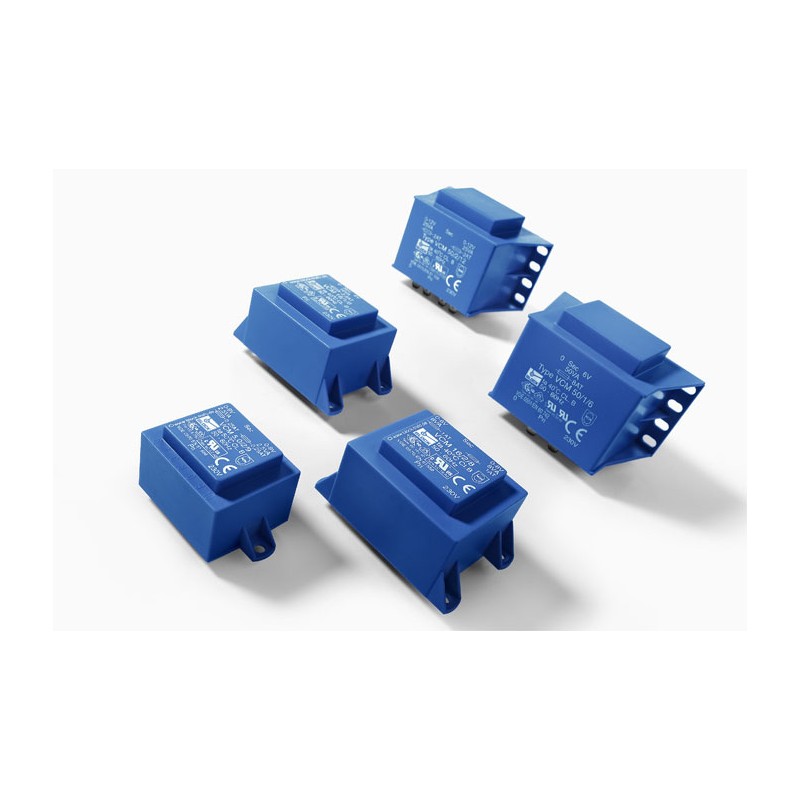

BLOCK VCM 36/2/6 VCM 36/2/6 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

VCM 36/2/6 BLOCK PCB Transformers

Reference: VCM 36/2/6

Manufacturer: BLOCK

Description:

PCB Transformers
PCB Transformers VCM 36/2/6

Categories:

  • BLOCK > transformers

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 21,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO



General Data

Rated input voltage 230 Vac Rated output voltage 6 ‑ 2 x 24 Vac Rated power 5 ‑ 50 VA Insulation class B Maximum ambient temperature 40 ‑ 50 °C Efficiency up to 87 % Degree of protection IP 00

Advantages

Minimum size at high output Also with dual output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material Additional mounting option with tabs on the housing

Standards

Mains transformerto: VDE 0570 Teil 2‑1, DIN EN 61558‑2‑1, EN 61558‑2‑1, IEC 61558‑2‑1, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part 2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformer to: VDE 0570 Part 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66

Approvals

ENEC 10 (VDE), UL 5085‑1/‑2, CSA 22.2 No.66 As a mains transformer for adjustment of the voltage and simple electrical isolation. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage. Weight: 0.19 kg
