Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

Images are for illustrative purposes only. Please refer to data sheet for details.

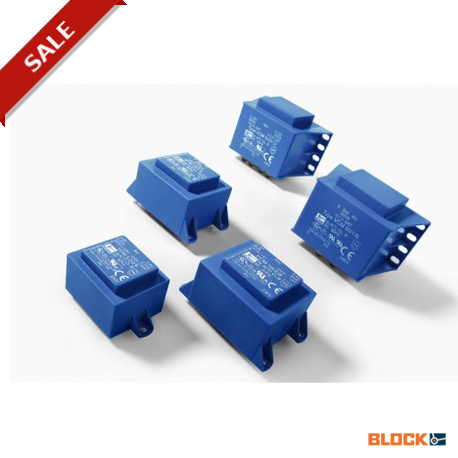

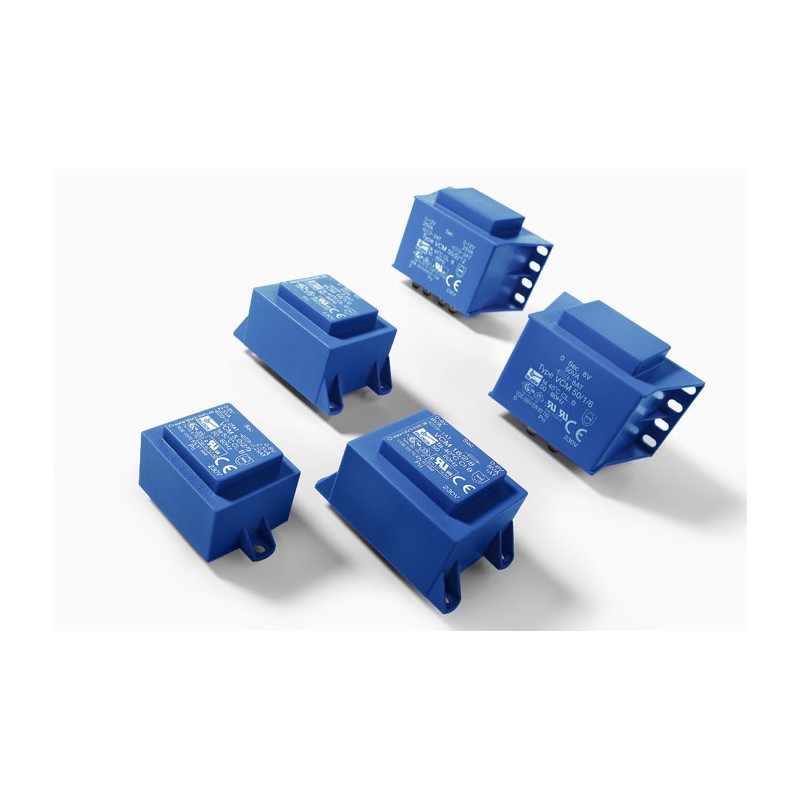

Reference: VCM 36/2/18
Manufacturer: BLOCK
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
LAST VIEWED
General Data Rated input voltage 230 Vac Rated output voltage 6 ‑ 2 x 24 Vac Rated power 5 ‑ 50 VA Insulation class B Maximum ambient temperature 40 ‑ 50 °C Efficiency up to 87 % Degree of protection IP 00 Advantages Minimum size at high output Also with dual output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material Additional mounting option with tabs on the housing Standards Mains transformerto: VDE 0570 Teil 2‑1, DIN EN 61558‑2‑1, EN 61558‑2‑1, IEC 61558‑2‑1, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part 2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformer to: VDE 0570 Part 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals ENEC 10 (VDE), UL 5085‑1/‑2, CSA 22.2 No.66 As a mains transformer for adjustment of the voltage and simple electrical isolation. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
