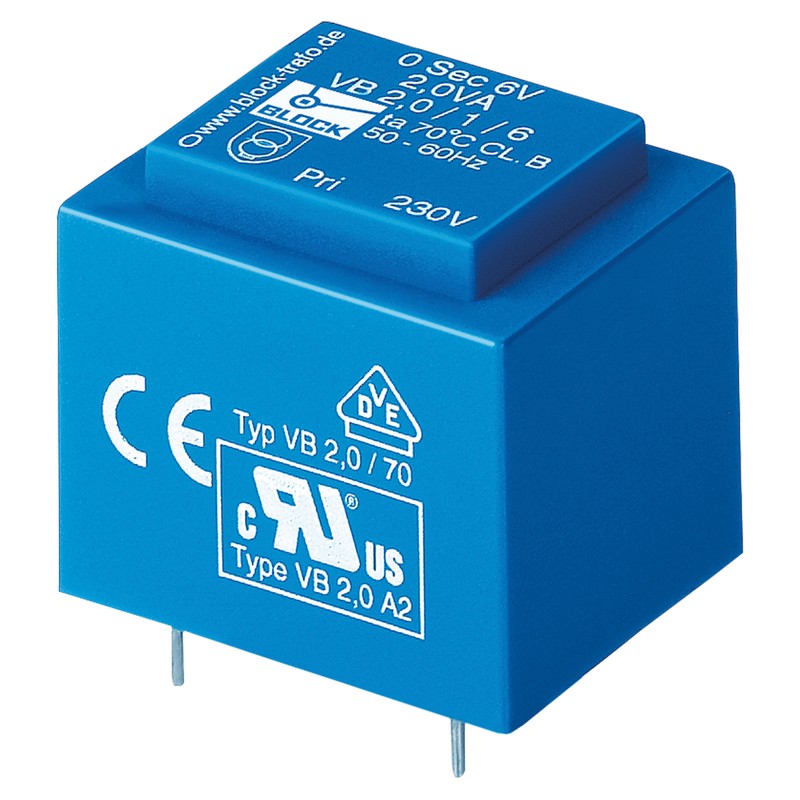

VB 2,8/1/24 BLOCK PCB Transformers
VB 2,8/1/24
BLOCK
PCB Transformers
PCB Transformers VB 2,8/1/24
Short circuit proof PCB transformer, safety isolating transformer
transformers
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The PCB transformers of the VB series provide galvanic isolation of the primary circuit from the secondary circuit and are designed with a special construction to ensure absolute short-circuit safety. Additionally, they meet all requirements for supplying SELV (Safety Extra Low Voltage) circuits.
›Safety isolating transformer according to EN (IEC) 61558-2-6
›Minimal size with high performance
›Absolutely short-circuit proof
›Self-extinguishing encapsulation material
| Product | Short circuit proof PCB transformer, safety isolating transformer |
| Order number | VB 2,8/1/24 |
| Series | VB |
| Power | 2.8 VA |
| Input | 230 V |
| Output | 24 V • 0.117 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 1.4 W |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 57 % |
General
| Short circuit proof | inherently short-circuit proof |
| Switching group | Ii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 70 °C / -4 °F to 158 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 1 |
Electrical Connections
| Input terminal | Pin |
| Output terminal | Pin |
Size and Weight
| Width | 27.3 mm / 1.07 in |
| Height | 34 mm / 1.34 in |
| Depth | 32.3 mm / 1.27 in |
| Weight | 0.14 kg / 0.309 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| VB 2,8/1/24 VB 2,8/1/24 EN_VB 2,8_1_24.pdf | 348 Kbytes |
|
