BLOCKUSTE 40/2x12 BLOCK Control Transformers USTE 40/2x12

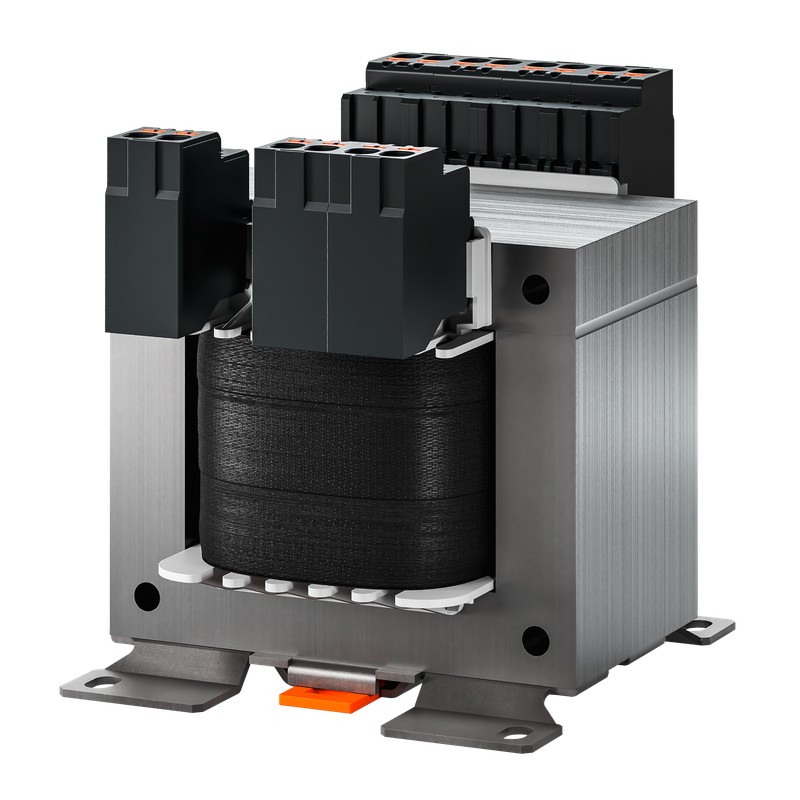

BLOCK USTE 40/2x12 USTE 40/2x12 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

USTE 40/2x12 BLOCK Control Transformers USTE 40/2x12

Reference: USTE 40/2x12

Manufacturer: BLOCK

Description:

Control Transformers USTE 40/2x12
Control- and safety isolating transformer

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 69,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The control transformers of the USTE series are designed for universal voltage adjustment and safe galvanic isolation of the primary circuit from the secondary circuit. The unique BLOCK IMPEX vacuum impregnation process provides excellent protection against external influences while reducing noise levels. Installation is simple and quick thanks to the innovative push-in terminal technology.

›Control and safety isolating transformer according to EN (IEC) 61558-2-2 and EN (IEC) 61558-2-6

›Very good inrush behavior due to reduced inrush currents

›High power density through a compact design concept

›Touch-protected connection terminals according to UVV BGV A3

›With combination base plate for screw and rail mounting

ProductControl- and safety isolating transformer
Order numberUSTE 40/2x12
SeriesUSTE
Power40 VA
Input208 V / 230 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V / 500 V / 525 V / 550 V / 575 V / 600 V
Output2 x 12 V • 1.67 Aac
Phases1
Frequency range50 Hz to 60 Hz
Short-Circuit Losses3.44 W
No-Load Losses3.06 W
Short-Term Power / instantaneous output100 VA
EN Insulation classB (130°C)
UL Insulation classclass 130
Duty Cycle100 %
Wire materialCopper
Efficiency86 %
General
Short circuit proofnot short-circuit proof
Switching groupIIii0
Cooling typeAN
Environment
Ambient temperature-20 °C to 40 °C / -4 °F to 104 °F
Max. installation height2,000 m / 6,562 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Overvoltage categoryIII
Degree of contamination1
Electrical Connections
Input terminalPush-in terminal
Output terminalPush-in terminal
Terminal PEFlat plug connection
Size and Weight
Width84 mm / 3.31 in
Height98 mm / 3.86 in
Depth99 mm / 3.9 in
Weight1.4 kg / 3.086 lbs
General
TS35 rail mounting possibleJa
