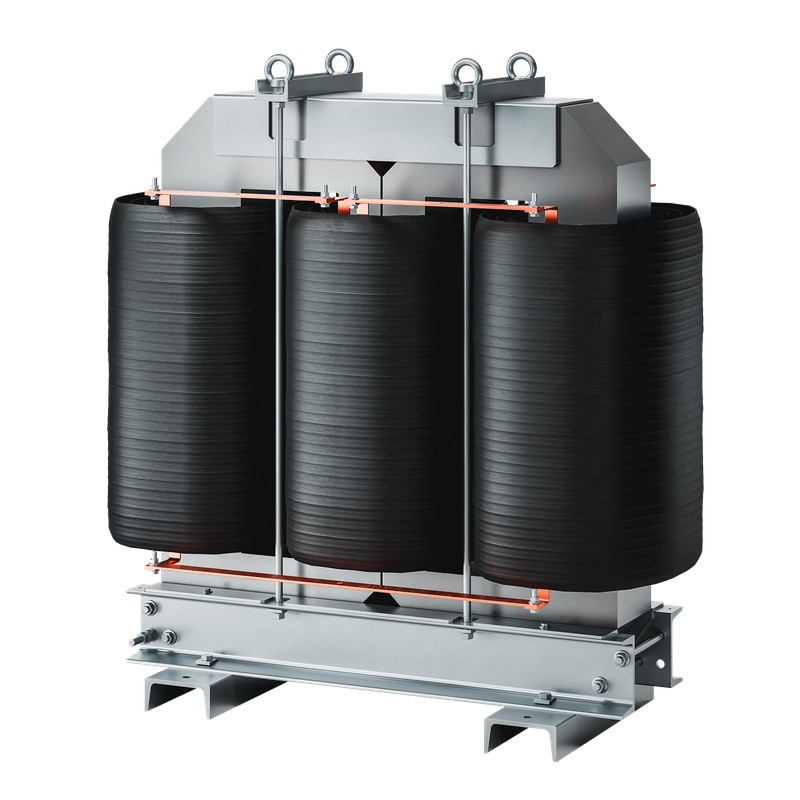

TT3-A200-4040-0 BLOCK Isolating Transformer
TT3-A200-4040-0
BLOCK
Isolating Transformer
Isolating Transformer TT3-A200-4040-0
Isolating transformer, three-phase
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The isolating transformers of the TT3-A series ensure safe galvanic isolation of the primary circuits from the secondary circuits. Our unique BLOCK IMPEX vacuum impregnation process provides excellent protection against external influences while reducing noise levels. The transformers stand out with high performance ranges and low core losses.
›Isolating transformer according to EN (IEC) 61558-2-4
›Excellent dissipation of heat losses through optimally arranged cooling channels within the windings
›Integrated crane eyelets
›Easily accessible terminals for simple installation in electrical systems
›Transformers can be customized with individual voltages upon request
| Product | Isolating transformer, three-phase |
| Order number | TT3-A200-4040-0 |
| Series | TT3-A |
| Power | 200,000 VA |
| Input | 3 x 400 V |
| Output | 3 x 400 V • 289 Aac |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 4020 W |
| No-Load Losses | 760 W |
| Short circuit voltage uk | 4 % |
| EN Insulation class | F (155°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Wire material | Aluminum |
| Efficiency | 97.7 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Dyn5 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Screw terminal |
Size and Weight
| Width | 900 mm / 35.43 in |
| Height | 1000 mm / 39.37 in |
| Depth | 400 mm / 15.75 in |
| Weight | 575 kg / 1267.657 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| TT3-A200-4040-0 TT3-A200-4040-0 EN_TT3-A200-4040-0.pdf | 421 Kbytes |
|
