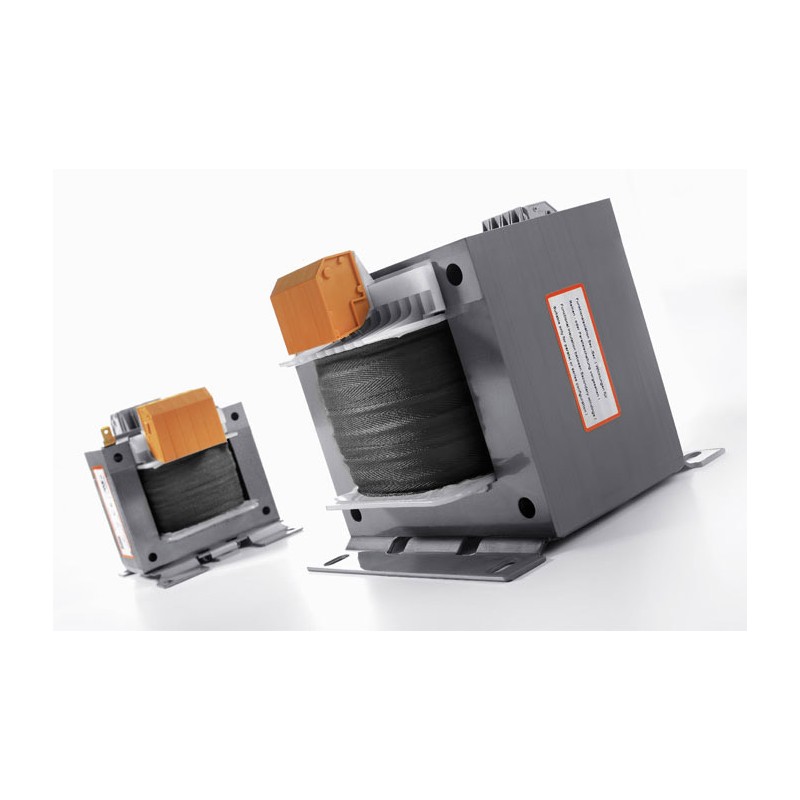

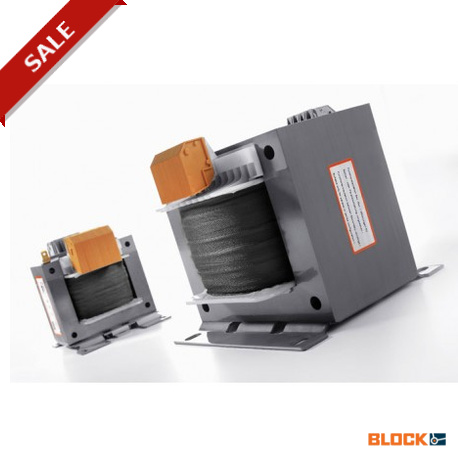

STEU 1000/23 BLOCK Control Transformers

General Data Rated input voltage 230 and 400 Vac Rated output voltage 24 ‑ 230 Vac Rated power 63 ‑ 2500 VA Insulation class B Maximum ambient temperature 40 °C Efficiency up to 94 % Degree of protection IP 00 Advantages Dual input voltage 230 and 400 Vac Very good switch‑on behaviour thanks to reduced starting currents High performance for the volume thanks to compact design Primary side ±15 V tappings for voltage adjustment Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation Quick to cable up thanks to the use of spring‑clamp terminals Contact protected screw connection terminals complying with UVV BGV A3 Simple mounting thanks to robust metal footplate with oval slots Up to 250 VA with combination footplate for bolted and rail mounting Standards Control transformerto: VDE 0570 Teil 2‑2, DIN EN 61558‑2‑2, EN 61558‑2‑2, IEC 61558‑2‑2, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformerto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals UL 5085‑1/‑2, CSA 22.2 No.66 As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed. As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100. As a safety transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
