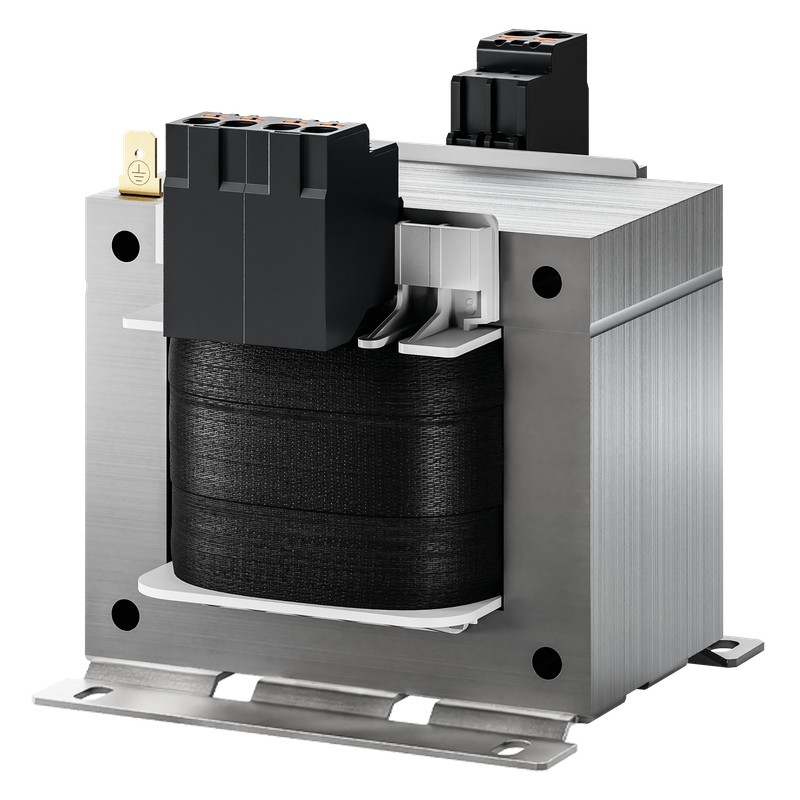

STE 500/4/24 BLOCK Control Transformers

Reference: STE 500/4/24

Manufacturer: BLOCK

Description:

Control Transformers
Control Transformers STE 500/4/24
Control- and safety isolating transformer

Categories:

  • BLOCK > transformers

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 140,14 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

The control transformers of the STE series ensure safe galvanic isolation of the primary circuit from the secondary circuit. The unique BLOCK IMPEX vacuum impregnation process provides excellent protection against external influences while reducing noise levels. Installation is simple and quick thanks to the innovative push-in terminal technology.

›Control and safety isolating transformer according to EN (IEC) 61558-2-2 and EN (IEC) 61558-2-6

›Very good inrush behavior due to reduced inrush currents

›High power density through a compact design concept

›Primary side ±5% taps for voltage adjustment

›Touch-protected connection terminals according to UVV BGV A3

ProductControl- and safety isolating transformer
Order numberSTE 500/4/24
SeriesSTE
Power500 VA
Input380 V / 400 V / 420 V
Output24 V • 20.8 Aac
Phases1
Frequency range50 Hz to 60 Hz
Short-Circuit Losses28.39 W
No-Load Losses17.74 W
Short-Term Power / instantaneous output2,000 VA
Short circuit voltage uk4.1 %
EN Insulation classB (130°C)
UL Insulation classclass 130
Duty Cycle100 %
Wire materialCopper
Efficiency91.6 %
General
Short circuit proofnot short-circuit proof
Switching groupIi0
Cooling typeAN
Environment
Ambient temperature-20 °C to 40 °C / -4 °F to 104 °F
Max. installation height2,000 m / 6,562 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Overvoltage categoryIII
Degree of contamination1
Electrical Connections
Input terminalPush-in terminal
Output terminalPush-in terminal
Terminal PEFlat plug connection
Size and Weight
Width120 mm / 4.72 in
Height121 mm / 4.76 in
Depth124 mm / 4.88 in
Weight6.5 kg / 14.33 lbs
