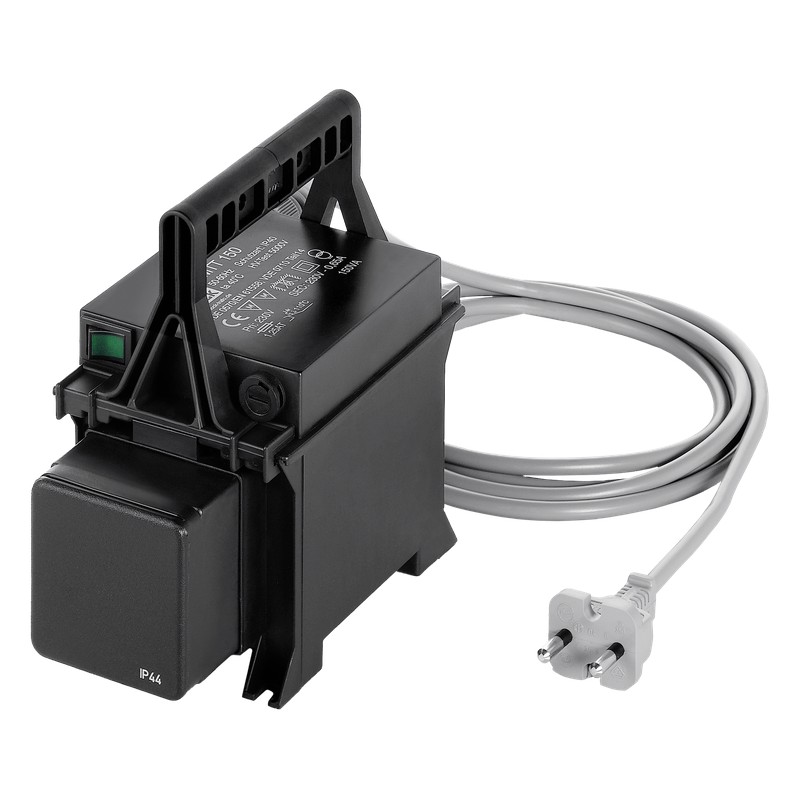

SMTT 150 BLOCK Isolating Transformer
SMTT 150
BLOCK
Isolating Transformer
Isolating Transformer SMTT 150
Interference suppressing isolating transformer
transformers
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The isolating transformers of the SMTT series ensure safe galvanic isolation of the primary circuit from the secondary circuit and minimize mains interference. The transformers feature low leakage current, high insulation resistance, and good attenuation properties against high-frequency interference and impulses. The series offers a very high protection class.
›Safe galvanic isolation
›Low leakage current and high insulation resistance
›Good attenuation against radio frequency interference and pulses
›Low magnetic 50 Hz leakage field
›Integrated short-circuit and overload protection
›Very good moisture protection and low noise thanks to XtraDenseFill resin encapsulation
›High degree of protection
›Carry handle, mains cable with safety plug, shockproof socket for portable application
| Product | Interference suppressing isolating transformer |
| Order number | SMTT 150 |
| Series | SMTT |
| Power | 150 VA |
| Input | 230 V |
| Output | 230 V • 0.65 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | B (130°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 90 % |
General
| Short circuit proof | conditionally short-circuit proof |
| Switching group | Ii0 |
| Shield winding | Yes |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP40 |
| Protection class (prepared) | II |
| Overvoltage category | II |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Protective contact plug |
| Output terminal | Protective contact socket |
Size and Weight
| Width | 93.5 mm / 3.68 in |
| Height | 160 mm / 6.3 in |
| Depth | 180 mm / 7.09 in |
| Weight | 3.51 kg / 7.738 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| SMTT 150 SMTT 150 EN_SMTT 150.pdf | 337 Kbytes |
|
