BLOCKSFB 400/480 BLOCK Sine Filter

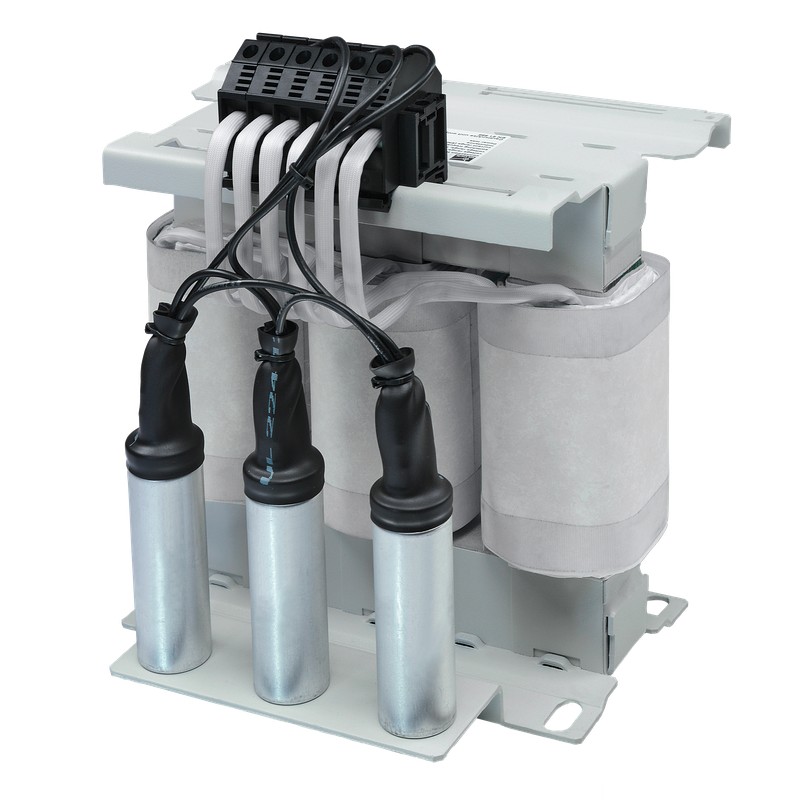

BLOCK SFB 400/480 SFB 400/480 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SFB 400/480 BLOCK Sine Filter

Reference: SFB 400/480

Manufacturer: BLOCK

Description:

Sine Filter
Sine Filter SFB 400/480

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 7.990,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Prevention of overvoltages on the motor

›Long cable lengths possible

›Reduction in motor noise

›Reduction in line-borne and field-borne emitted interference

›Reduction in motor losses

›Very good corrosion protection and low noise thanks to vacuum impregnation

ProductSine filter
Order numberSFB 400/480
SeriesSFB
Inductance3x 0.14 mH
Rated current3x 480 Aac
Linear current3x 528 Aac
Rated voltage range0 V to 520 V
Rated voltage400 V
Phases3
Frequency rangeto 60 Hz
Switching frequency rangeto 8 kHz
Short circuit voltage9,1% @ 400 V
Motor or converter power315 kW / 422.42 HP
EN Insulation classH (180°C)
UL Insulation classclass 180
Duty Cycle100 %
Power loss1550.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Switching groupIII0
Environment
Ambient temperature-10 °C to 40 °C / 14 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalFlat copper connection
Output terminalFlat copper connection
Terminal PEBolt connection
Size and Weight
Width720 mm / 28.35 in
Height430 mm / 16.93 in
Depth360 mm / 14.17 in
Weight242 kg / 533.518 lbs
