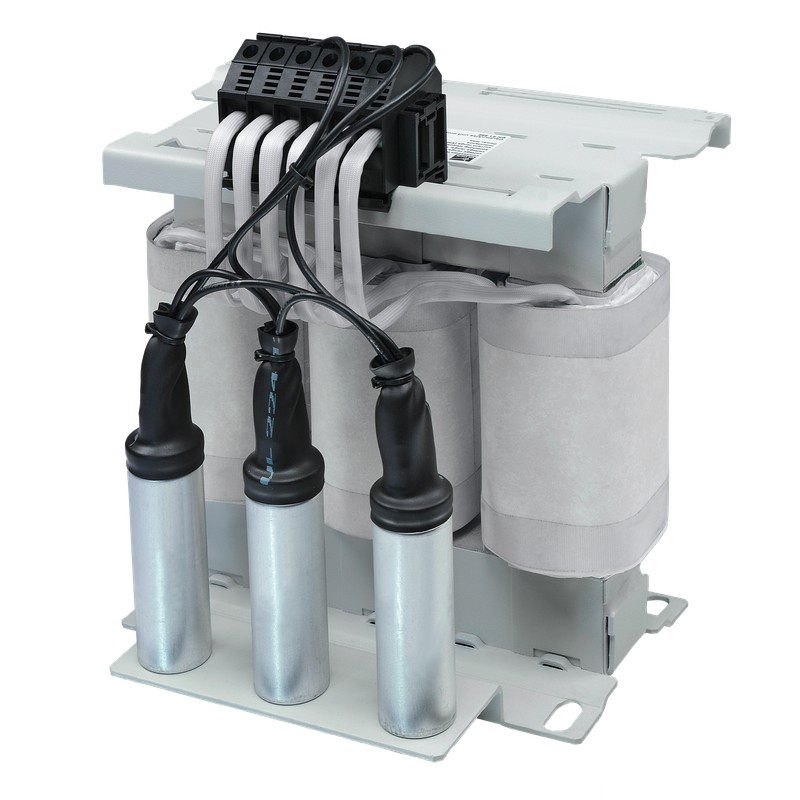

SFB 400/16,5 BLOCK Sine Filter
SFB 400/16,5
BLOCK
Sine Filter
Sine Filter SFB 400/16,5
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Prevention of overvoltages on the motor
›Long cable lengths possible
›Reduction in motor noise
›Reduction in line-borne and field-borne emitted interference
›Reduction in motor losses
›Very good corrosion protection and low noise thanks to vacuum impregnation
| Product | Sine filter |
| Order number | SFB 400/16,5 |
| Series | SFB |
| Inductance | 3x 3.07 mH |
| Rated current | 3x 16.5 Aac |
| Linear current | 3x 24.8 Aac |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 400 V |
| Phases | 3 |
| Frequency range | to 150 Hz |
| Switching frequency range | to 8 kHz |
| Short circuit voltage | 6,9% @ 400 V |
| Motor or converter power | 7.5 kW / 10.06 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Power loss | 110.00 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | III0 |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 190 mm / 7.48 in |
| Height | 195 mm / 7.68 in |
| Depth | 160 mm / 6.3 in |
| Weight | 9.5 kg / 20.944 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| BLOCK-SFB400165-SFB 400/16,5 | 952 Kbytes |
|
