BLOCKelectrical stabilizers filtersSFA 400/6 BLOCK Sine Filter

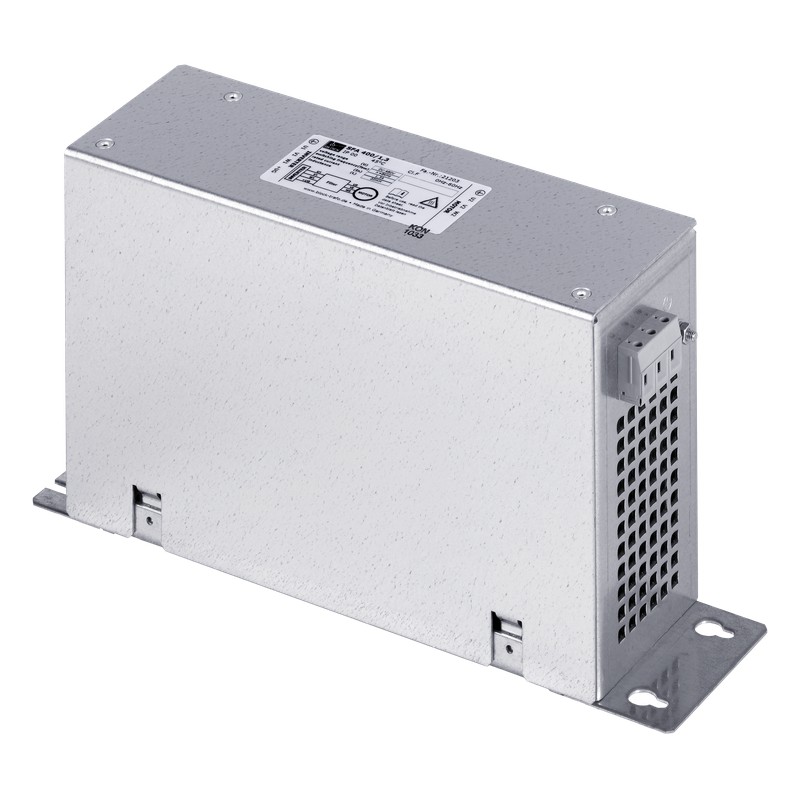

BLOCK SFA 400/6 SFA 400/6 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SFA 400/6 BLOCK Sine Filter

Reference: SFA 400/6

Manufacturer: BLOCK

Description:

Sine Filter
Sine Filter SFA 400/6
All-pole sine filter

Categories:

  • BLOCK > electrical stabilizers filters

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 516,84 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›Prevention of overvoltages on the motor

›Long cable lengths possible

›Reduction in motor noise

›Minimisation of bearing currents

›Minimisation of leakage currents (is beneficial in the event of incorrect RCD tripping)

›Reduction in line-borne and field-borne emitted interference: can be omitted from shielded cables, where necessary

›Reduction of motor losses

ProductAll-pole sine filter
Order numberSFA 400/6
SeriesSFA
Inductance3x 4.5 mH
Rated current3x 6 Aac
Linear current3x 9 Aac
Rated voltage range0 V to 480 V
Rated voltage400 V
Phases3
Frequency range5 Hz to 60 Hz
Switching frequency rangeto 16 kHz
Motor or converter power2.2 kW / 2.95 HP
EN Insulation classH (180°C)
UL Insulation classclass 180
Duty Cycle100 %
Power loss49.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Switching groupIII0
Environment
Ambient temperature-10 °C to 45 °C / 14 °F to 113 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP20
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEBolt connection
Size and Weight
Width290 mm / 11.42 in
Height170 mm / 6.69 in
Depth80 mm / 3.15 in
Weight8.1 kg / 17.857 lbs
